THL 3-4812WI

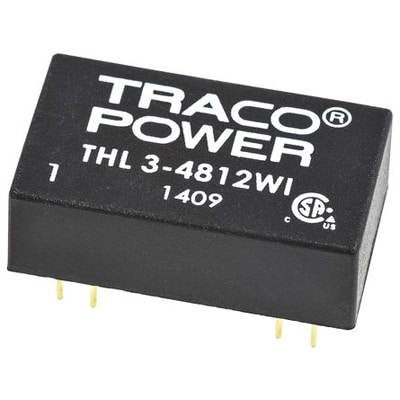

DC/DC converter,18-75Vin,12Vout 250mA 3W | TRACO Power THL 3-4812WI
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the THL 3-4812WI by Traco Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

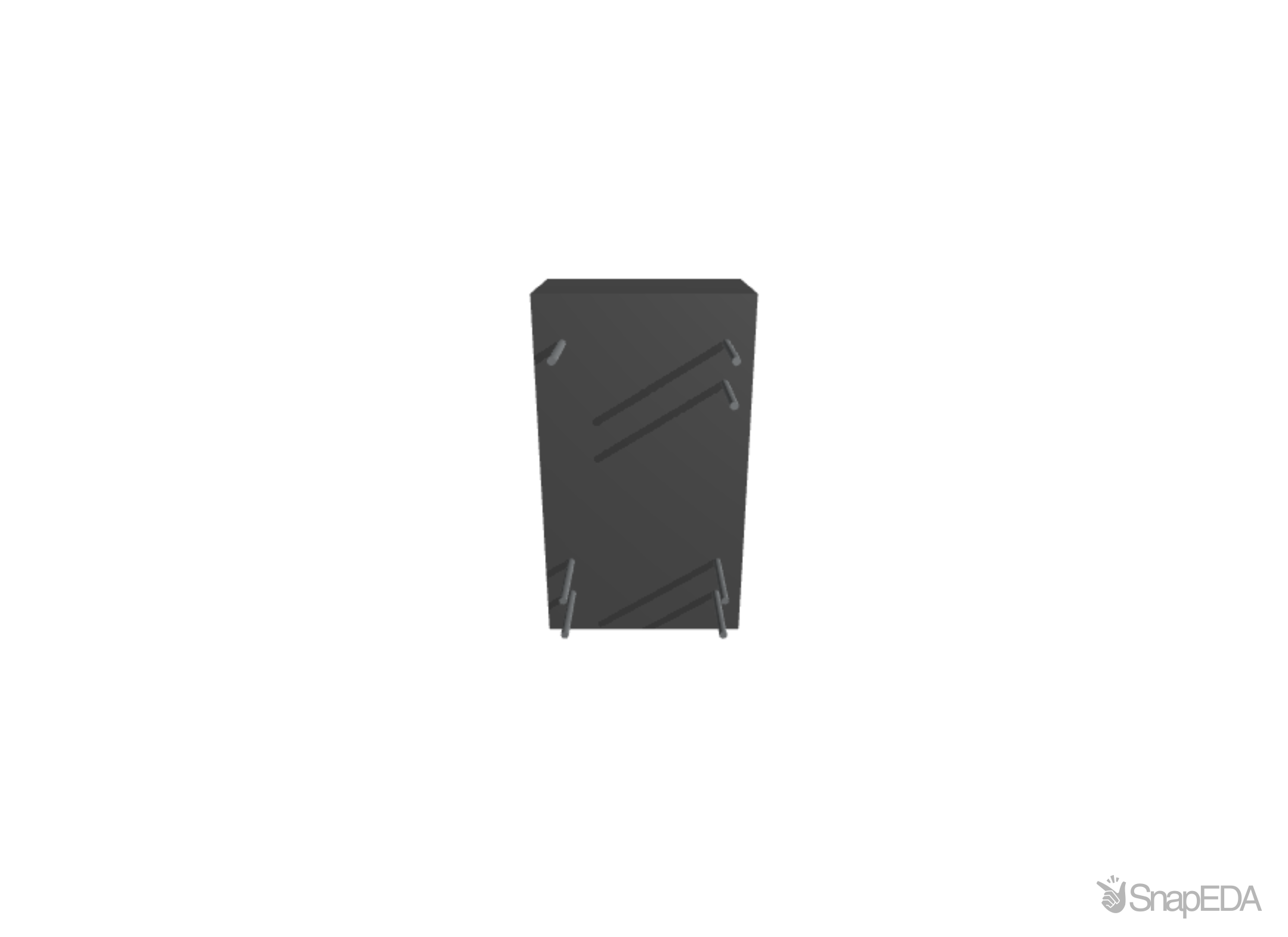

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the THL 3-4812WI
| Part Name | THL 3-4812WI |
| Manufacturer | Traco Power |
| Category | Power Products |
| Number of Outputs | single |
| Product Width | 13.7 |
| GTIN | 7613441021898 |
| Mounting Type | PCB Mount |
| Adjustable output? | No |
| Isolation Voltage Input and Output (V) | 1500 VDC |
| Vout | 12 |
| Insulation System | Functional Insulation |
| REACH | Yes |
| Product Height | 8.0 |
| Efficiency | 80.0 |
| Housing Type | Plastic Case |
| Remote on-off function? | Yes |
| Product Length | 23.8 |
| ESD Sensitive | No |
| Iout | 250 |
| Warranty Period | 3-year |
| Temperature Range Max. | 85 |
| Comformity | https://www.tracopower.com/ch/conformity-regulatory |
| Footprint Type | DIP16 |
| RoHS | Yes |
| Life Cycle Status | Not Recommended for New Designs |
| Power | 3.0 |
| Family | DC/DC Converter isolated, regulated |
| Series Name | THL 3WI |
| Lifecycle Status | Not recommended for new designs |
| Vin | 18-75 |
| high_runner | TRUE |
| Weight | 5.4 |
| Temperature Range Min. | -40 |
| Connection Type | THD (Through-Hole Device) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
