THN 15-2421N
15 Watt DC/DC converter, industrial, 2:1 input, optimized design, encpasulated, 1.0" x 1.0" metal package
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the THN 15-2421N by Traco Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

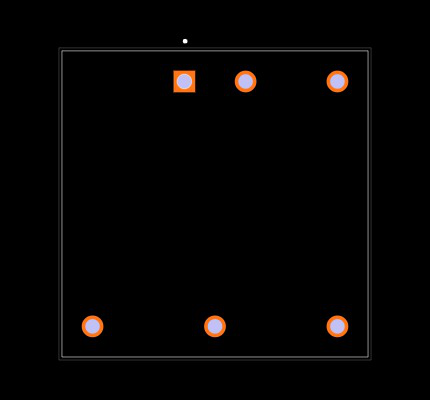

Footprint
No web preview
This Footprint is Available for

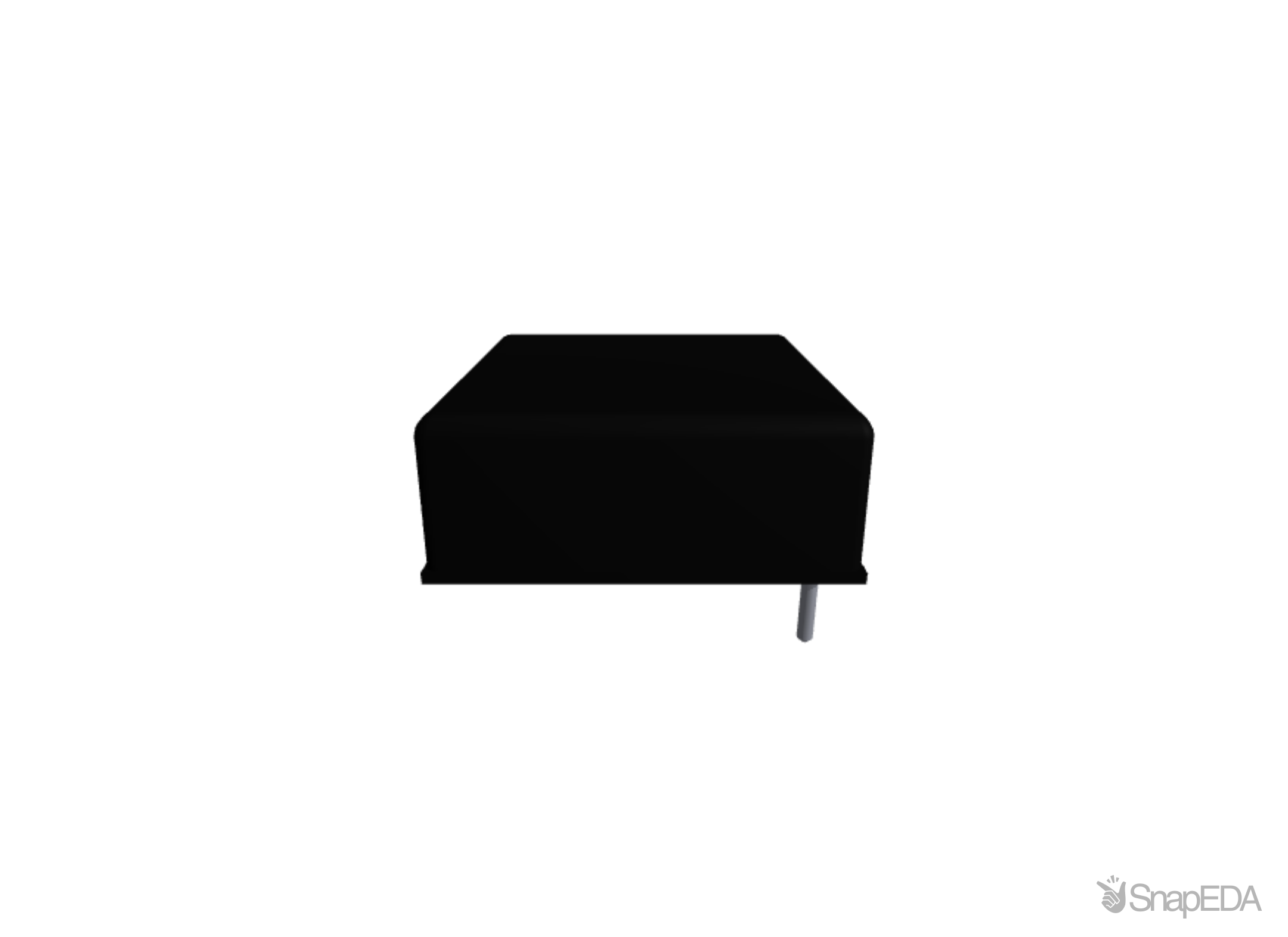

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the THN 15-2421N
| Part Name | THN 15-2421N |
| Manufacturer | Traco Power |
| Category | Power Products |
| Number of Outputs | dual |
| Product Width | 25.4 |
| GTIN | 7613441025353 |
| Mounting Type | PCB Mount |
| Adjustable output? | No |
| Isolation Voltage Input and Output (V) | 1600 VDC |
| Power | 15.0 |
| Insulation System | Functional Insulation |
| REACH | Yes |
| Product Height | 9.9 |
| Efficiency | 86.0 |
| Compatible Accessories | TCK-078,THN-HS1,THN-HS2,THN-HS3,THN-HS4 |
| Housing Type | Metal Case |
| Remote on-off function? | Yes |
| Product Length | 25.4 |
| ESD Sensitive | No |
| Iout | 1500/1500 |
| Warranty Period | 3-year |
| Temperature Range Max. | 88 |
| Comformity | https://www.tracopower.com/ch/conformity-regulatory |
| Footprint Type | 1" x 1" |
| RoHS | Yes |
| Vout | ±5 |
| Family | DC/DC Converter isolated, regulated |
| Series Name | THN 15N |
| Lifecycle Status | Active |
| Vin | 18-36 |
| high_runner | TRUE |
| Weight | 16.5 |
| Temperature Range Min. | -40 |
| Connection Type | THD (Through-Hole Device) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
