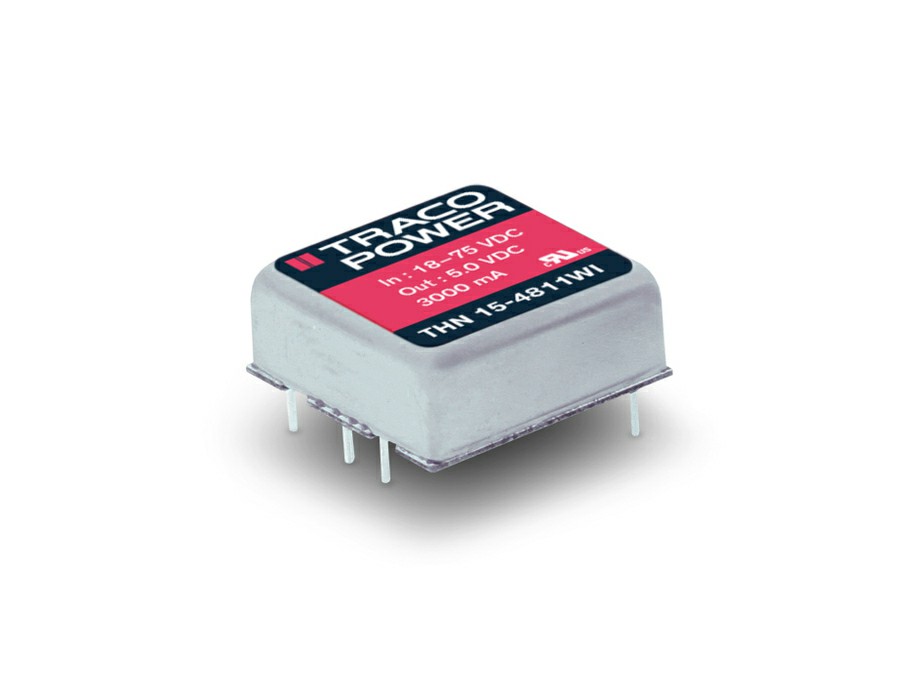

THN 15-4811WI
15 Watt DC/DC converter, industrial, 4:1 input, encpasulated, 1" x 1" metal package
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the THN 15-4811WI by Traco Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

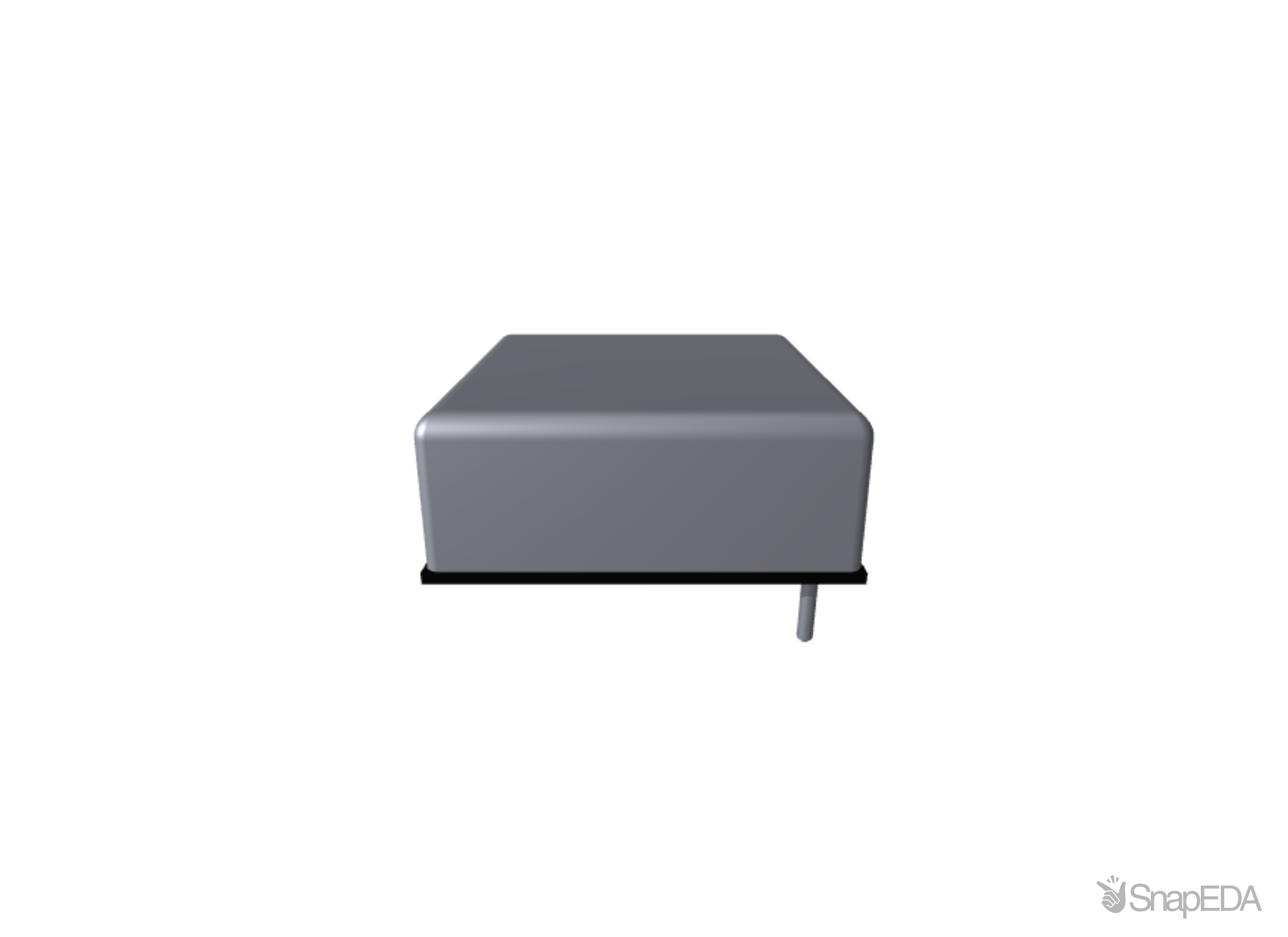

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the THN 15-4811WI
| Part Name | THN 15-4811WI |
| Manufacturer | Tracopower |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Input Voltage Nominal (V) | 48 V dc |
| Isolation Voltage (V) | 1.6 (kV dc) |
| Output Current (A) | 3 (A) |
| Mounting Type | Through Hole |
| Package | Encapsulated |
| Width | 25.4 (mm) |
| Series | THN 15WI |
| Input Voltage Range (V) | 18 → 75 V dc |
| Isolated | Yes |
| Efficiency | 86 (%) |
| Depth | 9.9 (mm) |
| Maximum Temperature | +85 (°C) |
| Length | 25.4 (mm) |
| Minimum Temperature | -40 (°C) |
| Power Rating | 15 (W) |
| Output Voltage (V) | 5 (V dc) |
No issues have been reported for the THN 15-4811WI
