THN 30-4811WIR
30 Watt DC/DC converter, railway, 4:1 input, regulated, 3000VDC isolation, encapsulated, 1”x1” metal enclosure
Availability: Out of Stock
Package Type: NON-STANDARD-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the THN 30-4811WIR by Traco Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

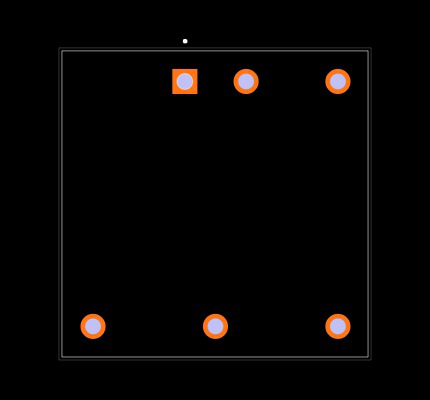

Footprint
No web preview
This Footprint is Available for

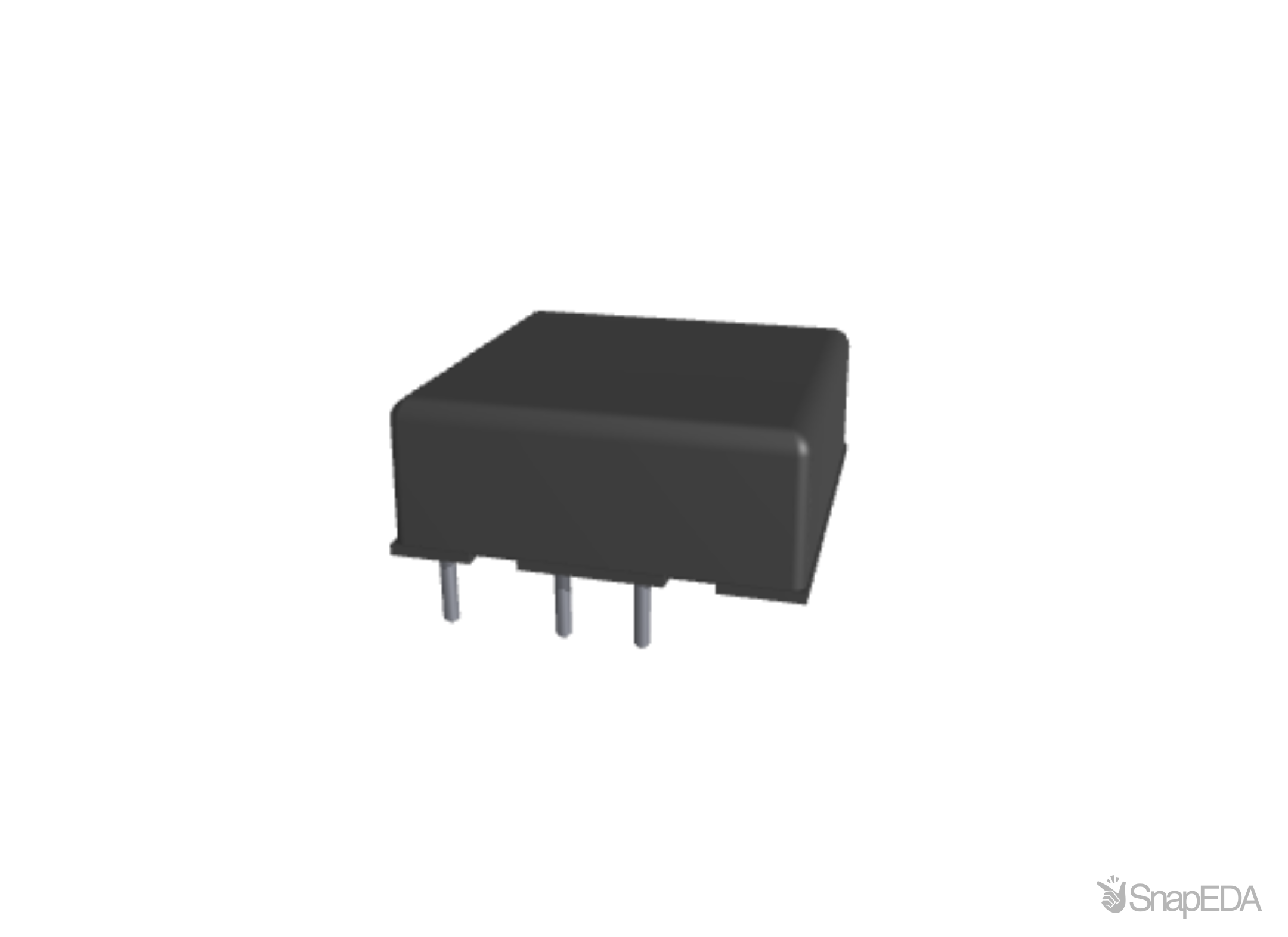

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the THN 30-4811WIR
| Part Name | THN 30-4811WIR |
| Manufacturer | Traco Power |
| Category | Electronic Components |
| Product Length | 25.4 |
| Product Width | 25.4 |
| GTIN | 7613441066158 |
| ESD Sensitive | No |
| Isolation Voltage Input and Output (V) | 2250 VDC |
| Power | 30.0 |
| Insulation System | Functional Insulation |
| REACH | Yes |
| Product Height | 9.9 |
| Efficiency | 90.0 |
| Compatible Accessories | TCK-070,TCK-097,THN-HS2,THN-HS3,THN-HS4 |
| Housing Type | Metal Case |
| Family | DC/DC Converter isolated, regulated |
| Remote on-off function? | Yes |
| Number of Outputs | single |
| Adjustable output? | Yes |
| Iout | 6000 |
| Warranty Period | 3-year |
| Temperature Range Max. | 105 |
| Comformity | https://www.tracopower.com/ch/conformity-regulatory |
| Footprint Type | 1" x 1" |
| RoHS | Yes |
| Vout | 5.1 |
| Mounting Type | PCB Mount |
| Series Name | THN 30WIR |
| Lifecycle Status | Active |
| Vin | 18-75 |
| high_runner | TRUE |
| Weight | 18.0 |
| Temperature Range Min. | -40 |
| Connection Type | THD (Through-Hole Device) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the THN 30-4811WIR
