TJ-100-28
SnapVerified

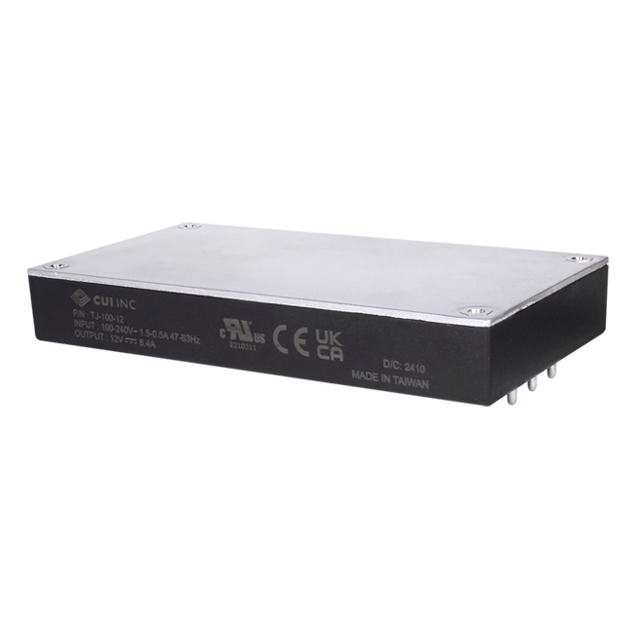

100 W, 90 ~ 264 Vac Input, Single Output, Encapsulated, Board Mount Ac-Dc Power Supply
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TJ-100-28 by CUI and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

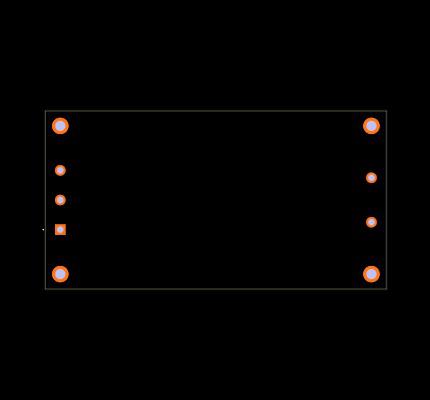

Footprint
No web preview
This Footprint is Available for

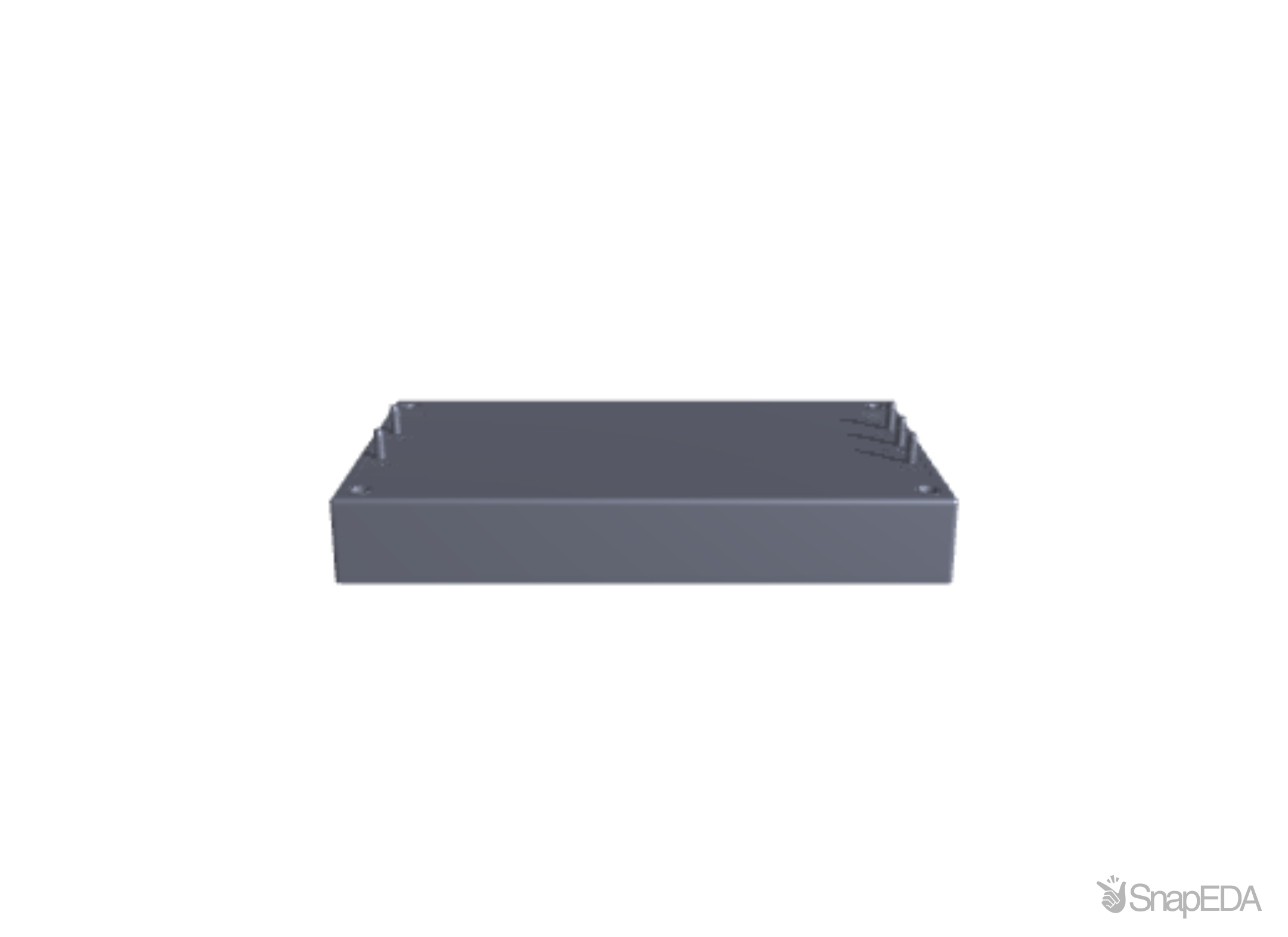

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TJ-100-28
| Part Name | TJ-100-28 |
| Manufacturer | CUI Inc. |
| Safety Standards | 62368 |
| Number of Outputs | 1 |
| Safety Approvals | CE, cUL/UL, UKCA |
| Input Voltage (Vac) (V) | 90 ~ 264 |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/tj-100-series |
| Grade | Commercial |
| Power (W) | 100 |
| Output Voltage (Vdc) (V) | 28 |
| Mounting Style | PCB |
| Standard Footprint | 3" x 5" |
| Protections | Input Under Voltage, Output short circuit, Over Current, Over Temperature, Over Voltage |
| Package Type | Encapsulated |
| Nom. Input Voltage (Vac) (V) | 110, 110/230, 230 |
| Dimensions LxWxH (mm) | 116.8 x 61 x 17 |
| Output Current (A) | 3.6 |
| Special Features | Baseplate Cooling, Extended peak power |
| Operating Temp MAX (With Derating, °C) | 85 |
| Series Power (W) | 100 |
| Operating Temp MIN (With Derating, °C) | -40 |
| Dimensions LxWxH (in) | 4.6 x 2.4 x 0.67 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the TJ-100-28
If you experienced any issues with the symbol or footprint, please report it.
