TJA1027T/20,118
1/1 Transceiver - LINbus 8-SO
Availability: Out of Stock
Package Type: SO-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TJA1027T/20,118 by NXP Semiconductors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

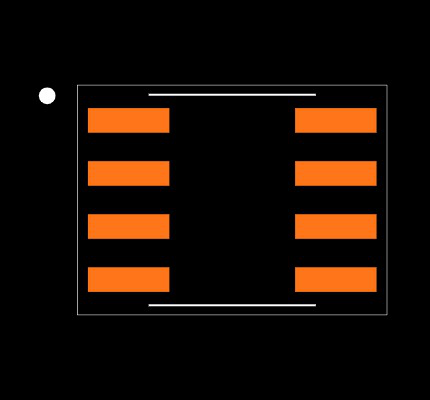

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TJA1027T/20,118
| Part Name | TJA1027T/20,118 |
| Manufacturer | NXP USA |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Data Rate | 20 (kBd) |
| Maximum Operating Supply Voltage (V) | 18 V |
| Number Of Transceivers | 1 |
| Mounting Type | Surface Mount |
| Minimum Operating Supply Voltage (V) | 5 V |
| Maximum Supply Current (A) | 1600 μA |
| Height | 1.45 (mm) |
| Width | 4 (mm) |
| Length | 5 (mm) |
| Package Type | SOIC |
| Minimum Operating Temperature | -40 °C |
| Ic Type | LIN Transceiver IC |
| Power Down Mode | Sleep, Standby |
| Standard Supported | LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2A, SAE J2602 |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 8 |
| Dimensions | 5 x 4 x 1.45 (mm) |
No issues have been reported for the TJA1027T/20,118
