TL074IYDT
J-FET Amplifier 4 Circuit - 14-SO
Availability: In Stock
Package Type: SO-14
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TL074IYDT by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

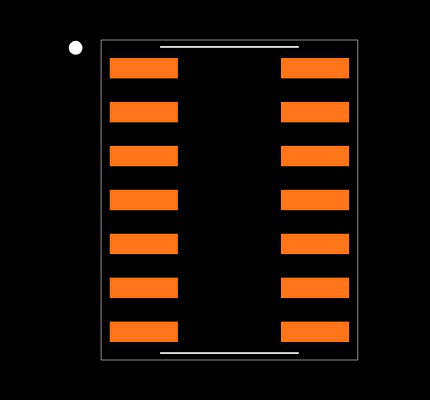

BuildFootprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TL074IYDT
| Part Name | TL074IYDT |
| Manufacturer | STMicroelectronics |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Typical Voltage Gain (V) | 106 dB |
| Typical Dual Supply Voltage (V) | ±30 (V) |
| Typical Input Voltage Noise Density (V) | 15 (nV/√Hz) |
| Dimensions | 8.75 x 4 x 1.65 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 13 (V/µs) |
| Power Supply Type | Dual, Single |
| Number Of Channels Per Chip | 4 |
| Rail To Rail | No |
| Maximum Operating Frequency | 100 kHz |
| Typical Gain Bandwidth Product | 3 (MHz) |
| Typical Single Supply Voltage (V) | 6 → 36 V |
| Width | 4 (mm) |
| Length | 8.75 (mm) |
| Package Type | SOIC |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | High Speed |
| Height | 1.65 (mm) |
| Maximum Operating Temperature | +105 °C |
| Pin Count | 14 |
Inventory for the TL074IYDT by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
6,172
|
|
Visit Site | |
|
★ Featured
|
3,500
|
1,075 x $0.32
|
Visit Site | |
| Arrow Electronics |
20,000
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Newark |
3,370
|
|
Visit Site | |
| TME |
2,470
|
|
Visit Site | |
| Verical |
2,500
|
2,500 x $0.19
|
Visit Site |
No issues have been reported for the TL074IYDT
If you experienced any issues with the symbol or footprint, please report it.
