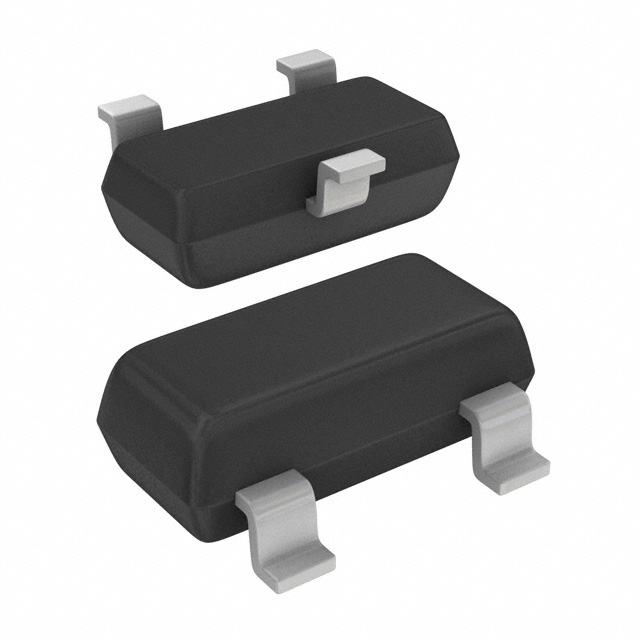

TL431BSDT
VOLTAGE REF, SHUNT, 2.495V-36V, SOT-23-3; Voltage Reference Type:Shunt - Adjustable; Product Range:-; Reference Voltage:2.495V to 36V; Initial Accuracy:0.5%; Temperature Coefficient:-; Voltage Reference Case Style:SOT-23; No. of Pins:3Pins; Operating Temperature Min:-40°C; Operating Temperature Max:125°C; Automotive Qualification Standard:-; RoHS Phthalates Compliant:Yes; MSL:MSL 1 - Unlimited; SVHC:No SVHC (15-Jan-2018); Input Voltage Max:36V; Input Voltage Min:2.483V; No. of Outputs:1Outputs; Operating Temperature Range:-40°C to +125°C; Output Current:100mA; Output Voltage Adjustable Range:2.5V to 36V; Output Voltage Max:36V; Output Voltage Min:2.5V; Reference Volts:2.495V; Topology:Shunt
