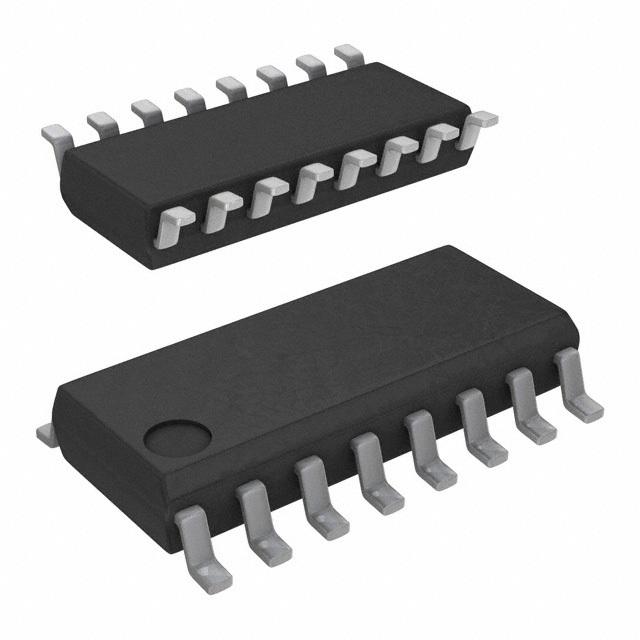

TL494ID
40V, 0.2A 300KHz PWM controller
Availability: In Stock
Package Type: SOIC-16
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TL494ID by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

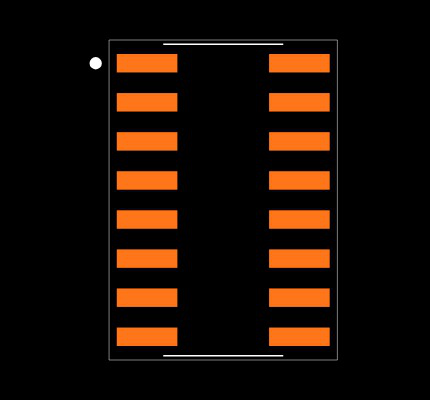

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TL494ID
| Part Name | TL494ID |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Duty Cycle | 45 (%) |
| Output Current (A) | 200 mA |
| Dimensions | 9.9 x 3.91 x 1.58 (mm) |
| Maximum Operating Supply Voltage (V) | 40 V |
| Fall Time | 40 (ns) |
| Control Method | Voltage |
| Minimum Operating Supply Voltage (V) | 7 V |
| Maximum Switching Frequency | 300 kHz |
| Width | 3.91 (mm) |
| Length | 9.9 (mm) |
| Height | 1.58 (mm) |
| Package Type | SOIC |
| Minimum Operating Temperature | -40 °C |
| Output Voltage (V) | 40 V |
| Mounting Type | Surface Mount |
| Pwm Controller Type | DC-DC |
| Rise Time | 100 (ns) |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 16 |
| Topology | Boost, Buck, Flyback, Forward, Full Bridge, Half Bridge, Push-Pull |
Inventory for the TL494ID by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,343
|
|
Visit Site | |
|
★ Featured
|
100,340
|
1,945 x $0.15
|
Visit Site | |
| Arrow Electronics |
567
|
|
Visit Site | |
| Texas Instruments |
60,774
|
|
Visit Site | |
| Verical |
567
|
14 x $0.42
|
Visit Site |
No issues have been reported for the TL494ID
