TLC1543QDW
10-bit, 38-kSPS ADC serial out, on-chip system clock, 11-channel with -40C to 125C temp range
Availability: In Stock
Package Type: SOIC-20
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TLC1543QDW by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

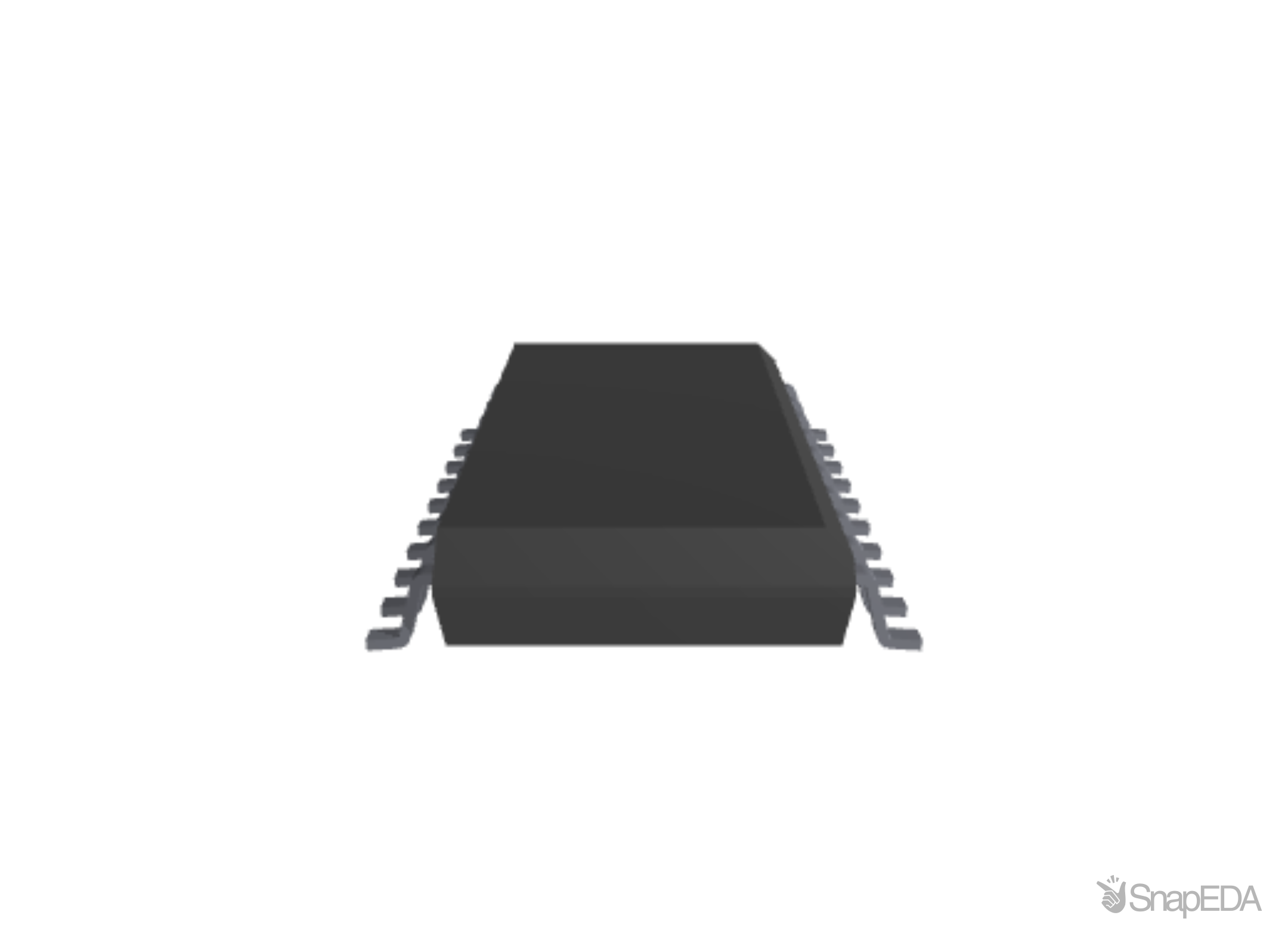

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TLC1543QDW
| Part Name | TLC1543QDW |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Adcs | 11 |
| Integral Nonlinearity Error | ±1 (LSB) |
| Dimensions | 12.8 x 7.52 x 2.35 (mm) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | 125 °C |
| Pin Count | 20 |
| Input Signal Type | Single Ended |
| Typical Single Supply Voltage (V) | 5 V |
| Package Type | SOIC |
| Architecture | SAR |
| Minimum Operating Temperature | -40 °C |
| Sampling Rate | 38 (ksps) |
| Input Type | Voltage |
| Resolution | 10-bit |
| Digital Interface Type | Serial (SPI) |
