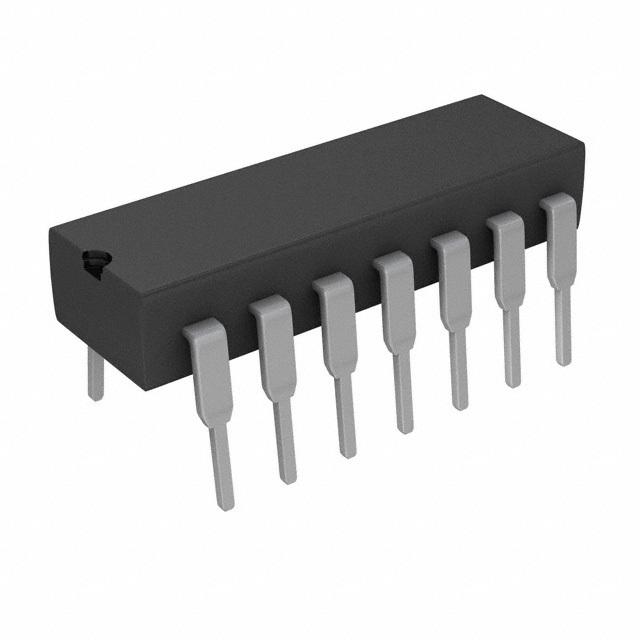

TLC274CN
Quad, 16-V, 2-MHz, In to V- operational amplifier
Availability: In Stock
Package Type: PDIP-14
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TLC274CN by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the TLC274CN
| Part Name | TLC274CN |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Input Voltage Noise Density (V) | 25 (nV/√Hz) |
| Dimensions | 19.3 x 6.35 x 4.57 (mm) |
| Mounting Type | Through Hole |
| Typical Slew Rate | 3.6 (V/µs) |
| Power Supply Type | Single |
| Number Of Channels Per Chip | 4 |
| Typical Gain Bandwidth Product | 1.7 (MHz) |
| Output Type | CMOS |
| Height | 4.57 (mm) |
| Typical Single Supply Voltage (V) | 5 → 15 V |
| Width | 6.35 (mm) |
| Length | 19.3 (mm) |
| Package Type | PDIP |
| Minimum Operating Temperature | 0 °C |
| Typical Voltage Gain (V) | 87.23 dB |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 14 |
Inventory for the TLC274CN by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
184,755
|
173 x $1.74
|
Visit Site | |
|
★ Featured
|
537
|
|
Visit Site | |
|
★ Featured
|
3,233
|
194 x $1.55
|
Visit Site | |
| Arrow Europe |
450
|
25 x $1.41
|
Visit Site | |
| Texas Instruments |
26
|
|
Visit Site | |
| Verical |
19,325
|
|
Visit Site |
No issues have been reported for the TLC274CN
