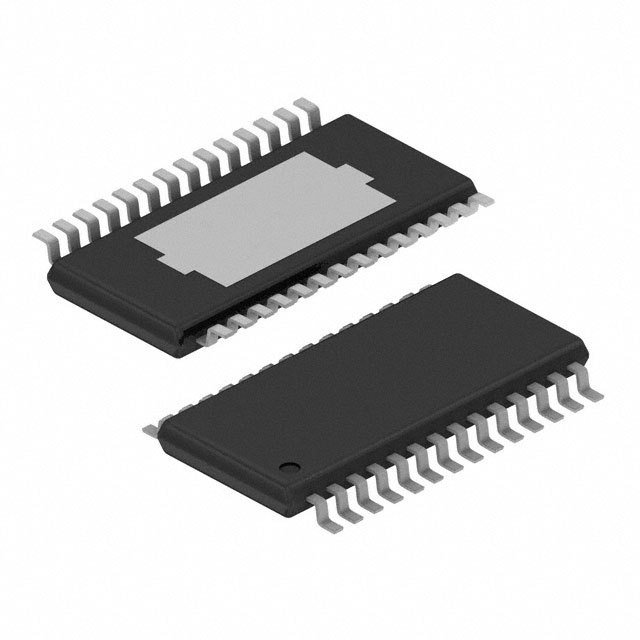

TLC5940PWPR
16-channel LED driver w/EEprom dot correction & grayscale PWM control
Availability: In Stock
Package Type: HTSSOP-28
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TLC5940PWPR by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

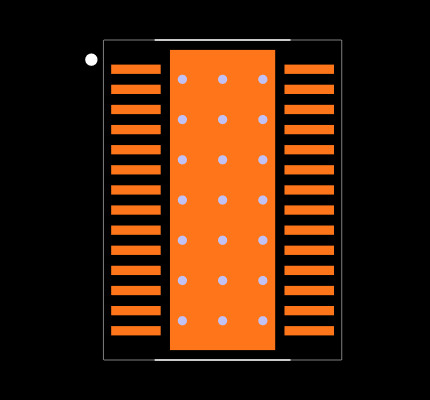

Footprint
No web preview
This Footprint is Available for

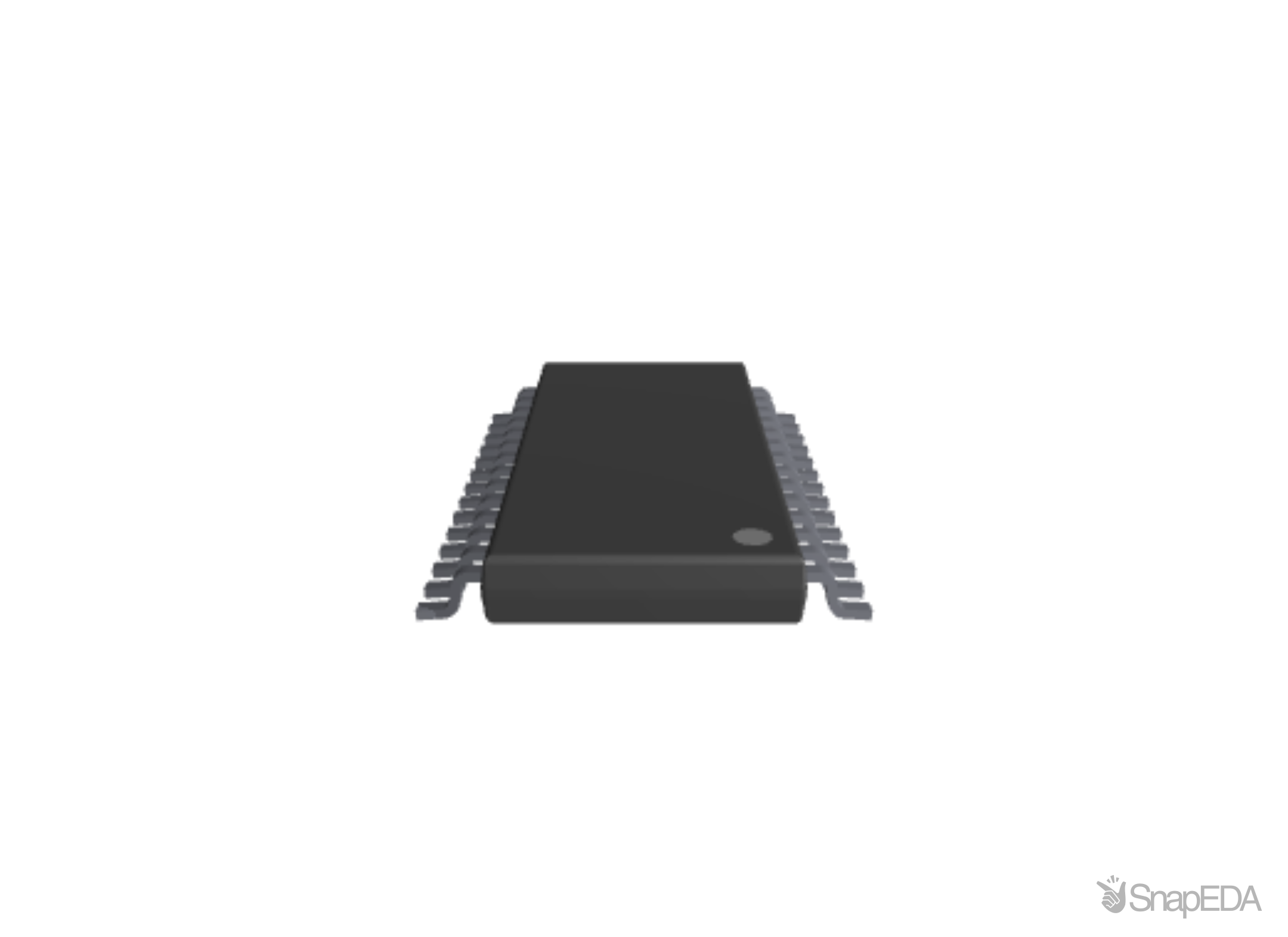

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TLC5940PWPR
| Part Name | TLC5940PWPR |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Surface Mount |
| Length | 9.8 (mm) |
| Height | 1.05 (mm) |
| Width | 4.5 (mm) |
| Maximum Supply Current (A) | 60 (mA) |
| Package Type | HTSSOP |
| Supply Voltage (V) | 3.5 → 60 V |
| Minimum Operating Temperature | -40 (°C) |
| Number Of Pins | 28 |
| Maximum Operating Temperature | +85 (°C) |
Inventory for the TLC5940PWPR by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
9,280
|
149 x $2.01
|
Visit Site | |
| Texas Instruments |
157,223
|
|
Visit Site |
No issues have been reported for the TLC5940PWPR
