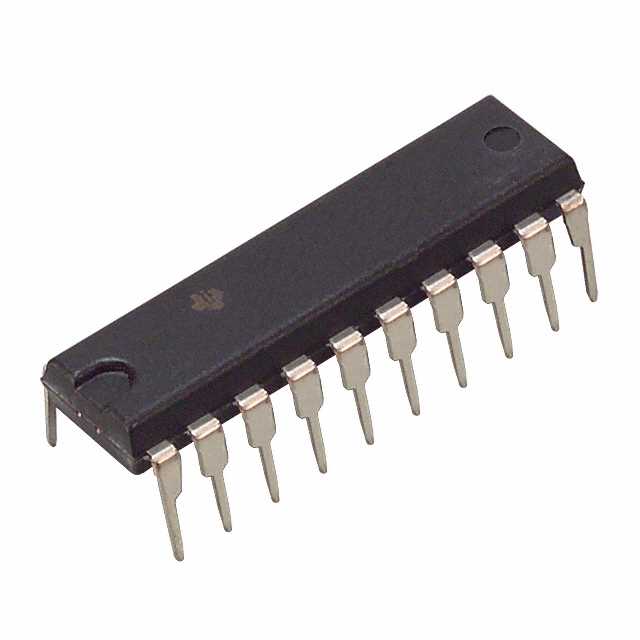

TLC7528CN
8-bit, 0.1 μs dual MDAC, parallel input, fast control signaling for DSP, easy micro I/F
Availability: In Stock
Package Type: PDIP-20
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TLC7528CN by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

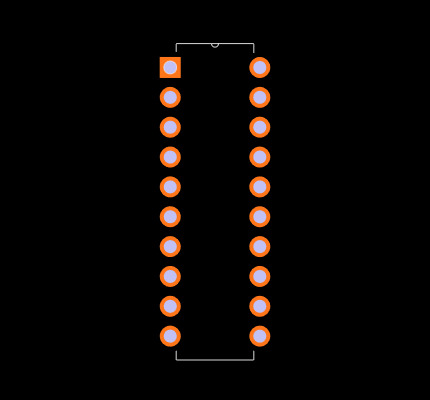

Footprint
No web preview
This Footprint is Available for

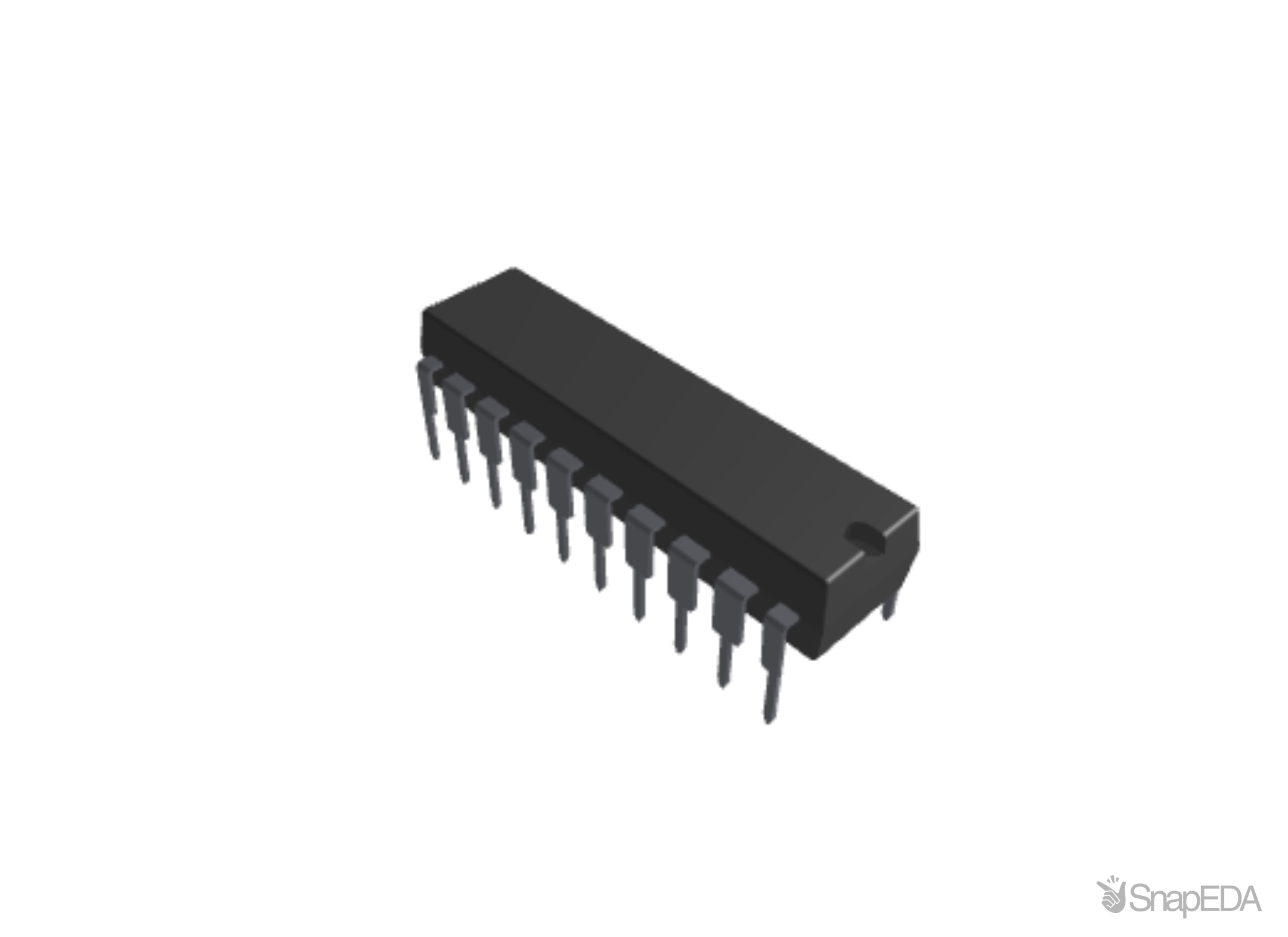

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TLC7528CN
| Part Name | TLC7528CN |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Conversion Rate | 10 (Msps) |
| Integral Nonlinearity Error | ±0.5 (LSB) |
| Dimensions | 24.33 x 6.35 x 4.57 (mm) |
| Mounting Type | Through Hole |
| Number Of Dac Channels | 2 |
| Power Supply Type | Single |
| Resolution | 8 bit |
| Pin Count | 20 |
| Typical Single Supply Voltage (V) | 5 V, 15 V |
| Full Scale Error | 2.5 (LSB) |
| Package Type | PDIP |
| Architecture | R-2R, Resistor String |
| Minimum Operating Temperature | 0 °C |
| Voltage Reference (V) | External |
| Maximum Operating Temperature | +70 °C |
| Maximum Settling Time | 0.1 (µs) |
| Digital Interface Type | Parallel |
Inventory for the TLC7528CN by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
120,767
|
86 x $3.53
|
Visit Site | |
|
★ Featured
|
113
|
|
Visit Site | |
|
★ Featured
|
30,800
|
133 x $2.61
|
Visit Site | |
| Arrow Europe |
820
|
20 x $2.99
|
Visit Site | |
| Texas Instruments |
35,304
|
|
Visit Site | |
| Verical |
310
|
|
Visit Site |
No issues have been reported for the TLC7528CN
