TLD8S24AH
6600W, 24V, 5%, Automotive, Unidirectional, TVS
Availability: In Stock
Package Type: DO-218AB
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TLD8S24AH by taiwan and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

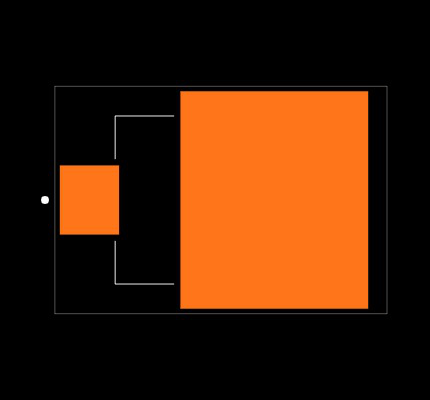

Footprint
No web preview
This Footprint is Available for

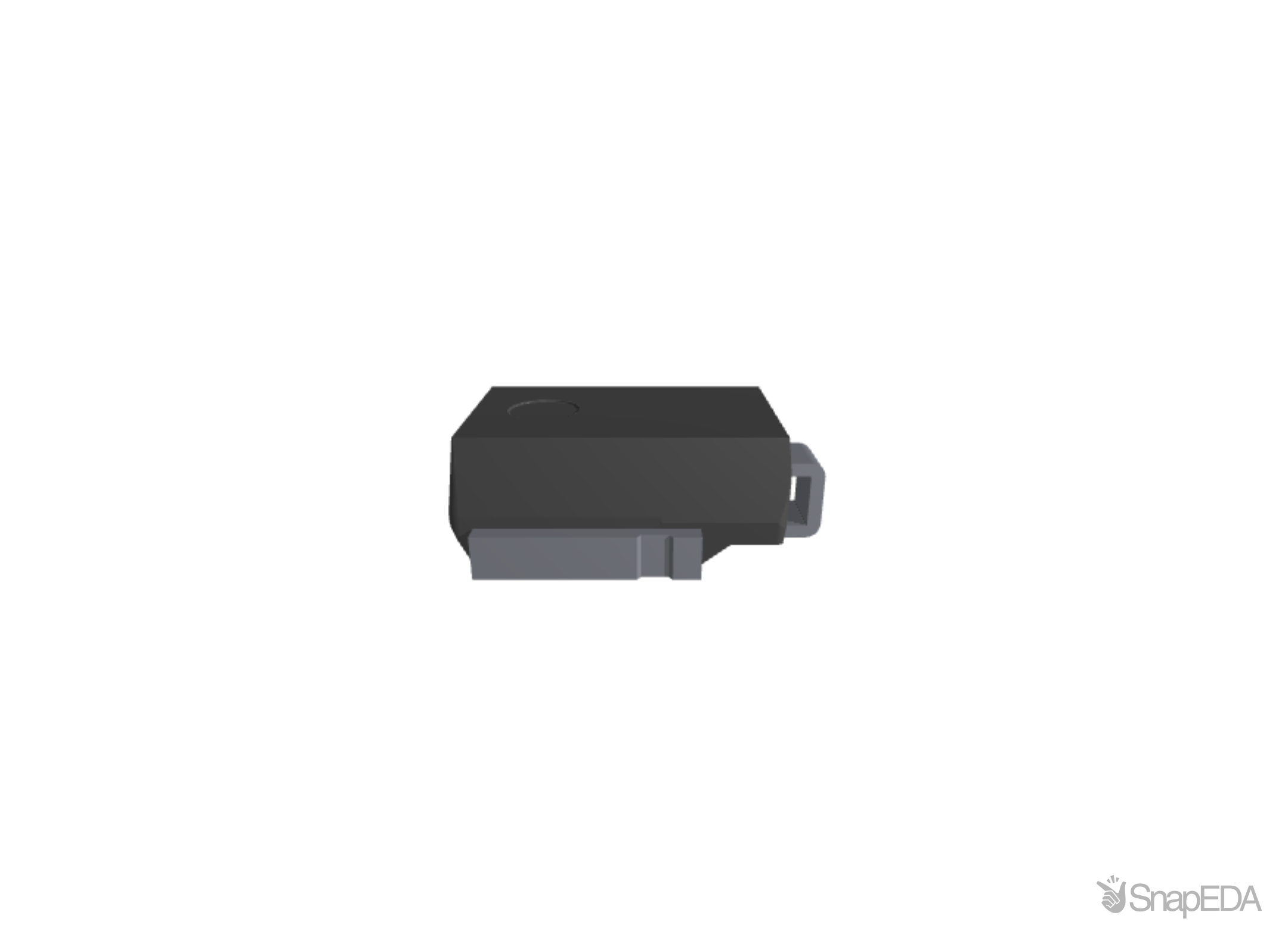

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TLD8S24AH
| Part Name | TLD8S24AH |
| Manufacturer | Taiwan Semiconductor Corporation |
| Minimum Breakdown Voltage (V) | 26.7 |
| Maximum DC Reverse Current (A) | 1e-05 |
| Package | DO-218AB |
| Case Package | DO-218AB |
| Maximum peak impulse current (A) | 170.0 |
| Maximum clamping voltage (V) | 38.9 |
| Maximum Breakdown Voltage (V) | 29.5 |
| Breakdown Voltage (V) | 28.1 |
| Family | TVS Load Dump |
| Stand-off Voltage (V) | 24.0 |
| Maximum Peak Pulse Power | 6600.0 |
| Maximum Operating Junction Temperature | 175.0 |
| Configuration | Unidirectional |
| Breakdown Voltage Tolerance (V) | 5.0 |
| RoHS | True |
| AEC-Q compliant | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the TLD8S24AH by taiwan from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
548
|
|
Visit Site | |
| Newark |
548
|
|
Visit Site | |
| RS UK |
702
|
2 x $2.31
|
Visit Site | |
| element14 Singapore |
548
|
1 x $3.34
|
Visit Site |
No issues have been reported for the TLD8S24AH
