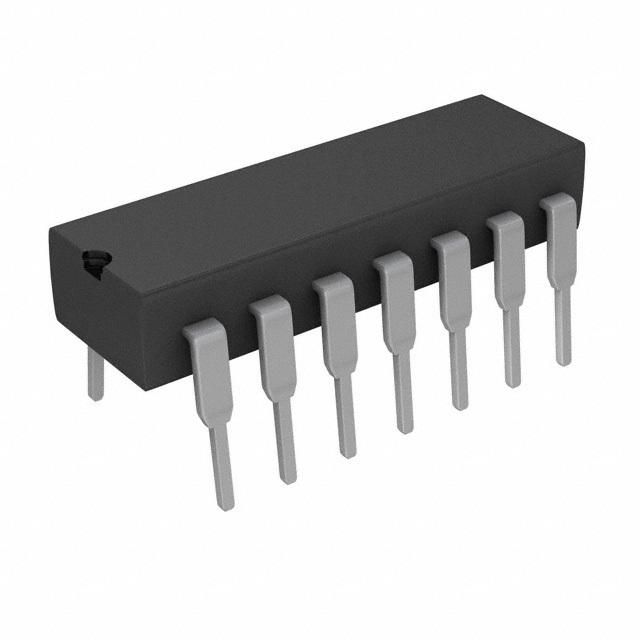

TLE2064CN
Quad, 36-V, 2-MHz, In to V+, JFET-input operational amplifier
Availability: In Stock
Package Type: PDIP-14
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TLE2064CN by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for

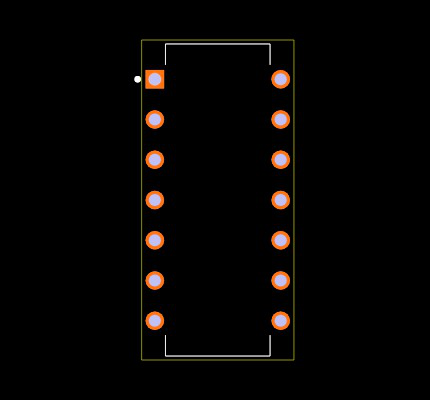

Footprint
No web preview
This Footprint is Available for

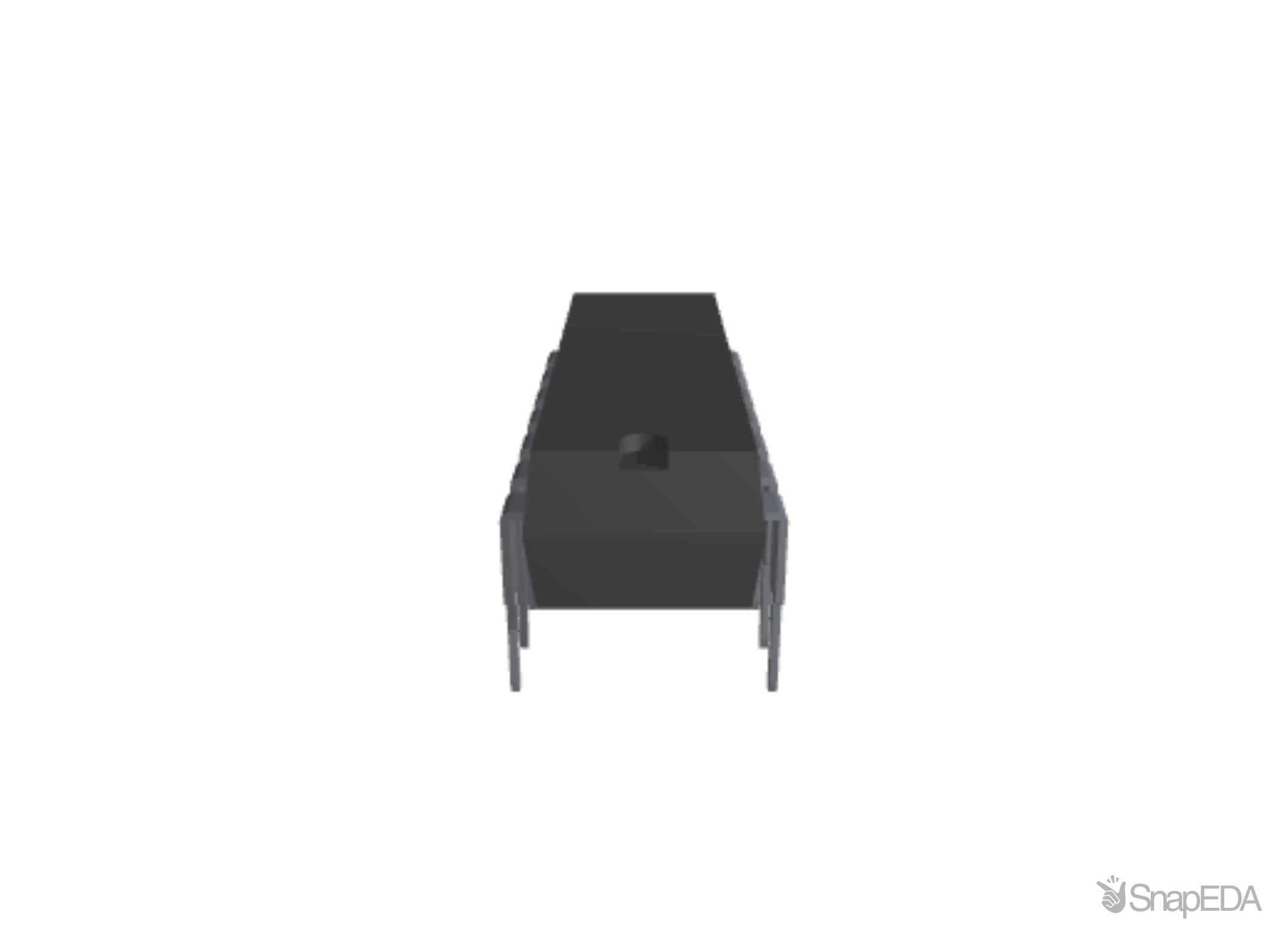

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the TLE2064CN
| Part Name | TLE2064CN |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Voltage Gain (V) | 98 dB |
| Typical Dual Supply Voltage (V) | ±12 V, ±15 V, ±5 V, ±9 V |
| Typical Input Voltage Noise Density (V) | 59 (nV/√Hz) |
| Dimensions | 19.3 x 6.35 x 4.57 (mm) |
| Mounting Type | Through Hole |
| Typical Slew Rate | 3.4 (V/µs) |
| Power Supply Type | Dual |
| Number Of Channels Per Chip | 4 |
| Rail To Rail | No |
| Typical Gain Bandwidth Product | 1.8 (MHz) |
| Width | 6.35 (mm) |
| Length | 19.3 (mm) |
| Package Type | PDIP |
| Minimum Operating Temperature | 0 °C |
| Height | 4.57 (mm) |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 14 |
Inventory for the TLE2064CN by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
186
|
87 x $3.47
|
Visit Site | |
|
★ Featured
|
275
|
|
Visit Site | |
|
★ Featured
|
12,300
|
110 x $3.16
|
Visit Site | |
| Texas Instruments |
4,899
|
|
Visit Site | |
| Verical |
138
|
|
Visit Site |
No issues have been reported for the TLE2064CN
