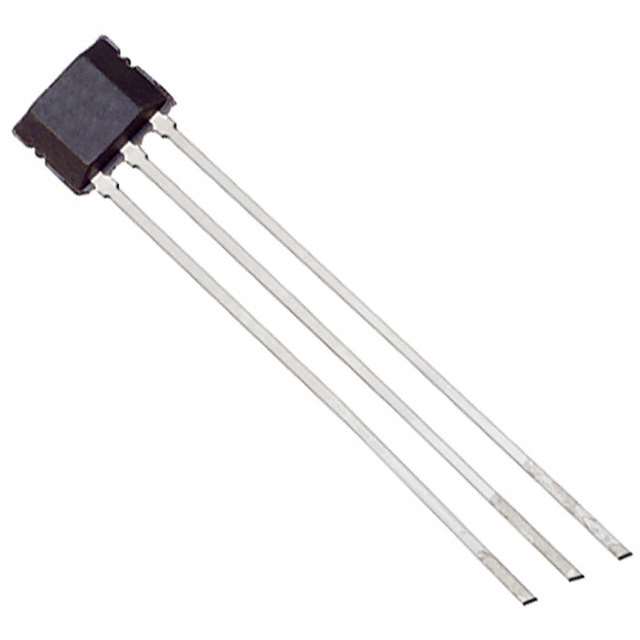

TLE4905L
Digital Switch Unipolar Switch Open Collector Hall Effect PG-SSO-3-2
Availability: Out of Stock
Package Type: SIP-3

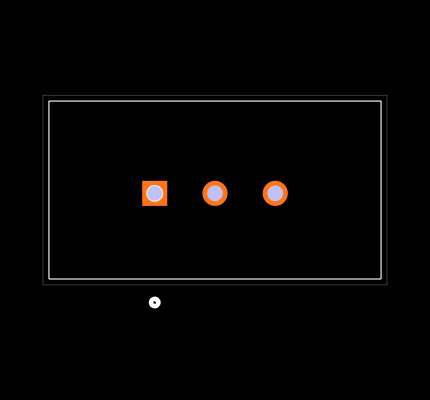

CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TLE4905L by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TLE4905L
| Part Name | TLE4905L |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Sensor Type | Hall Effect Sensors |
| Maximum Operating Supply Voltage (V) | 24 V |
| Minimum Operating Supply Voltage (V) | 3.8 V |
| Package Type | SSOP |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Through Hole |
| Magnetic Type | Unipolar |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 3 |
No issues have been reported for the TLE4905L
