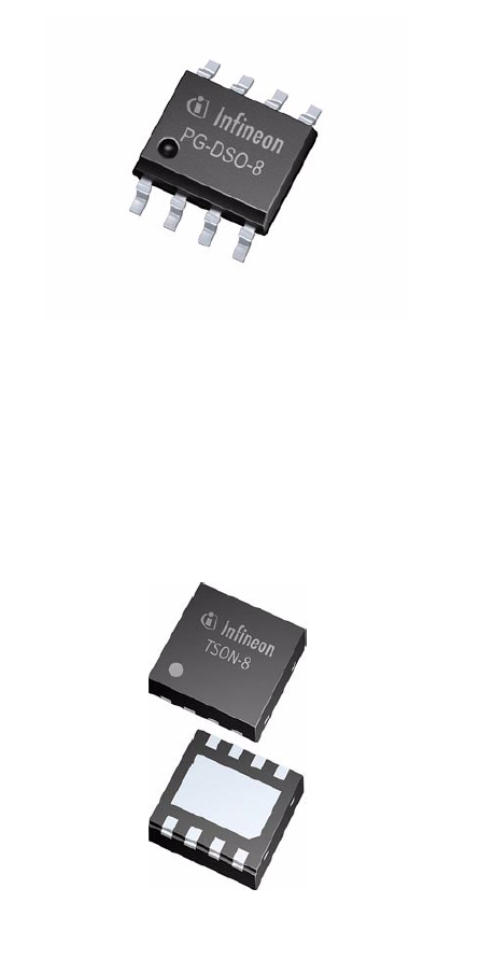

TLE8457BLEXUMA1
5 V or 3.3 V Low Drop-Out Linear Voltage Regulator with 70 mA current capability | TLE8457 has Integrated Initialization time-out feature | TLE8457 offers excellent EMC performance | TLE8457 has ultra low current consumption in Stand-by mode (40 ?A) and Sleep mode (16?A) | TLE8457 includes the TxD Dominant time-out feature | TLE8457 has excellent EMC performance (IBEE Test Report) | TLE8457 LIN-LDO Demoboard available | Available in DSO-8 and tiny TSON-8
Availability: In Stock

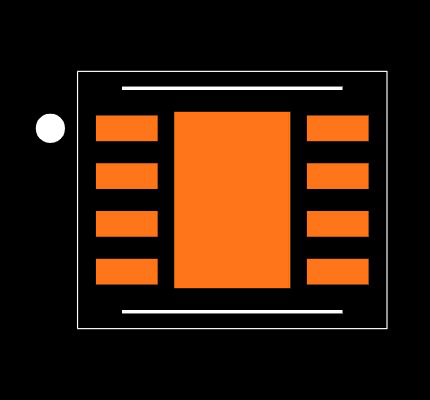

CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TLE8457BLEXUMA1 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

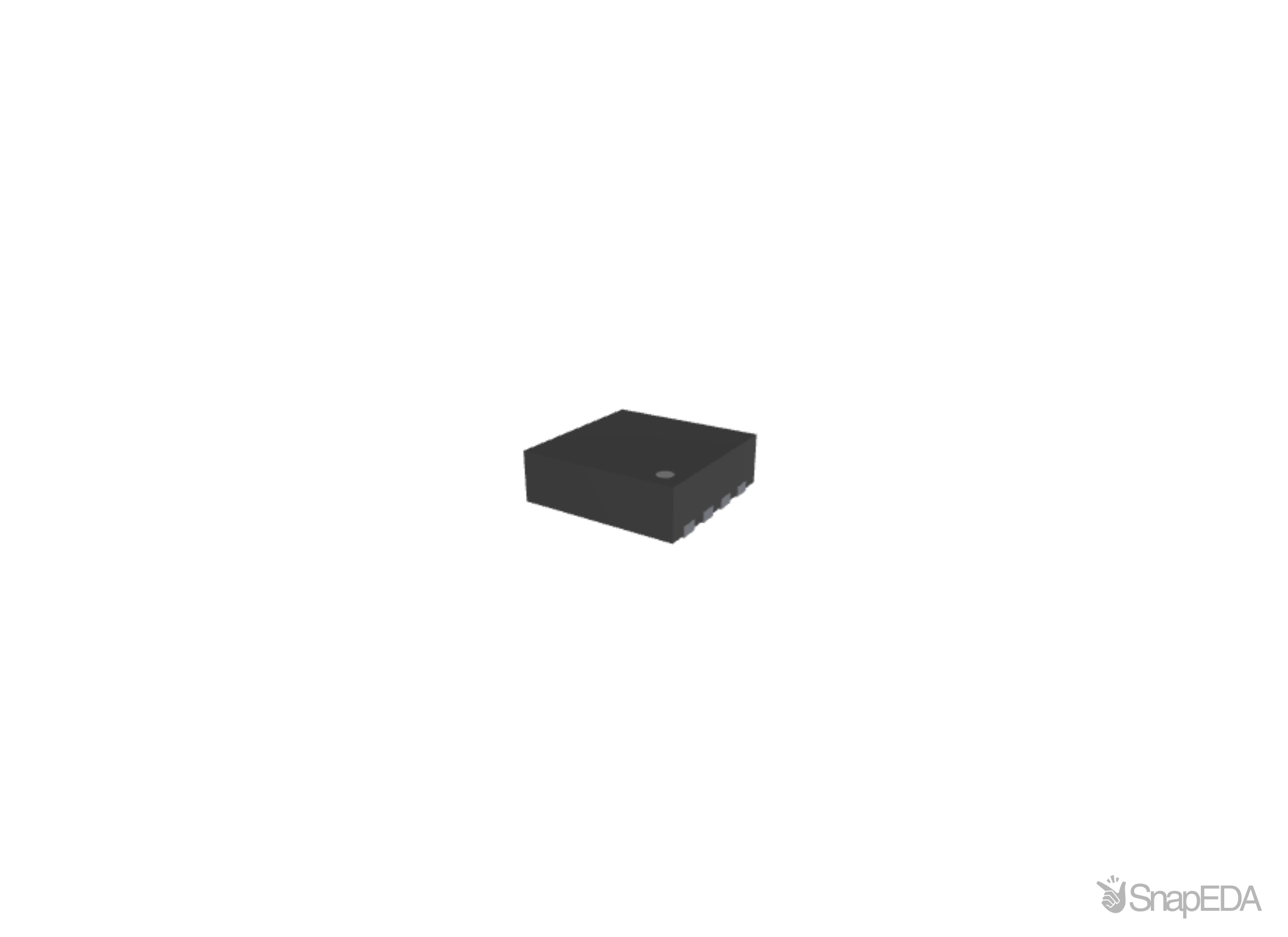

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TLE8457BLEXUMA1
| Part Name | TLE8457BLEXUMA1 |
| Manufacturer | Infineon |
| RoHS | True |
| Product Link | https://www.infineon.com/cms/en/product/transceivers/automotive-transceiver/automotive-lin-transceivers/tle8457ble/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the TLE8457BLEXUMA1 by Infineon from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
5,000
|
|
Visit Site | |
|
★ Featured
|
90,000
|
400 x $0.87
|
Visit Site | |
| Verical |
4,830
|
|
Visit Site |
No issues have been reported for the TLE8457BLEXUMA1
