TLJR336M006R3000
Capacitor;Tantalum;Cap 33 uF;Tol 20%;SMT;Case 2012-12;Vol-Rtg 6V;High CV | AVX TLJR336M006R3000
Availability: In Stock
Package Type: SMD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TLJR336M006R3000 by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

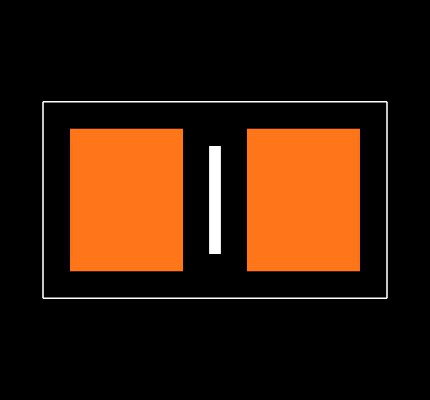

Footprint
No web preview
This Footprint is Available for

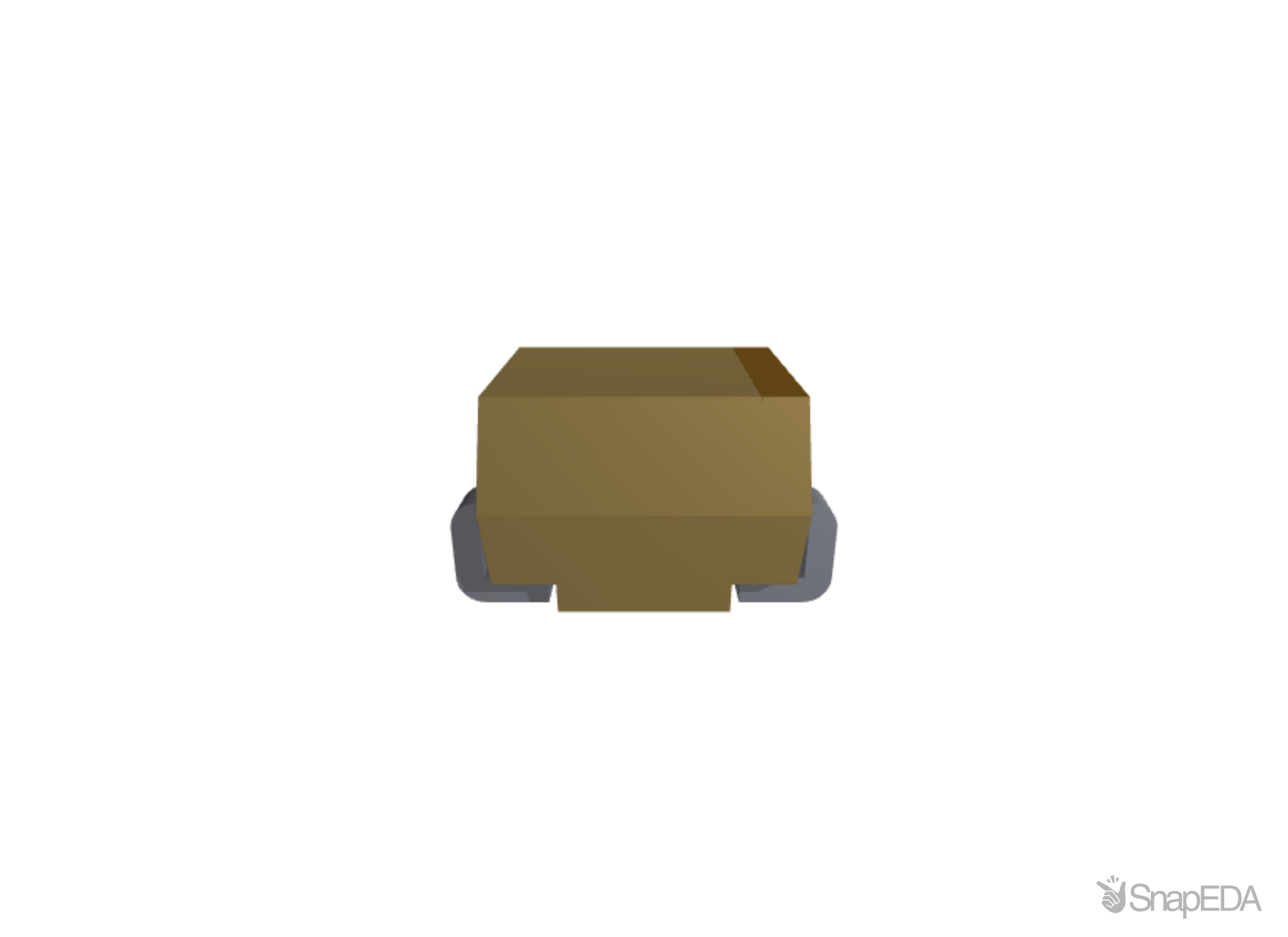

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TLJR336M006R3000
| Part Name | TLJR336M006R3000 |
| Manufacturer | AVX |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Tolerance Plus | +20 (%) |
| Dimensions | 2.05 x 1.3 x 1.2 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 2012-12 |
| Series | TLJ |
| Minimum Operating Temperature | -55 (°C) |
| Dielectric Material Family | Tantalum |
| Length | 2.05 (mm) |
| Equivalent Series Resistance | 3 (Ω) |
| Height | 1.2 (mm) |
| Capacitance | 33 (µF) |
| Depth | 1.3 (mm) |
| Technology | Electrolytic |
| Voltage (V) | 6.3 (V dc) |
| Leakage Current (A) | 2 μA |
| Electrolyte Type | Solid |
| Lead Pitch | 0.85 (mm) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±20 (%) |
| Terminal Type | SMD |
| Tolerance Minus | -20 (%) |
