TLM3AER056JTE
TLM 2512 1.0W R056 5% 100PPM 4K RL
Availability: Out of Stock
Package Type: 6331
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TLM3AER056JTE by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

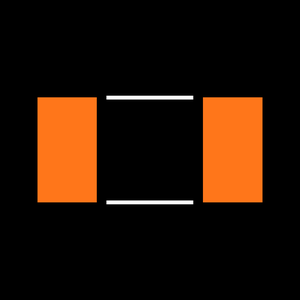

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TLM3AER056JTE
| Part Name | TLM3AER056JTE |
| Manufacturer | TE Connectivity |
| Mount Style | Surface Mount |
| Dimensions | 6.3 x 3.15 x .55 |
| Package | 2512 |
| Number of Terminations | 2 |
| Resistor Type | Current Sensing Resistor |
| Size Code | 2512 |
| Packaging Method | Taped & Reeled |
| TE Internal Number | 1-2176158-0 |
| Temperature Coefficient | ±100 |
| Resistance | .56 |
| Number of Resistors | 1 |
| Termination Type | Solder |
| Power Rating | 1 |
| Product Type | Fixed Resistor |
| Tolerance | 5% |
| RoHS | True |
