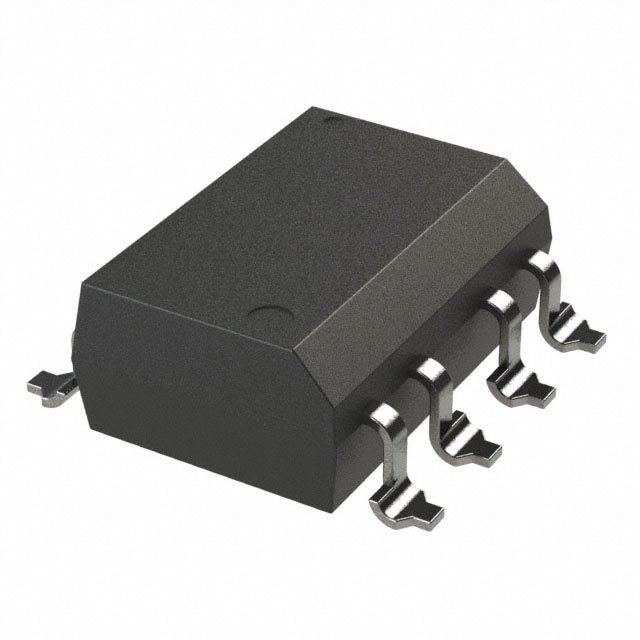

TLP250H(F)
Logic Output Optoisolator - Push-Pull, Totem Pole 3750Vrms 1 Channel 40kV/µs CMTI 8-DIP
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TLP250H(F) by Toshiba and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TLP250H(F)
| Part Name | TLP250H(F) |
| Manufacturer | Toshiba |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Forward Voltage (V) | 1.8 (V) |
| Output Device | IC |
| Input Current Type (A) | DC |
| Mounting Type | Through Hole |
| Series | TLP |
| Typical Rise Time | 50 (ns) |
| Isolation Voltage (V) | 5000 Vrms |
| Number Of Channels | 1 |
| Package Type | DIP |
| Maximum Input Current (A) | 20 mA |
| Logic Output | Yes |
| Number Of Pins | 8 |
| Typical Fall Time | 50 (ns) |
Inventory for the TLP250H(F) by Toshiba from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,412
|
|
Visit Site | |
|
★ Featured
|
220,000
|
615 x $0.49
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| RS UK |
768
|
|
Visit Site | |
| Rutronik |
|
1,100 x $0.87
|
Visit Site | |
| TME |
669
|
|
Visit Site | |
| TTI Americas |
4,450
|
|
Visit Site | |
| Verical |
36
|
|
Visit Site |
No issues have been reported for the TLP250H(F)
