TLP281
Optoisolator Transistor Output 2500Vrms 4 Channel 16-SOP
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TLP281 by Toshiba and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

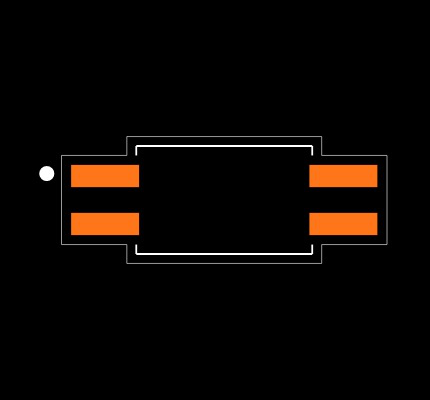

Footprint
No web preview
This Footprint is Available for

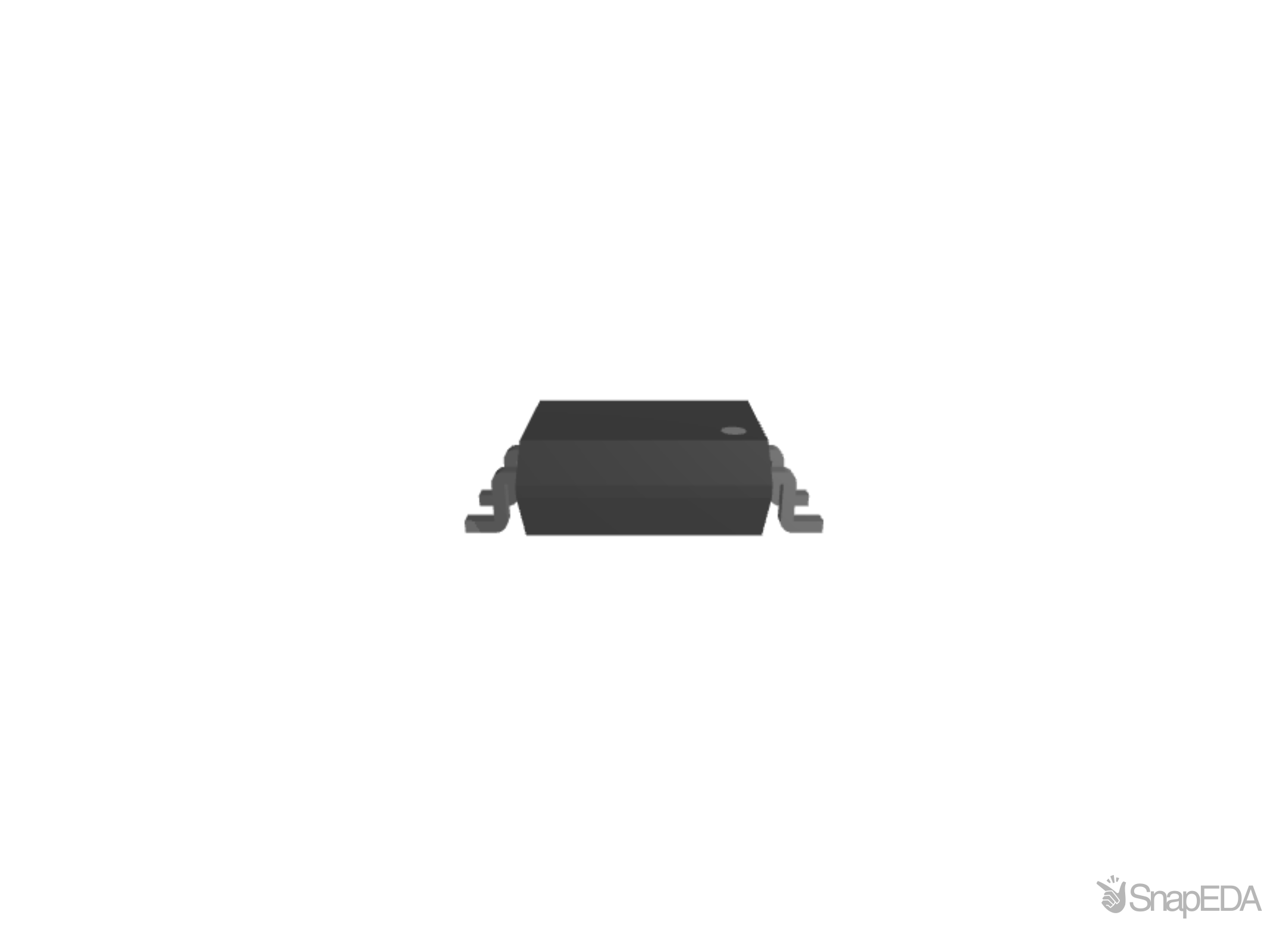

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TLP281
| Part Name | TLP281 |
| Manufacturer | Toshiba Semiconductor |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Forward Voltage (V) | 1.3 (V) |
| Output Device | Phototransistor |
| Input Current Type (A) | DC |
| Mounting Type | Surface Mount |
| Number Of Channels | 1 |
| Typical Rise Time | 2 (µs) |
| Maximum Current Transfer Ratio (A) | 600 (%) |
| Isolation Voltage (V) | 2500 V ac |
| Package Type | SOP |
| Minimum Current Transfer Ratio (A) | 50 % |
| Number Of Pins | 4 |
| Maximum Input Current (A) | 50 mA |
| Typical Fall Time | 3 (µs) |
No issues have been reported for the TLP281
