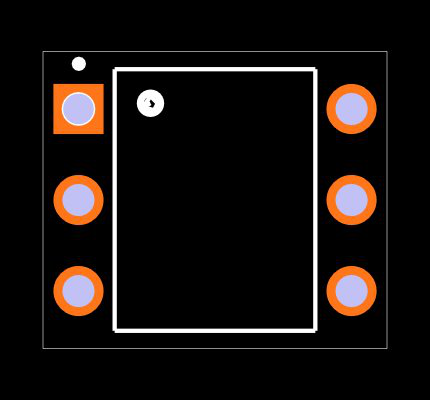

Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now

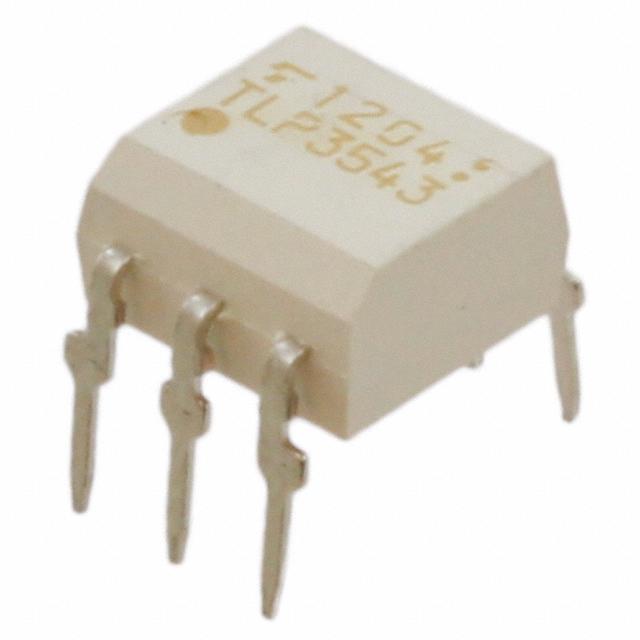

TLP3543(F)
Solid State SPST-NO (1 Form A) 6-DIP (0.300", 7.62mm)
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TLP3543(F) by Toshiba and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TLP3543(F)
| Part Name | TLP3543(F) |
| Manufacturer | Toshiba Semiconductor |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Output Device | MOSFET |
| Control Voltage Range (V) | Maximum of 16 V |
| Dimensions | 7.12 x 6.4 x 3.65 (mm) |
| Mounting Type | Surface Mount |
| Operating Temperature Range | -40 → +85 (°C) |
| Maximum Operating Temperature | +85 (°C) |
| Package Style | DIP |
| Relay Type | PhotoMOSFET |
| Length | 7.1 (mm) |
| Contact Configuration | SPST |
| Off State Leakage Current (A) | 1 μA |
| Capacitance | 1 (nF) |
| Depth | 6.4 (mm) |
| Maximum Turn On Time | 5 (ms) |
| Minimum Operating Temperature | -40 (°C) |
| Switching Type | AC/DC |
| Maximum Control Voltage (V) | 16 V |
| Special Features | High Current Photorelays |
| Height | 3.7 (mm) |
| Number Of Poles | 1 |
| Terminal Type | PCB Pin |
