TLV2774CPW
Quad, 5.5-V, 5.1-MHz, high slew rate (10.5-V/μs) operational amplifier
Availability: In Stock
Package Type: TSSOP-14
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TLV2774CPW by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
Footprint
No web preview
This Footprint is Available for

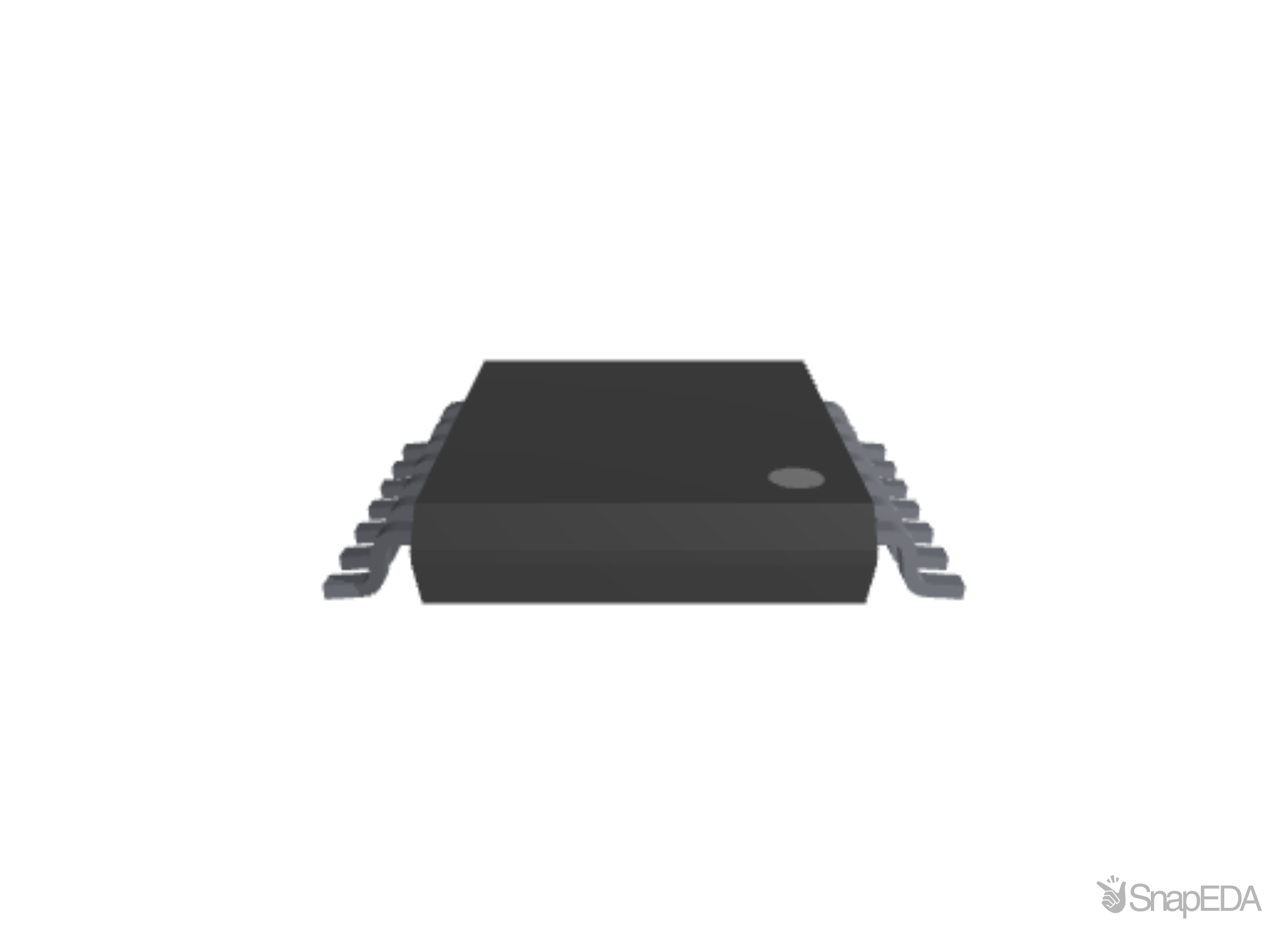

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the TLV2774CPW
| Part Name | TLV2774CPW |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Typical Voltage Gain (V) | 113 dB |
| Typical Input Voltage Noise Density (V) | 17 (nV/√Hz) |
| Dimensions | 5 x 4.4 x 1.15 (mm) |
| Mounting Type | Surface Mount |
| Typical Slew Rate | 10.5 (V/µs) |
| Power Supply Type | Dual, Single |
| Number Of Channels Per Chip | 4 |
| Rail To Rail | Rail to Rail Output |
| Typical Gain Bandwidth Product | 5.1 (MHz) |
| Typical Single Supply Voltage (V) | 3 V, 5 V |
| Width | 4.4 (mm) |
| Length | 5 (mm) |
| Package Type | TSSOP |
| Minimum Operating Temperature | 0 °C |
| Amplifier Type | Precision |
| Height | 1.15 (mm) |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 14 |
