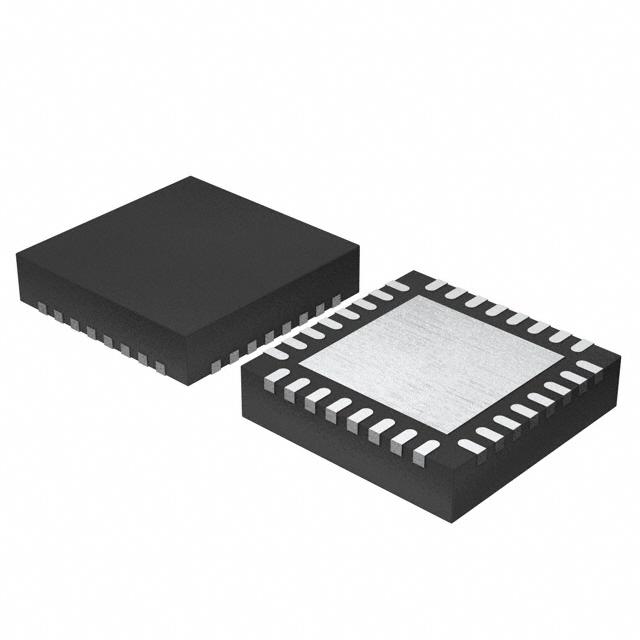

TLV320AIC3254IRHBT
Very Low-Power Stereo Audio CODEC with programmable miniDSP
Availability: In Stock
Package Type: VQFN-32
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TLV320AIC3254IRHBT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TLV320AIC3254IRHBT
| Part Name | TLV320AIC3254IRHBT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 32 |
| Number Of Adcs | 2 |
| Number Of Dacs | 2 |
| Dimensions | 5 x 5 x 0.9 (mm) |
| Mounting Type | Surface Mount |
| Power Supply Type | Single |
| Adc Dac Resolution | 32 (bit) |
| Number Of Adc Inputs | 3 |
| Typical Operating Supply Voltage (V) | 1.8 V, 2.5 V, 3.3 V |
| Package Type | QFN |
| Interface Type | Serial-I2C, Serial-I2S, Serial-SPI |
| Minimum Operating Temperature | -40 °C |
| Number Of Channels | Stereo |
| Sampling Rate | 192 (ksps) |
| Maximum Operating Temperature | +85 °C |
| Number Of Dac Outputs | 2 |
