TLV5627IPW
8-Bit, 3 us Quad DAC, Serial Input, Low Power, H/W or S/W Power Down
Availability: In Stock
Package Type: TSSOP-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TLV5627IPW by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

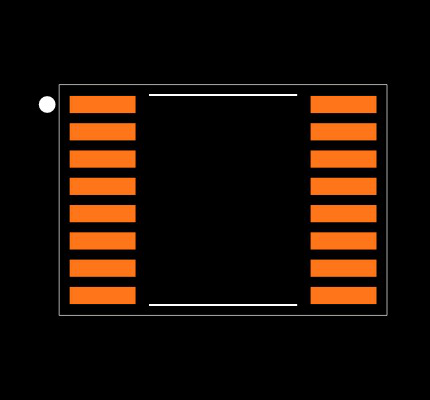

Footprint
No web preview
This Footprint is Available for

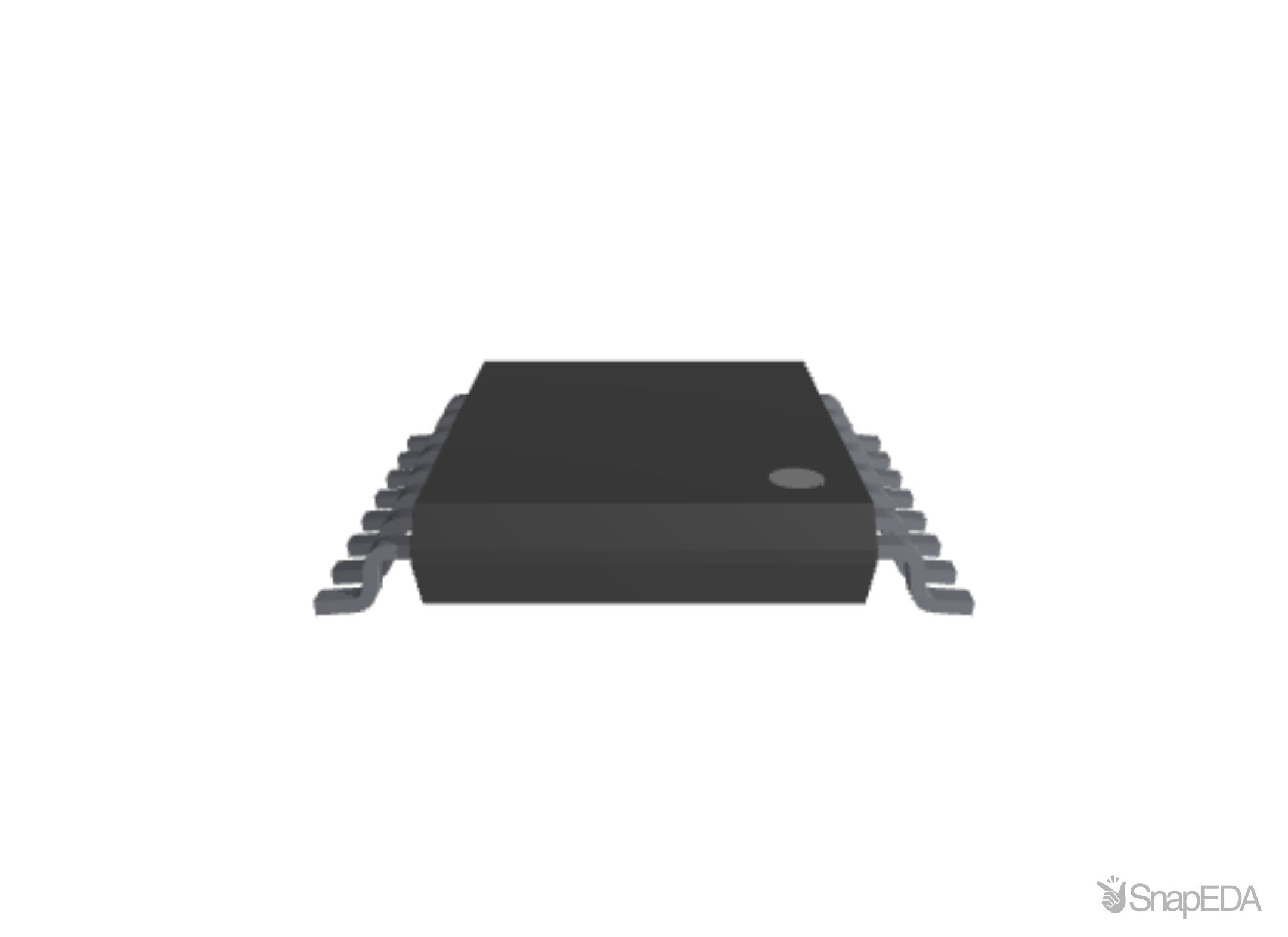

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TLV5627IPW
| Part Name | TLV5627IPW |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Output Polarity | Unipolar |
| Conversion Rate | 107 (ksps) |
| Integral Nonlinearity Error | ±0.5 (LSB) |
| Dimensions | 5 x 4.4 x 1.15 (mm) |
| Mounting Type | Surface Mount |
| Number Of Dac Channels | 4 |
| Power Supply Type | Single |
| Resolution | 8 bit |
| Pin Count | 16 |
| Typical Single Supply Voltage (V) | 5.5 V |
| Full Scale Error | ±0.6 (%FSR) |
| Package Type | TSSOP |
| Architecture | Resistor String |
| Minimum Operating Temperature | -40 °C |
| Voltage Reference (V) | External |
| Maximum Operating Temperature | 85 °C |
| Maximum Settling Time | 18 (µs) |
| Digital Interface Type | Serial (SPI/QSPI/Microwire) |
Inventory for the TLV5627IPW by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
16
|
16 x $18.75
|
Visit Site | |
|
★ Featured
|
179
|
|
Visit Site | |
|
★ Featured
|
150
|
67 x $4.52
|
Visit Site | |
| Texas Instruments |
2,442
|
|
Visit Site |
No issues have been reported for the TLV5627IPW
