TLV70218DBVT
300-mA, high-PSRR, low-IQ, low-dropout voltage regulator with enable
Availability: In Stock
Package Type: SOT-23-5
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TLV70218DBVT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
Symbol
No web preview
This Symbol is Available for

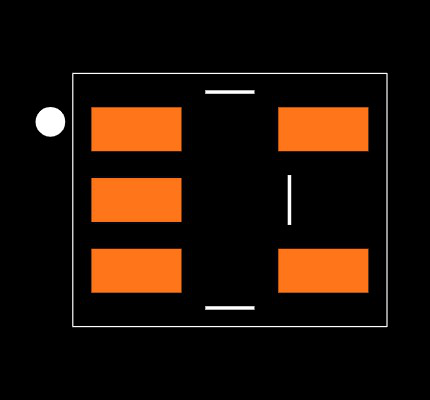

Footprint
No web preview
This Footprint is Available for

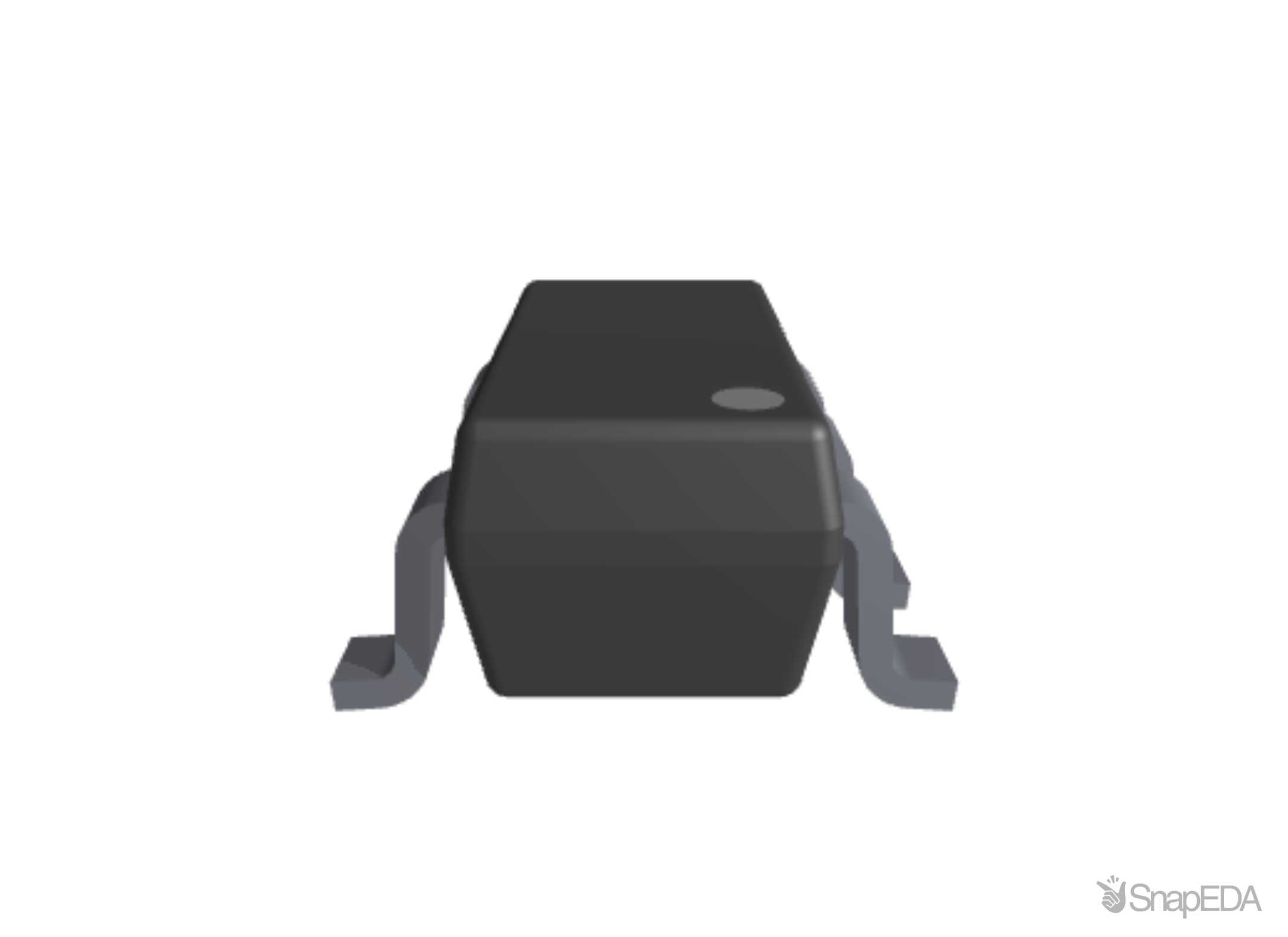

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the TLV70218DBVT
| Part Name | TLV70218DBVT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Dimensions | 3.05 x 1.75 x 1.3 (mm) |
| Regulator Type | Low Dropout Voltage |
| Width | 1.75 (mm) |
| Accuracy | 2 (%) |
| Number Of Outputs | 1 |
| Load Regulation | 15 mV |
| Output Type | Fixed |
| Package Type | SOT-23 |
| Maximum Operating Temperature | +125 °C |
| Quiescent Current (A) | 35 (µA) |
| Line Regulation | 5 mV |
| Length | 3.05 (mm) |
| Pin Count | 5 |
| Mounting Type | Surface Mount |
| Height | 1.3 (mm) |
| Output Voltage (V) | 1.8 V |
| Minimum Operating Temperature | -40 °C |
| Power Rating | 500 (mW) |
| Maximum Output Current (A) | 300 (mA) |
| Maximum Input Voltage (V) | 5.5 V |
| Minimum Input Voltage (V) | 2 V |
Inventory for the TLV70218DBVT by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
10,526
|
|
Visit Site | |
|
★ Featured
|
1,842
|
|
Visit Site | |
|
★ Featured
|
158,110
|
8,750 x $0.03
|
Visit Site | |
| Texas Instruments |
123,040
|
|
Visit Site |
No issues have been reported for the TLV70218DBVT
If you experienced any issues with the symbol or footprint, please report it.
