TMK107BJ474KAHT
Cap Ceramic 0.47µF 25V X5R ±10% Pad SMD 0603 85°C Automotive Tape & Reel
Availability: In Stock
Package Type: 1608
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TMK107BJ474KAHT by Taiyo Yuden and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

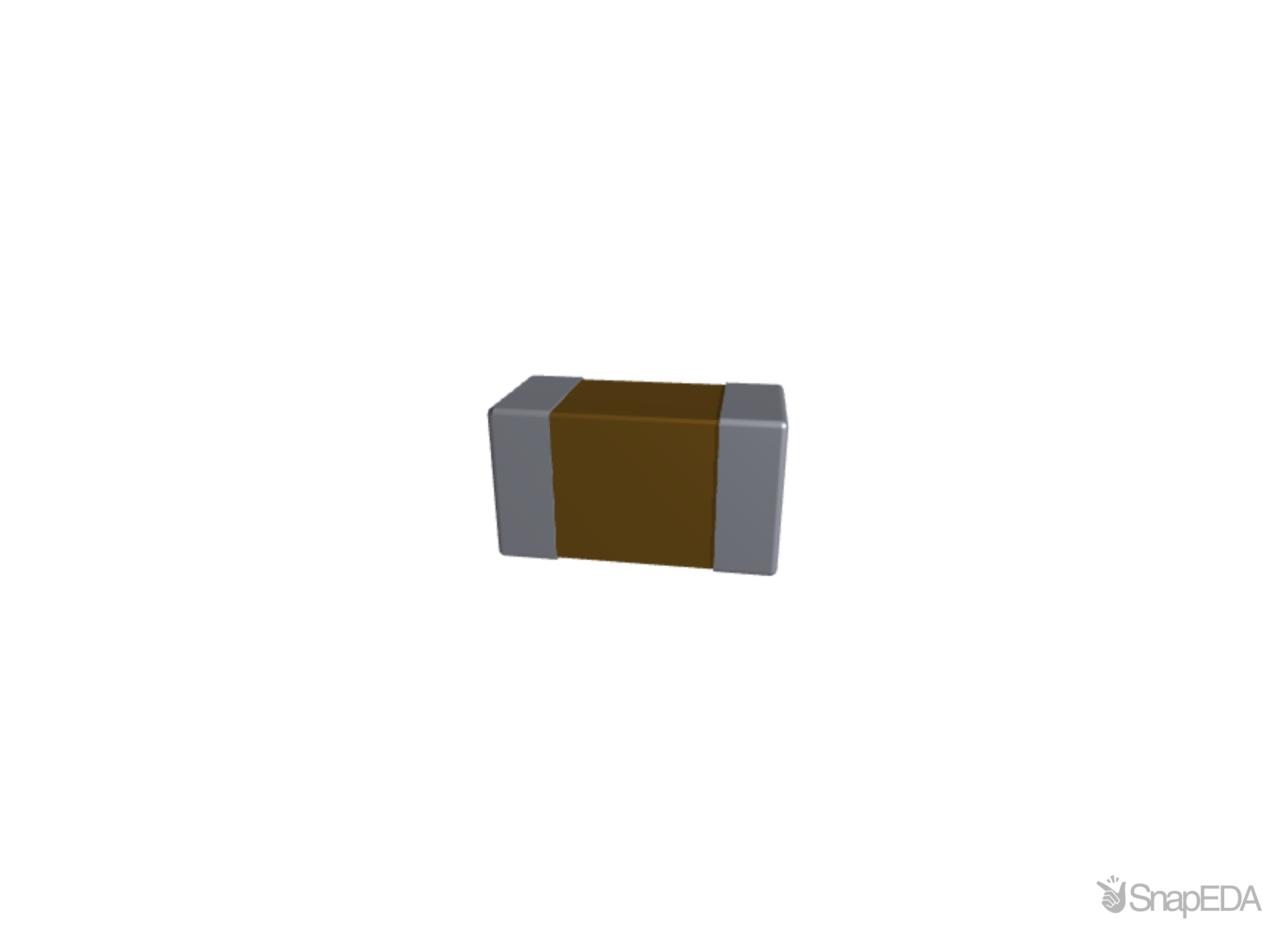

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TMK107BJ474KAHT
| Part Name | TMK107BJ474KAHT |
| Manufacturer | Taiyo Yuden |
| CapacitanceTolerance(%) | [10, -10] |
| Capacitance(pF) | 470000.0 |
| Series | M |
| RatedVoltage(V) (V) | 25 |
| TemperatureCoefficient | X5R |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Automotive Standard | AEC-Q200 |
| Dimensions | 1.6 x 0.8 x 0.8 (mm) |
| Mounting Type | Surface Mount |
| Package Case | 0603 (1608M) |
| Series | M |
| Depth | 0.8 (mm) |
| Height | 0.8 (mm) |
| Capacitance | 470 (nF) |
| Length | 1.6 (mm) |
| Voltage (V) | 25 (V dc) |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Operating Temperature | +85 (°C) |
| Tolerance | ±10 (%) |
| Terminal Type | Solder |
| Dielectric | X5R |
