TMLM 04115
4 Watt AC/DC modules, industrial, 85-264 VAC input, encapsulated, PCB mount
Availability: In Stock
Package Type: THD-7
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TMLM 04115 by Traco Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

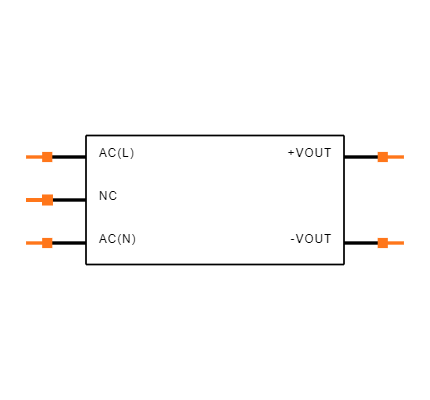

Symbol
No web preview
This Symbol is Available for

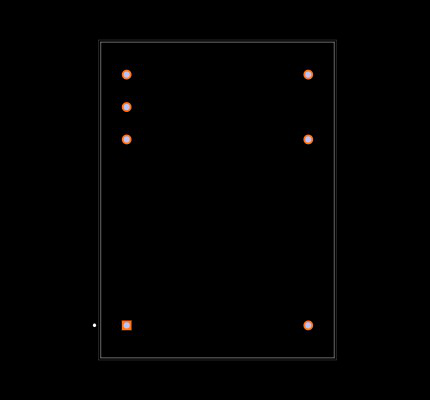

Footprint
No web preview
This Footprint is Available for

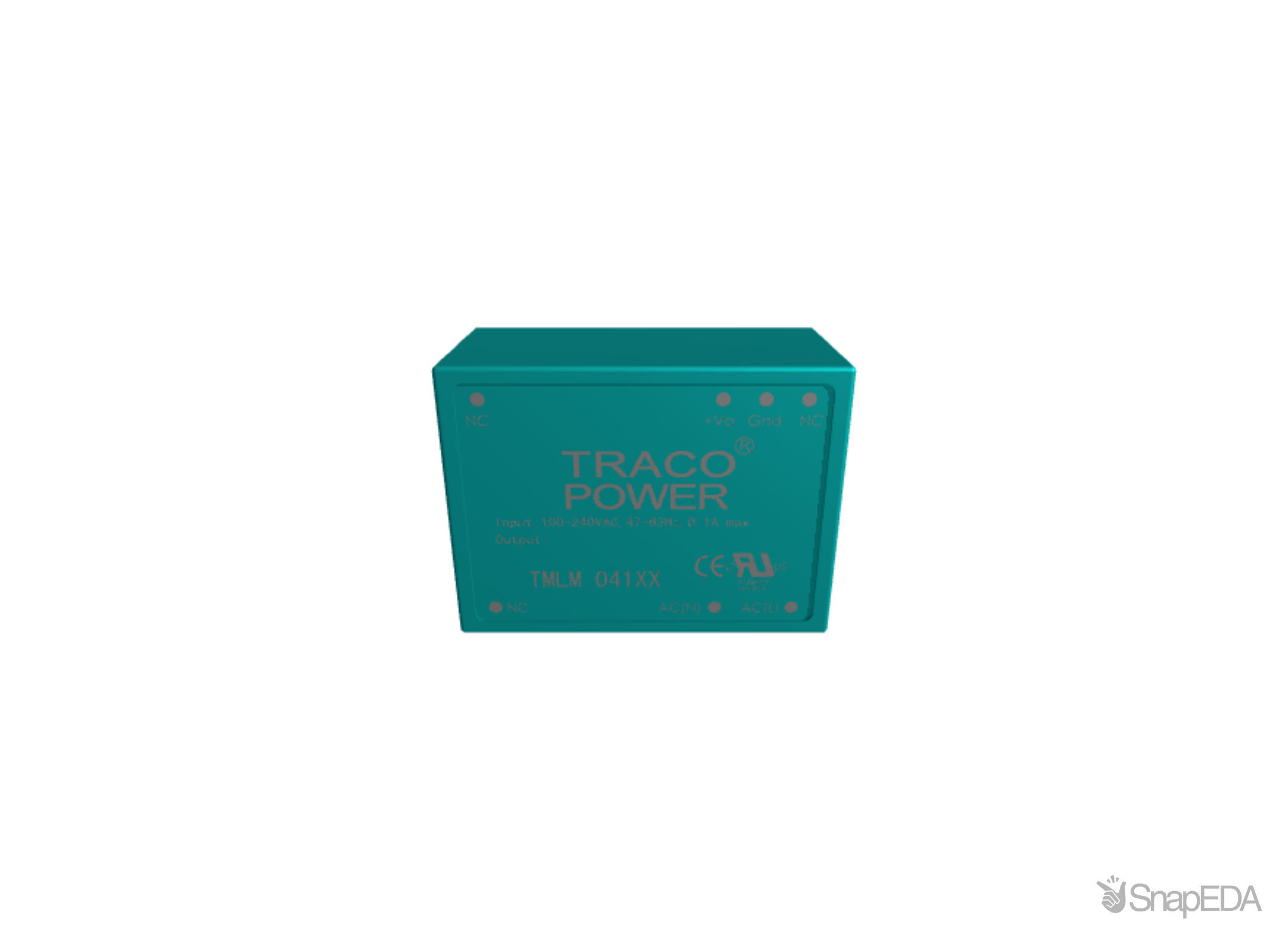

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TMLM 04115
| Part Name | TMLM 04115 |
| Manufacturer | Traco Power |
| Category | Power Products |
| Number of Outputs | single |
| Product Width | 27.0 |
| GTIN | 7613441029351 |
| Mounting Type | PCB Mount |
| Adjustable output? | No |
| Isolation Voltage Input and Output (V) | 3000 VAC |
| Power | 4.0 |
| Insulation System | Reinforced Insulation |
| REACH | Yes |
| Product Height | 17.1 |
| Efficiency | 74.0 |
| Housing Type | Plastic Case |
| Remote on-off function? | No |
| Product Length | 36.5 |
| ESD Sensitive | No |
| Protection Class | Class II |
| Iout | 267 |
| Warranty Period | 3-year |
| Temperature Range Max. | 60 |
| Comformity | https://www.tracopower.com/ch/conformity-regulatory |
| Footprint Type | Others |
| RoHS | Yes |
| Vout | 15 |
| Family | AC/DC Power Supply |
| Series Name | TMLM |
| Lifecycle Status | Active |
| Vin | 90-264 |
| high_runner | TRUE |
| Weight | 26.0 |
| Temperature Range Min. | -25 |
| Connection Type | THD (Through-Hole Device) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
