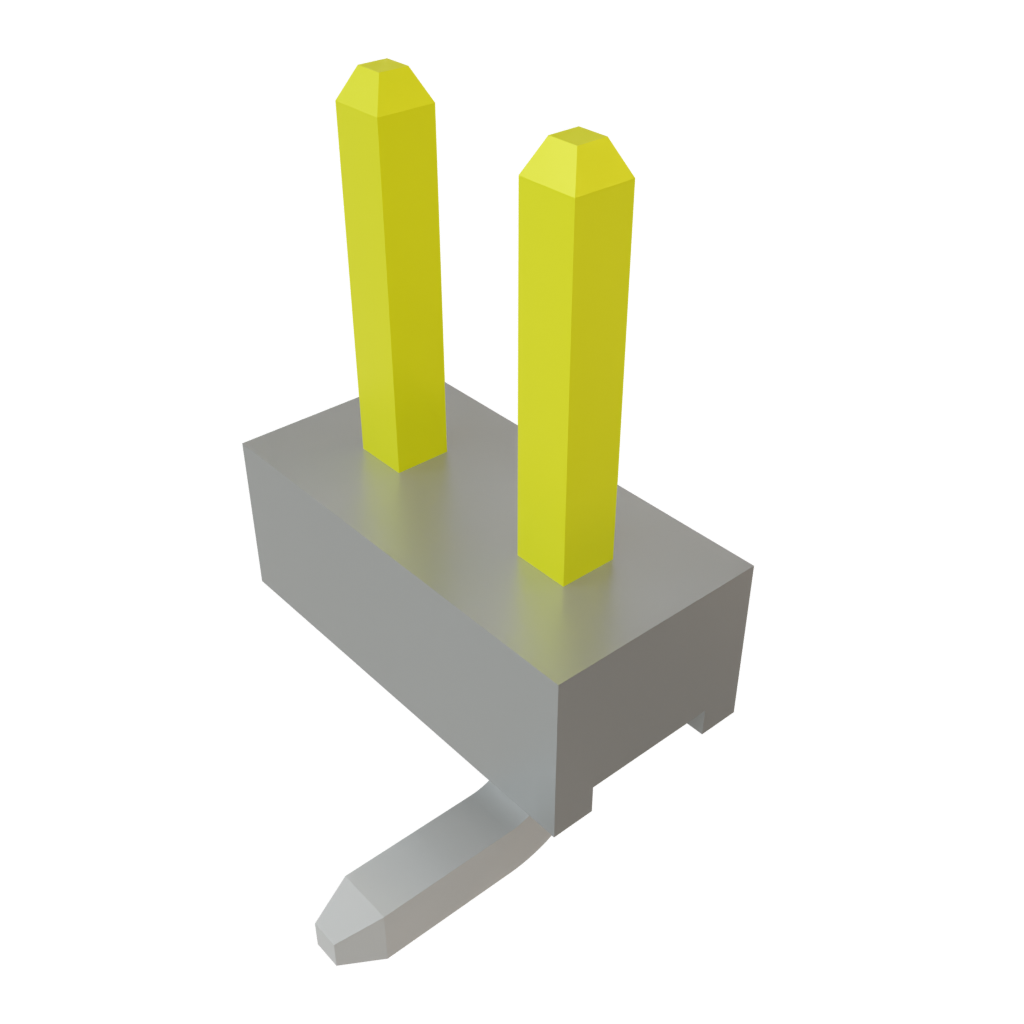

TMM-102-01-F-S-SM
SnapVerified
Connector Header Surface Mount 2 position 0.079" (2.00mm)
Availability: In Stock
Country of Origin: Vietnam
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TMM-102-01-F-S-SM by Samtec Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TMM-102-01-F-S-SM
| Part Name | TMM-102-01-F-S-SM |
| Manufacturer | Samtec |
| HTS Number | 8536.69 |
| ECCN Category | EAR99 |
| Series | TMM |
| Country of Origin | Vietnam |
| Packaging | Bulk |
| Life Cycle Status | Production |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Tail Pin Length | 1.27 (mm) |
| Current Rating (A) | 3.0 (A) |
| Shrouded Unshrouded | Unshrouded |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 250.0 V , 281.0 V ac |
| Series | TMM |
| Body Orientation | Straight |
| Pitch | 2.0 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Contact Plating | Gold |
| Termination Method | Solder |
| Mating Pin Length | 3.2 (mm) |
| Number Of Contacts | 2 |
| Contact Material | Phosphor Bronze |
Inventory for the TMM-102-01-F-S-SM by Samtec Inc. from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,084
|
|
Visit Site | |
|
★ Featured
|
1,629
|
|
Visit Site | |
|
★ Featured
|
6,000
|
3,115 x $0.11
|
Visit Site | |
| Onlinecomponents |
182
|
|
Visit Site | |
|
★ Featured
|
|
|
Visit Site | |
| Verical |
119
|
|
Visit Site |
No issues have been reported for the TMM-102-01-F-S-SM
If you experienced any issues with the symbol or footprint, please report it.
