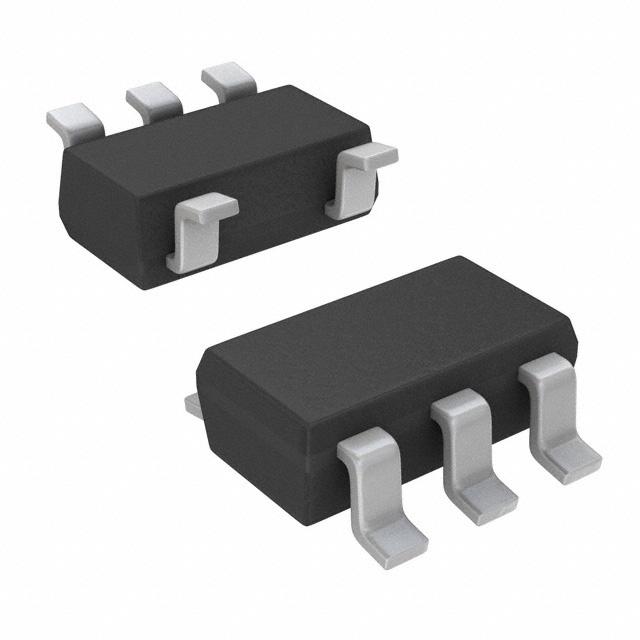

TMP235A4DCKT
1C analog temperature sensor, 10 mV/C
Availability: In Stock
Package Type: SC70-5
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TMP235A4DCKT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

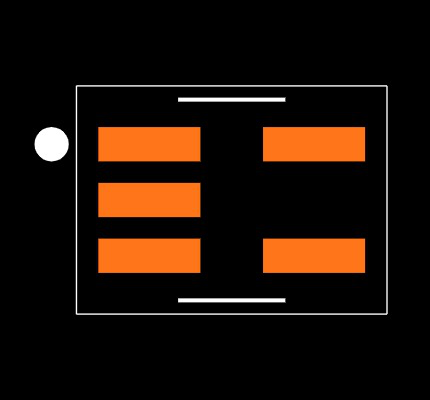

Footprint
No web preview
This Footprint is Available for

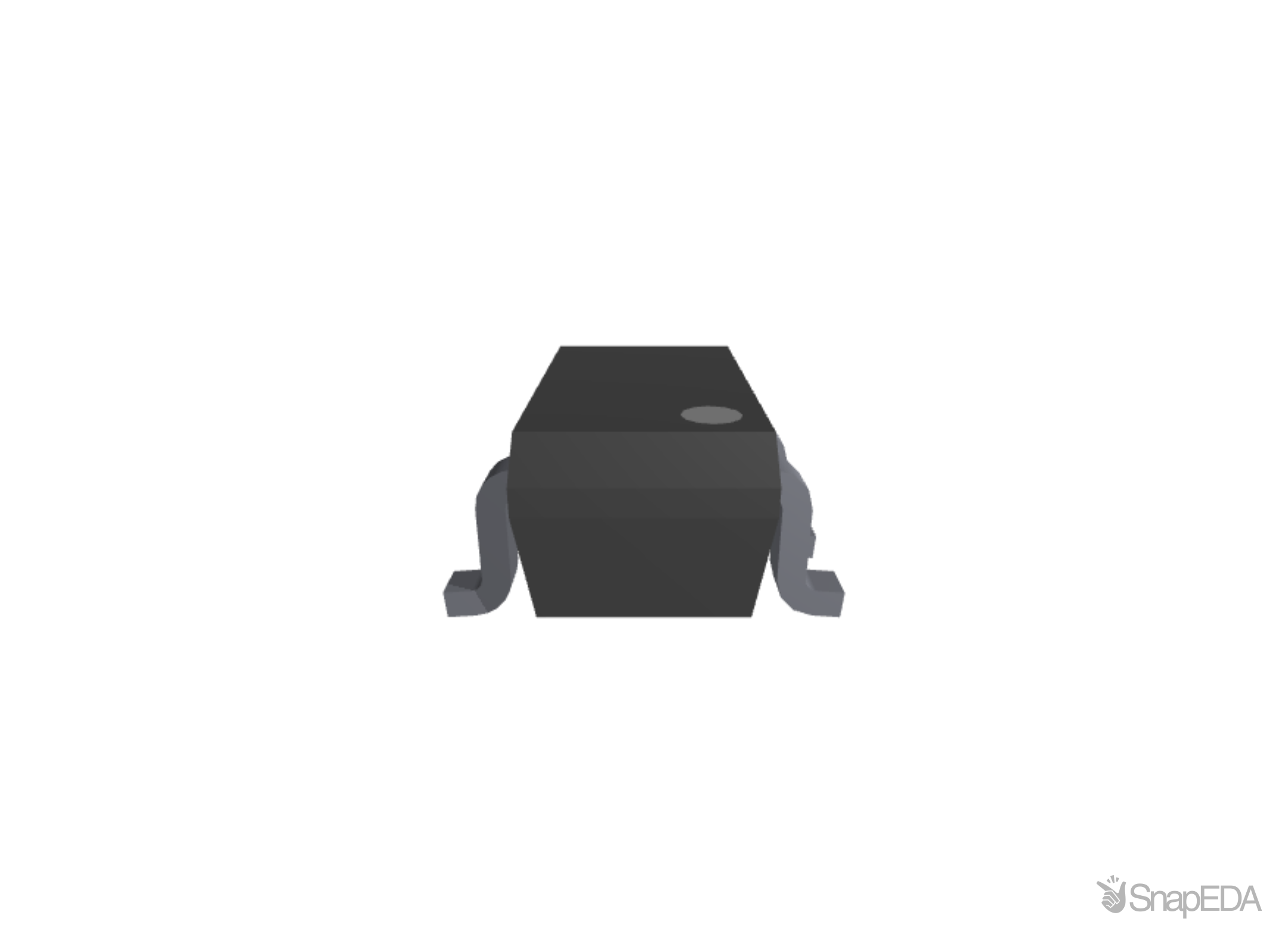

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TMP235A4DCKT
| Part Name | TMP235A4DCKT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Surface Mount |
| Dimensions | 2.15 x 1.4 x 1 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Operating Temperature Range | -40 → +150 °C |
| Series | TMP23x |
| Minimum Operating Supply Voltage (V) | 2.3 V |
| Output Type | CMOS |
| Height | 1 (mm) |
| Width | 1.4 (mm) |
| Length | 2.15 (mm) |
| Sensor Function | Temperature |
| Sensor Gain | 10 (mV/°C) |
| Interface Type | Analogue |
| Minimum Operating Temperature | -40 °C |
| Package Type | SC-70 |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 5 |
| Accuracy | ±1 (°C) |
Inventory for the TMP235A4DCKT by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
N/A | Visit Site | |
|
★ Featured
|
209,600
|
2,960 x $0.12
|
Visit Site | |
| Arrow Electronics |
2
|
1 x $0.38
|
Visit Site | |
| Texas Instruments |
168,741
|
|
Visit Site |
No issues have been reported for the TMP235A4DCKT
If you experienced any issues with the symbol or footprint, please report it.
