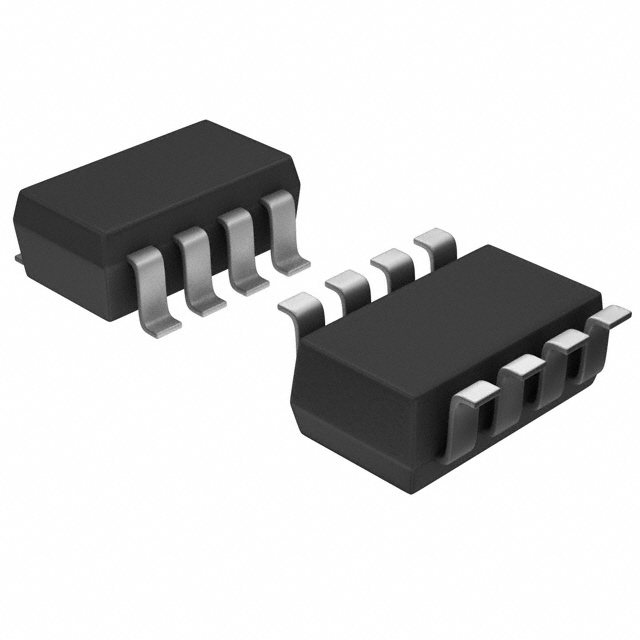

TMP441AIDCNT
Multi-Address Remote and Local Temp Sensor with Auto Beta, N-Factor and Series-R Correction in SOT23
Availability: In Stock
Package Type: SOT-23-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TMP441AIDCNT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

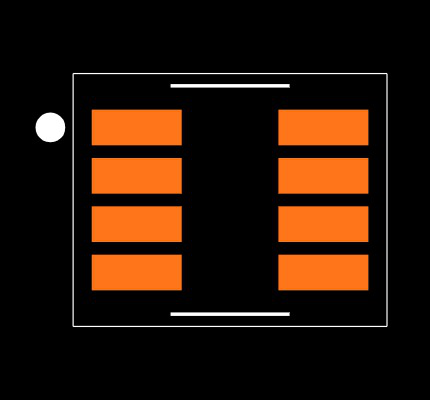

Footprint
No web preview
This Footprint is Available for

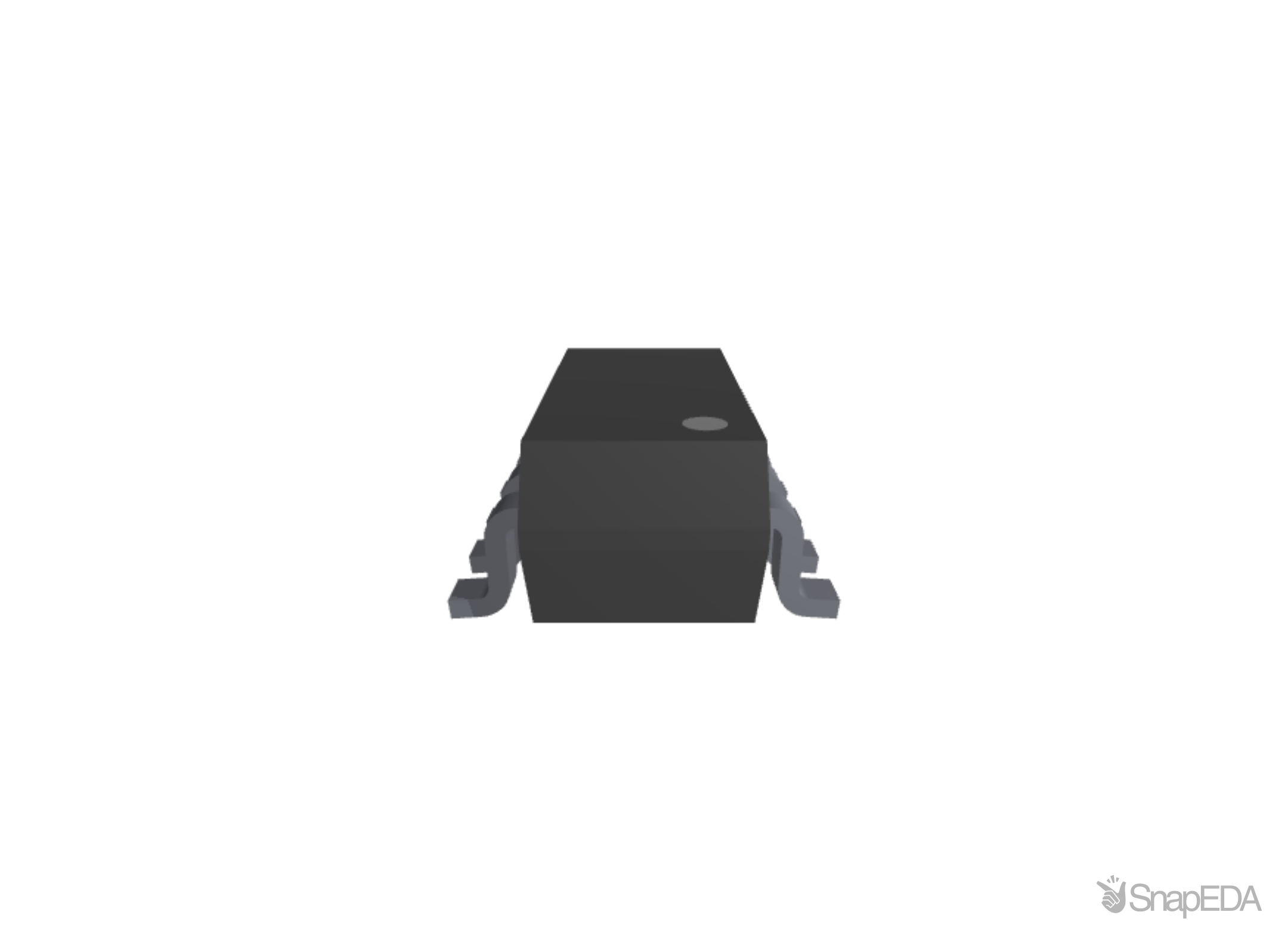

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TMP441AIDCNT
| Part Name | TMP441AIDCNT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 3 x 1.75 x 1.3 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Operating Temperature Range | -40 to +125 °C |
| Resolution | 12 bit |
| Minimum Operating Supply Voltage (V) | 2.7 V |
| Output Type | Analogue |
| Height | 1.3 (mm) |
| Width | 1.75 (mm) |
| Length | 3 (mm) |
| Sensor Function | Temperature |
| Package Type | SOT-23 |
| Interface Type | Serial-I2C, SMBus |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 8 |
| Accuracy | ±1 (°C) |
