TMP708AIDBVT
Resistor-programmable temperature switch with 10°C and 30°C hysteresis
Availability: In Stock
Package Type: SOT-23-5
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TMP708AIDBVT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

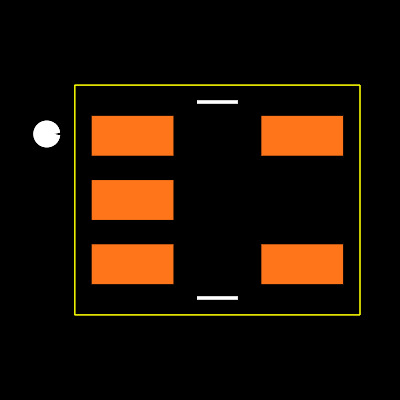

Footprint
No web preview
This Footprint is Available for

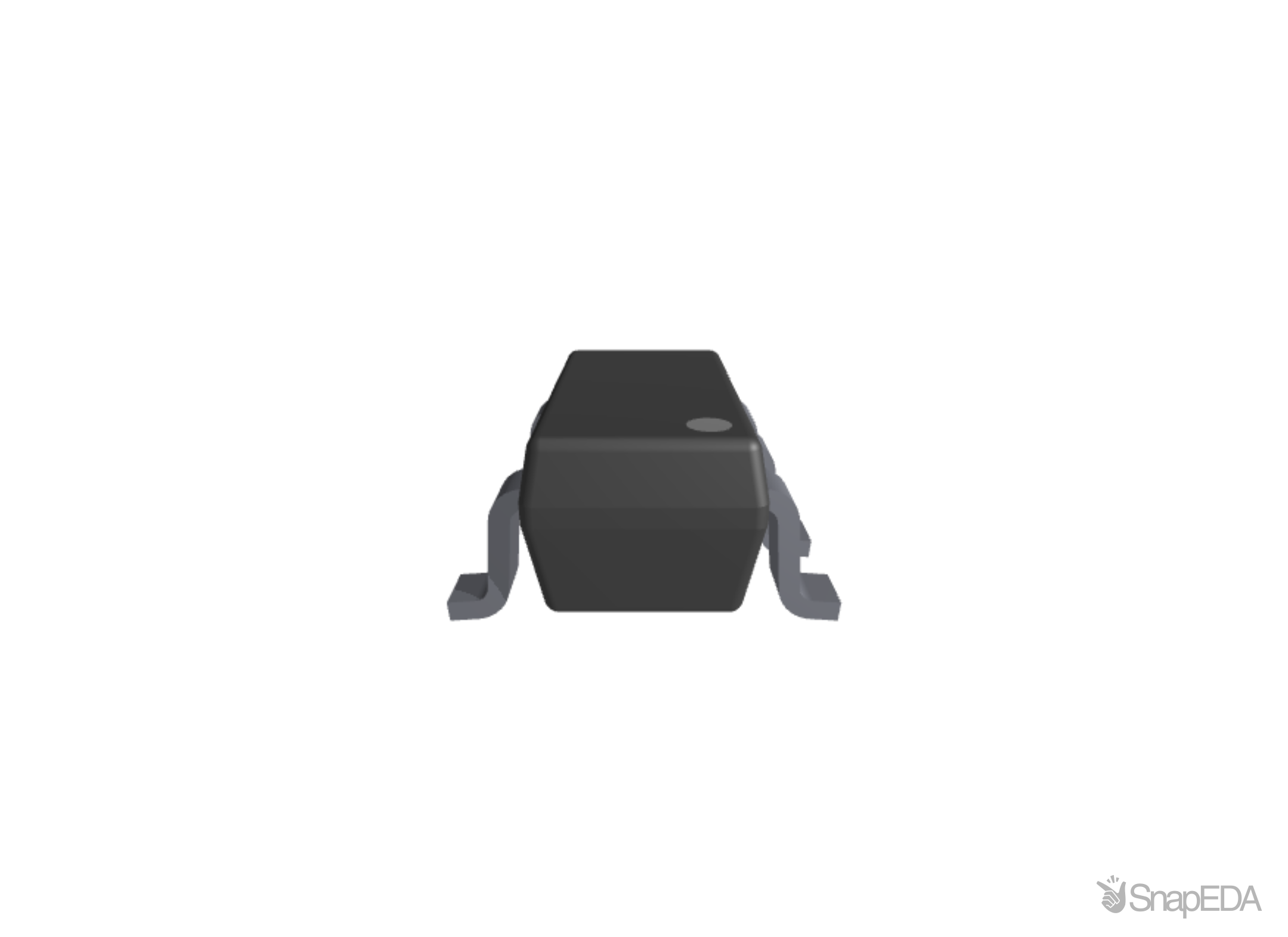

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TMP708AIDBVT
| Part Name | TMP708AIDBVT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 3.05 x 1.75 x 1.45 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Operating Temperature Range | -40 → +125 °C |
| Minimum Operating Supply Voltage (V) | 2.7 V |
| Output Type | Open Drain |
| Height | 1.45 (mm) |
| Width | 1.75 (mm) |
| Length | 3.05 (mm) |
| Package Type | SOT-23 |
| Sensor Function | Temperature Switch |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 5 |
| Accuracy | ±3 (°C) |
