TMR 2-4822WIN
2 Watt DC/DC converter, industrial, 4:1 input, regulated, optimized design, 1600 VDC I/O-isolation, encapsulated, SIP-8
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TMR 2-4822WIN by Traco Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

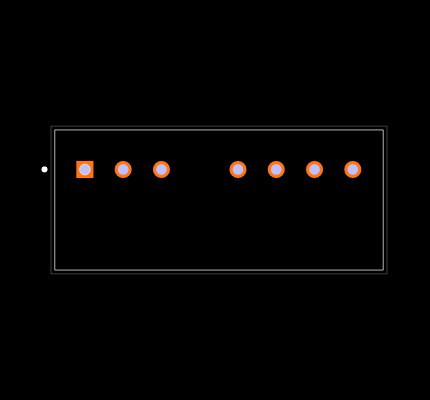

Footprint
No web preview
This Footprint is Available for

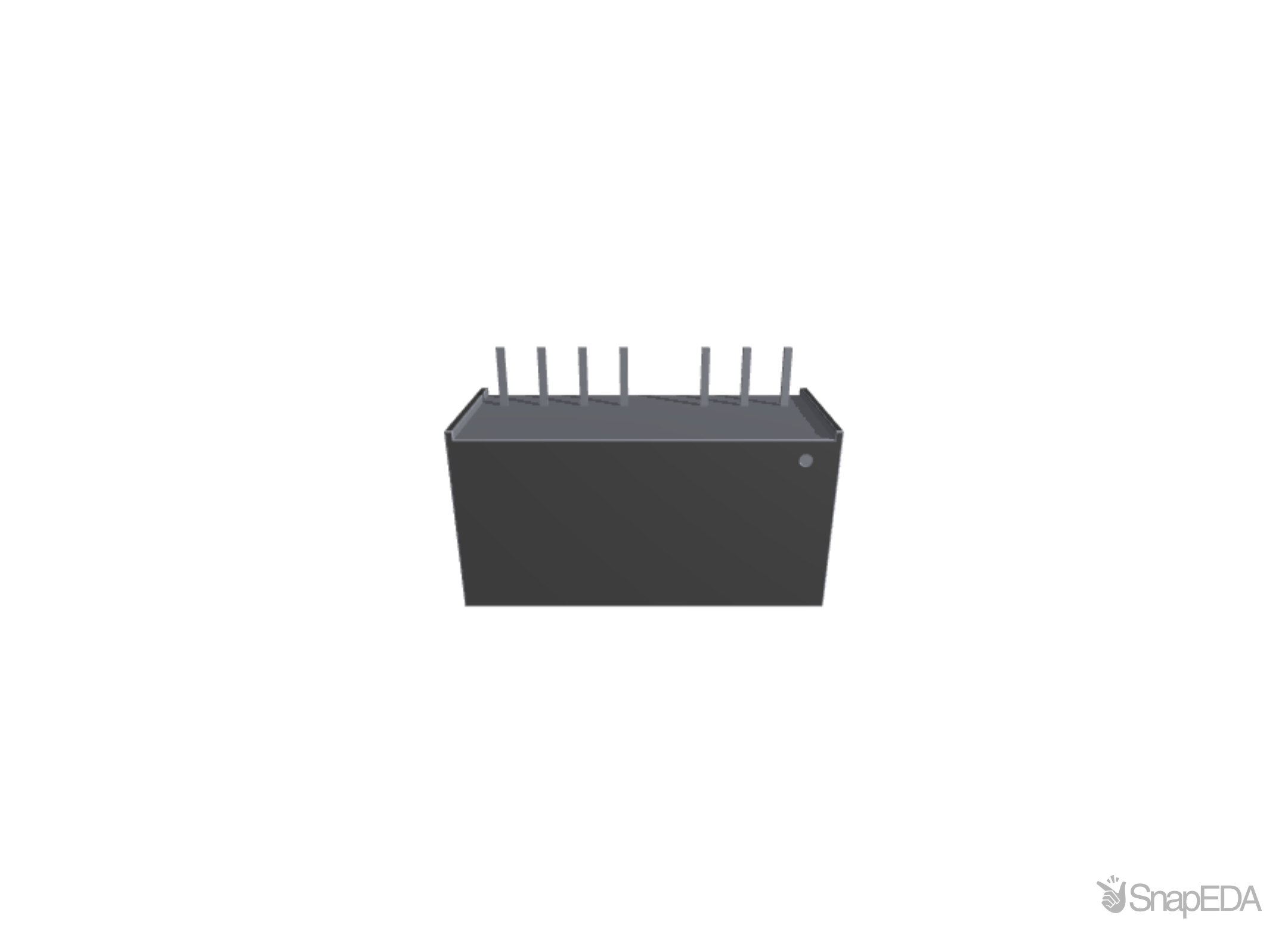

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TMR 2-4822WIN
| Part Name | TMR 2-4822WIN |
| Manufacturer | Traco Power |
| Category | Power Products |
| Number of Outputs | dual |
| Product Width | 9.3 |
| GTIN | 7613441031996 |
| Mounting Type | PCB Mount |
| Adjustable output? | No |
| Isolation Voltage Input and Output (V) | 1500 VDC |
| Power | 2.0 |
| Insulation System | Functional Insulation |
| REACH | Yes |
| Product Height | 11.2 |
| Efficiency | 82.0 |
| Housing Type | Plastic Case |
| Remote on-off function? | Yes |
| Product Length | 21.8 |
| ESD Sensitive | No |
| Iout | 83/83 |
| Warranty Period | 3-year |
| Temperature Range Max. | 90 |
| Comformity | https://www.tracopower.com/ch/conformity-regulatory |
| Footprint Type | SIP8 |
| RoHS | Yes |
| Life Cycle Status | Not Recommended for New Designs |
| Vout | ±12 |
| Family | DC/DC Converter isolated, regulated |
| Series Name | TMR 2WIN |
| Lifecycle Status | Active |
| Vin | 18-75 |
| high_runner | TRUE |
| Weight | 4.66 |
| Temperature Range Min. | -40 |
| Connection Type | THD (Through-Hole Device) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the TMR 2-4822WIN by Traco Power from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
10 x $16.87
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Conrad |
|
|
Visit Site | |
| CoreStaff |
10
|
|
Visit Site | |
| Farnell UK |
|
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| Newark |
|
1 x $22.25
|
Visit Site | |
| RS UK |
|
|
Visit Site | |
| TME |
|
|
Visit Site | |
| TRC Electronics |
|
|
Visit Site | |
| Verical |
10
|
9 x $8.50
|
Visit Site | |
| element14 Singapore |
|
|
Visit Site |
No issues have been reported for the TMR 2-4822WIN
