TOP252GN
Converter Offline Flyback Topology 66kHz SMD-8C
Availability: In Stock
Package Type: SMD-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TOP252GN by Power Integrations and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

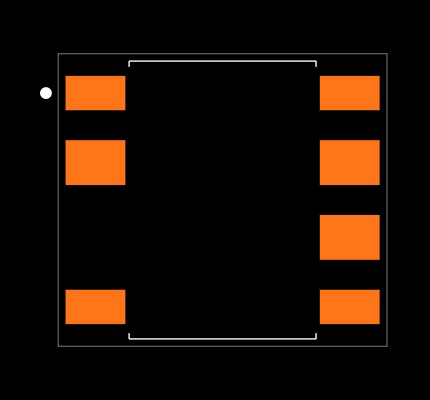

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TOP252GN
| Part Name | TOP252GN |
| Manufacturer | Power Integrations |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Power Switch Type | Off Line Switcher |
| Dimensions | 9.83 x 6.6 x 3.68 (mm) |
| Mounting Type | Surface Mount |
| Package Type | PDIP SMD |
| Minimum Operating Temperature | -40 °C |
| Power Rating | 21 (W) |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 7 |
