TOS 06-05SM
6 Amp POL switching regulator, wide input range, non-isolated, pos.-pos. circuit, open frame, SMD package
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TOS 06-05SM by Traco Power and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

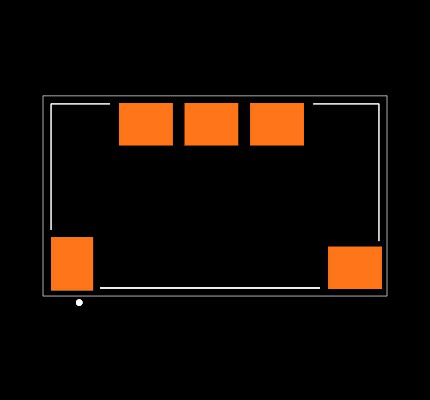

Footprint
No web preview
This Footprint is Available for

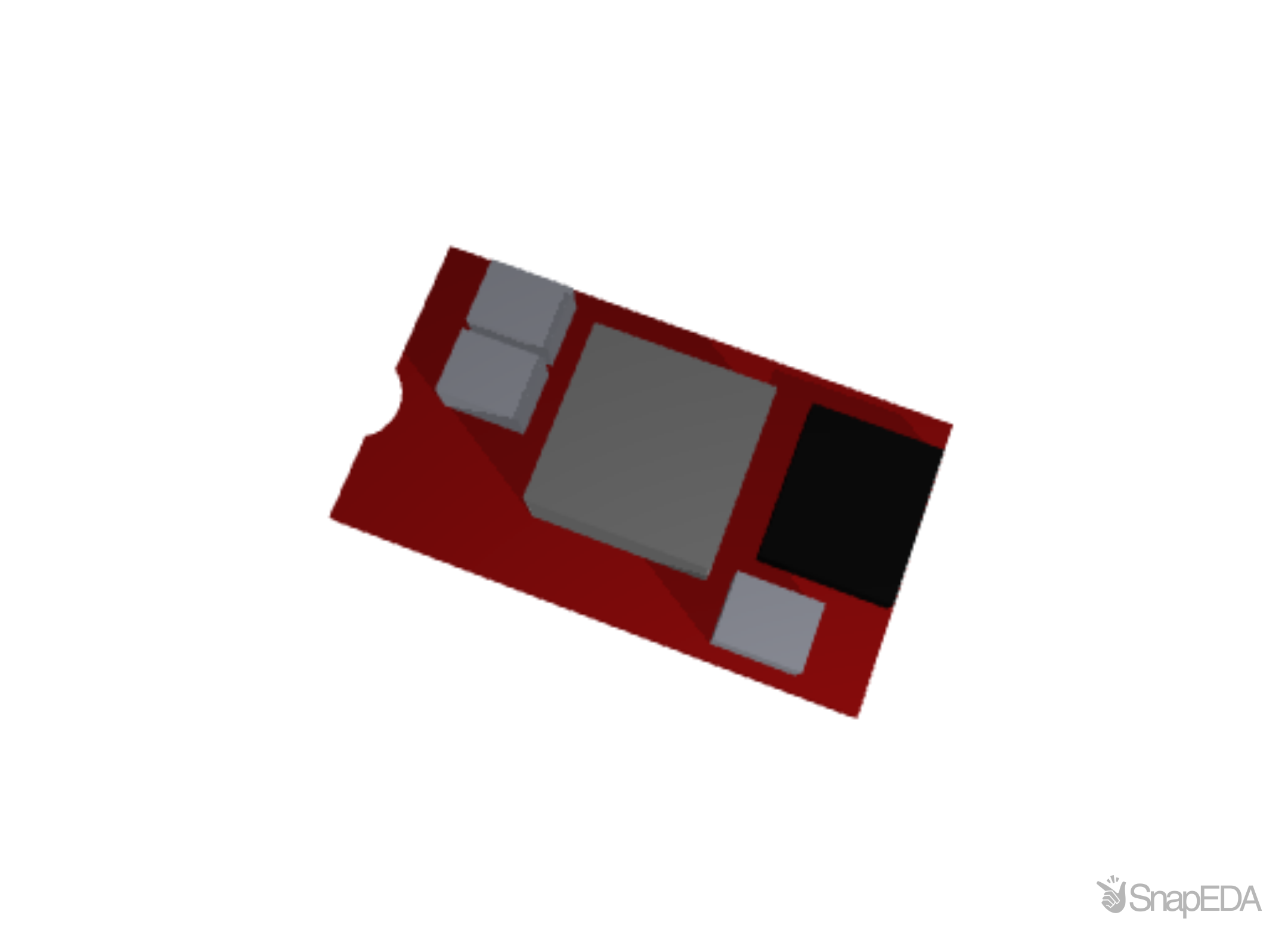

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TOS 06-05SM
| Part Name | TOS 06-05SM |
| Manufacturer | Traco Power |
| Number of Outputs | single |
| Product Width | 11.4 |
| GTIN | 7613441038995 |
| Adjustable output? | Yes |
| Vout | 0.75 |
| Insulation System | Non-isolated |
| REACH | Yes |
| Product Height | 5.4 |
| Efficiency | 94.0 |
| Housing Type | Open Frame |
| Family | DC/DC Converter non-isolated (POL) |
| Remote on-off function? | Yes |
| Product Length | 20.3 |
| ESD Sensitive | No |
| Iout | 6000 |
| Warranty Period | 3-year |
| Temperature Range Max. | 85 |
| Comformity | https://www.tracopower.com/ch/conformity-regulatory |
| Footprint Type | Others |
| RoHS | Yes |
| Weight | 2.8 |
| Mounting Type | PCB Mount |
| Series Name | TOS |
| Lifecycle Status | Active |
| Vin | 2.4-5.5 |
| high_runner | TRUE |
| Temperature Range Min. | -40 |
| MSL level | Level 2a (JSTD033C) |
| Connection Type | SMD (Surface-Mount Device) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the TOS 06-05SM by Traco Power from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
97
|
|
Visit Site | |
|
★ Featured
|
21
|
|
Visit Site | |
| Sager |
940
|
|
Visit Site |
No issues have been reported for the TOS 06-05SM
If you experienced any issues with the symbol or footprint, please report it.
