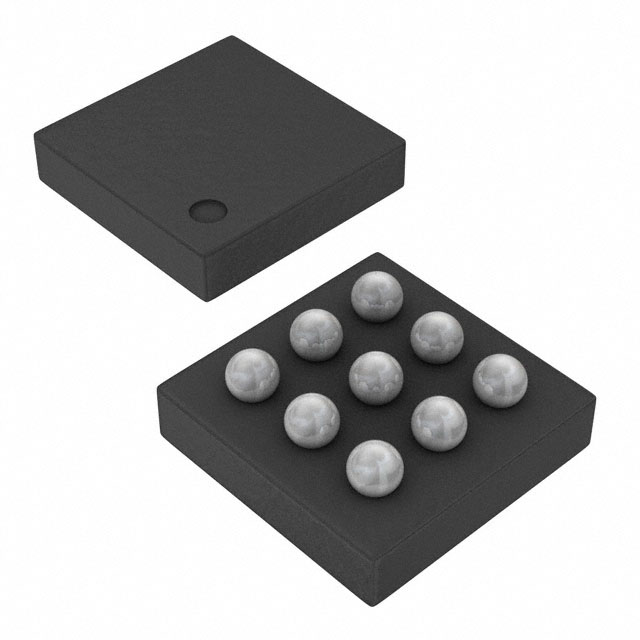

TPA2011D1YFFT
3.2-W, mono, analog input Class-D audio amplifier with auto-recovering short-circuit protection
Availability: In Stock
Package Type: DSBGA-9
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPA2011D1YFFT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPA2011D1YFFT
| Part Name | TPA2011D1YFFT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Cmrr | 79 (dB) |
| Maximum Power | 1.8 W @ 8 Ω, 3.2 W @ 4 Ω |
| Dimensions | 1.21 x 1.16 x 0.325 (mm) |
| Mounting Type | Surface Mount |
| Application | Cellular Phone, GPS, Portable Audio Equipment |
| Power Supply Type | Single |
| Number Of Channels Per Chip | 1 |
| Output Type | 1 Channel Mono |
| Input Signal Type | Differential |
| Typical Single Supply Voltage (V) | 2.5 → 5.5 V |
| Package Type | WSCP |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | Class-D |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 9 |
| Output Signal Type | Differential |
Inventory for the TPA2011D1YFFT by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
925
|
|
Visit Site | |
|
★ Featured
|
342,000
|
2,440 x $0.12
|
Visit Site | |
| Texas Instruments |
|
|
Visit Site |
No issues have been reported for the TPA2011D1YFFT
