TPA311D
350-mW, mono, Class-AB audio amplifier with bridge tied load to single-ended switching mode
Availability: In Stock
Package Type: SOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPA311D by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

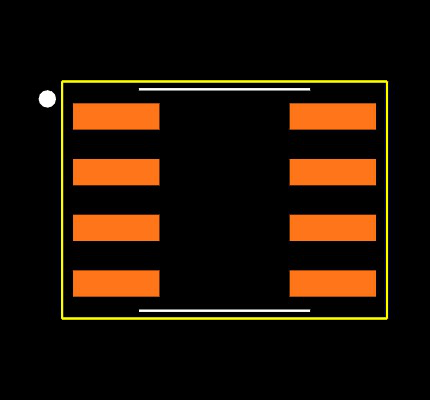

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPA311D
| Part Name | TPA311D |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Amplifier Class | Class A-B |
| Maximum Power | 0.35 (W) |
| Output Signal Type | Differential, Single Ended |
| Mounting Type | Surface Mount |
| Application | Speaker |
| Power Supply Type | Single |
| Typical Gain Bandwidth Product | 1.4 (MHz) |
| Output Type | 1 Channel Mono, 2 Channel Stereo |
| Input Signal Type | Single Ended |
| Typical Single Supply Voltage (V) | 3 V, 5 V |
| Package Type | SOIC |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | Audio Power Amplifier |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
| Dimensions | 4.9 x 3.91 x 1.58 (mm) |
Inventory for the TPA311D by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
462
|
|
Visit Site | |
|
★ Featured
|
17
|
|
Visit Site | |
|
★ Featured
|
245
|
375 x $0.81
|
Visit Site | |
| Arrow Europe |
375
|
75 x $0.78
|
Visit Site | |
| Texas Instruments |
5,790
|
|
Visit Site |
No issues have been reported for the TPA311D
