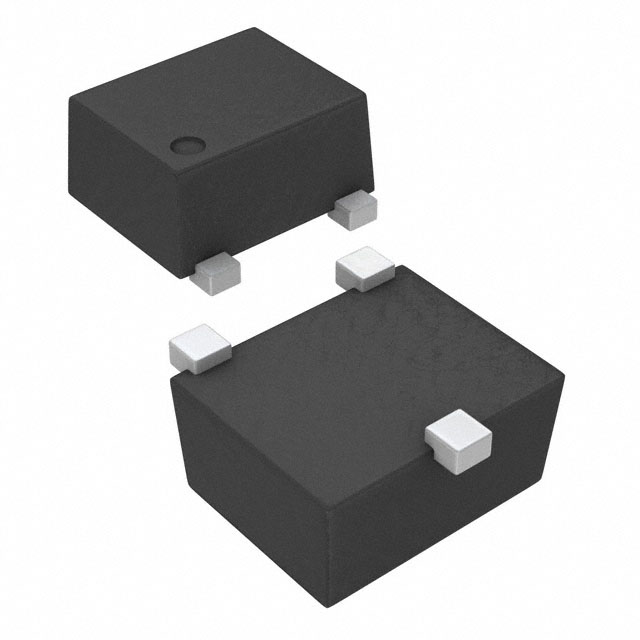

TPD2EUSB30ADRTR
Dual 0.7-pF, 3.6-V, ±8-kV ESD protection diode with 5-A surge rating for USB 3.0
Availability: In Stock
Package Type: SOT-9X3-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPD2EUSB30ADRTR by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPD2EUSB30ADRTR
| Part Name | TPD2EUSB30ADRTR |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Reverse Stand Off Voltage (V) | 5.5 (V) |
| Maximum Peak Pulse Current (A) | 5 (A) |
| Dimensions | 1.05 x 0.85 x 0.45 (mm) |
| Minimum Breakdown Voltage (V) | 7 (V) |
| Direction Type | Uni-Directional |
| Diode Configuration | Complex Array |
| Esd Protection | Yes |
| Maximum Clamping Voltage (V) | 8 (V) |
| Width | 0.85 (mm) |
| Length | 1.05 (mm) |
| Package Type | SOT-9X3 |
| Number Of Elements Per Chip | 2 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Height | 0.45 (mm) |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 3 |
| Peak Pulse Power Dissipation | 45 (W) |
| Test Current (A) | 1 (mA) |
Inventory for the TPD2EUSB30ADRTR by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Texas Instruments |
50,378
|
|
Visit Site |
No issues have been reported for the TPD2EUSB30ADRTR
