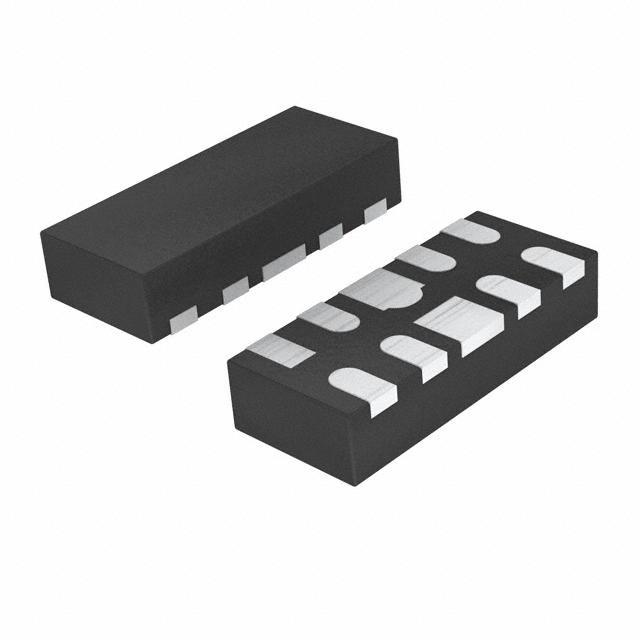

TPD4E02B04DQAR
Quad 0.25-pF, ±3.6-V, ±12-kV ESD protection diode for USB 3.0, HDMI 2.0 & High Speed Signals
Availability: In Stock
Package Type: USON-10
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPD4E02B04DQAR by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPD4E02B04DQAR
| Part Name | TPD4E02B04DQAR |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Reverse Stand-Off Voltage (V) | 3.6 (V) |
| Dimensions | 2.6 x 1.1 x 0.5 (mm) |
| Esd Protection | Yes |
| Width | 1.1 (mm) |
| Height | 0.5 (mm) |
| Diode Configuration | Quad |
| Test Current (A) | 5 (A) |
| Maximum Peak Pulse Current (A) | 2 (A) |
| Minimum Breakdown Voltage (V) | 5.5 (V) |
| Surge Current Rating (A) | 2 (A) |
| Maximum Reverse Leakage Current (A) | 10 (nA) |
| Direction Type | Bi-Directional |
| Package Type | USON |
| Number Of Elements Per Chip | 4 |
| Maximum Operating Temperature | +125 °C |
| Length | 2.6 (mm) |
| Pin Count | 10 |
| Peak Pulse Power Dissipation | 17 (W) |
| Mounting Type | Surface Mount |
| Capacitance | 0.33 (pF) |
| Maximum Clamping Voltage (V) | 8.8 (V) |
| Minimum Operating Temperature | -40 °C |
Inventory for the TPD4E02B04DQAR by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
6,080
|
|
Visit Site | |
|
★ Featured
|
14,139
|
|
Visit Site | |
|
★ Featured
|
114,410
|
5,255 x $0.06
|
Visit Site | |
| Arrow Europe |
27,000
|
|
Visit Site | |
| Texas Instruments |
5,522,879
|
|
Visit Site | |
| Verical |
48
|
36 x $0.33
|
Visit Site |
No issues have been reported for the TPD4E02B04DQAR
