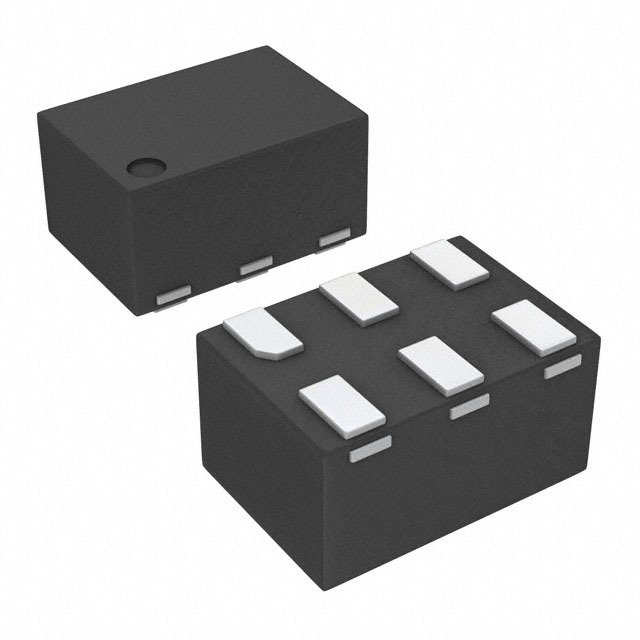

TPD4S012DRYR
Quad 0.8-pF, 5.5-V, ±10-kV ESD protection diode with 15-V tolerant Vbus for USB Interface<
Availability: In Stock
Package Type: USON-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPD4S012DRYR by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPD4S012DRYR
| Part Name | TPD4S012DRYR |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Peak Pulse Current (A) | 3 (A) |
| Dimensions | 1.5 x 1.05 x 0.55 (mm) |
| Minimum Breakdown Voltage (V) | 20 (V) |
| Esd Protection | Yes |
| Maximum Operating Temperature | +85 °C |
| Direction Type | Uni-Directional |
| Height | 0.55 (mm) |
| Width | 1.05 (mm) |
| Length | 1.5 (mm) |
| Package Type | SON |
| Number Of Elements Per Chip | 3 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Diode Configuration | Complex Array |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 60 (W) |
| Test Current (A) | 1 (mA) |
