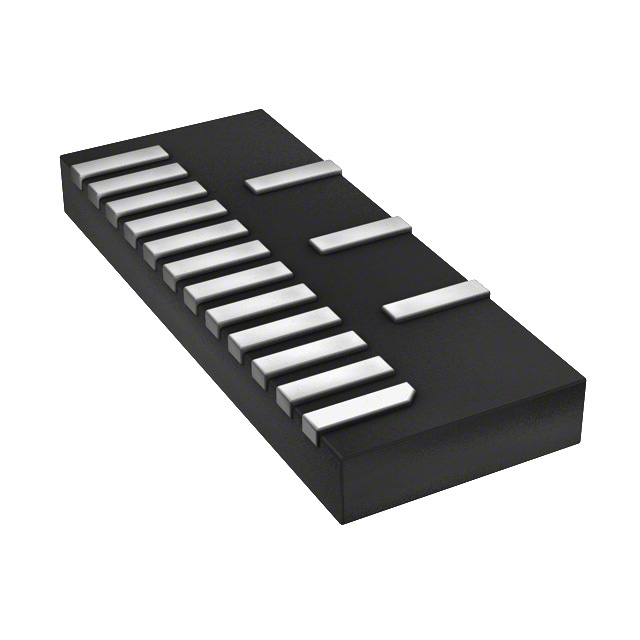

TPD8S009DSMR
8 channel 0.8-pF, 5.5-V, ±8-kV ESD protection diode for HDMI & Displayport
Availability: In Stock
Package Type: WSON-15
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPD8S009DSMR by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for

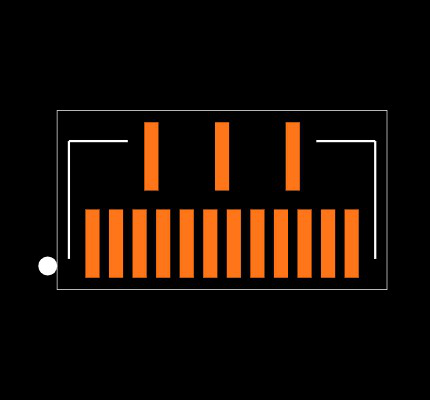

Footprint
No web preview
This Footprint is Available for

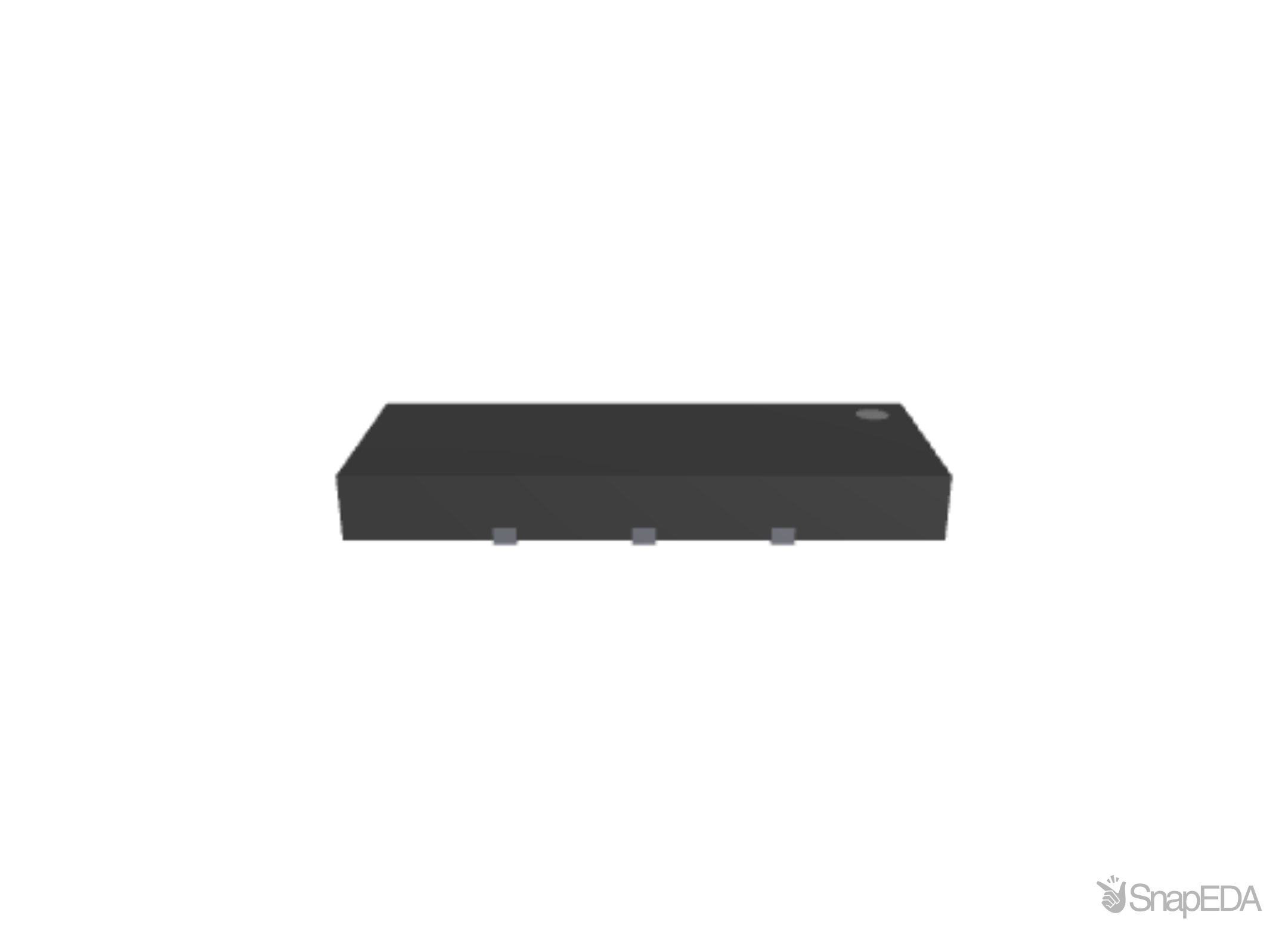

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPD8S009DSMR
| Part Name | TPD8S009DSMR |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Reverse Stand Off Voltage (V) | 5.5 (V) |
| Maximum Peak Pulse Current (A) | 2.5 (A) |
| Dimensions | 6.6 x 2.6 x 0.75 (mm) |
| Minimum Breakdown Voltage (V) | 9 (V) |
| Direction Type | Uni-Directional |
| Maximum Operating Temperature | +85 °C |
| Esd Protection | Yes |
| Height | 0.75 (mm) |
| Width | 2.6 (mm) |
| Length | 6.6 (mm) |
| Package Type | SON |
| Number Of Elements Per Chip | 8 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Diode Configuration | Complex Array |
| Pin Count | 15 |
| Peak Pulse Power Dissipation | 25 (W) |
| Test Current (A) | 1 (mA) |
Inventory for the TPD8S009DSMR by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,453
|
|
Visit Site | |
|
★ Featured
|
16,400
|
425 x $0.71
|
Visit Site | |
| Arrow Electronics |
2,923
|
|
Visit Site | |
| Texas Instruments |
167,796
|
|
Visit Site | |
| Verical |
2,923
|
|
Visit Site |
No issues have been reported for the TPD8S009DSMR
