TPS1120D
Dual P-channel Enhancemenent-Mode MOSFET
Availability: In Stock
Package Type: SOIC-8
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPS1120D by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

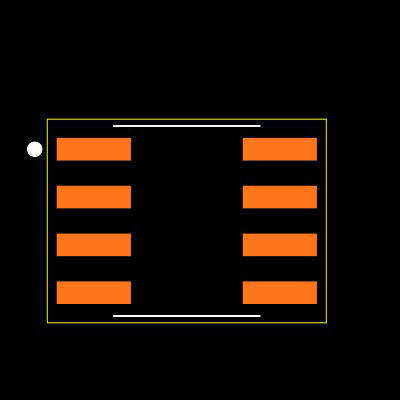

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPS1120D
| Part Name | TPS1120D |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 8 |
| Maximum Drain Source Voltage (V) | 15 V |
| Width | 3.91 (mm) |
| Maximum Continuous Drain Current (A) | 1.17 A |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 840 mW |
| Channel Type | P |
| Maximum Gate Source Voltage (V) | -15 V, +2 V |
| Length | 4.9 (mm) |
| Transistor Material | Si |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage (V) | 1.5 (V) |
| Package Type | SOIC |
| Number Of Elements Per Chip | 2 |
| Minimum Operating Temperature | -40 °C |
| Minimum Gate Threshold Voltage (V) | 1 (V) |
| Typical Gate Charge Vgs | 5.45 nC @ 10 V |
| Height | 1.58 (mm) |
| Maximum Operating Temperature | +125 °C |
| Maximum Drain Source Resistance | 400 mΩ |
| Transistor Configuration | Isolated |
Inventory for the TPS1120D by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,274
|
179 x $1.68
|
Visit Site | |
|
★ Featured
|
4,500
|
205 x $1.47
|
Visit Site | |
| Arrow Europe |
375
|
75 x $1.18
|
Visit Site | |
| Texas Instruments |
2,840
|
|
Visit Site | |
| Verical |
934
|
|
Visit Site |
No issues have been reported for the TPS1120D
