TPS54334DDA
4.2V to 28V Input voltage, 3A Output current Synchronous buck Converter with 570kHz fixed frequency
Availability: In Stock
Package Type: HSOIC-8
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPS54334DDA by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

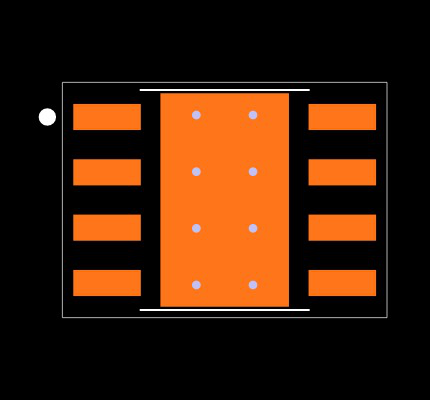

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPS54334DDA
| Part Name | TPS54334DDA |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Minimum Input Voltage (V) | 4.2 V |
| Dimensions | 5 x 4 x 1.55 (mm) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Output Type | Adjustable |
| Maximum Switching Frequency | 684 kHz |
| Switching Regulator | Yes |
| Width | 4 (mm) |
| Length | 5 (mm) |
| Package Type | SO PowerPAD |
| Regulator Function | Step Down |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage (V) | 0.8 V |
| Height | 1.55 (mm) |
| Maximum Output Current (A) | 3 (A) |
| Pin Count | 8 |
| Maximum Input Voltage (V) | 28 V |
| Maximum Output Voltage (V) | 24 V |
Inventory for the TPS54334DDA by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Texas Instruments |
131,965
|
|
Visit Site |
No issues have been reported for the TPS54334DDA
If you experienced any issues with the symbol or footprint, please report it.
