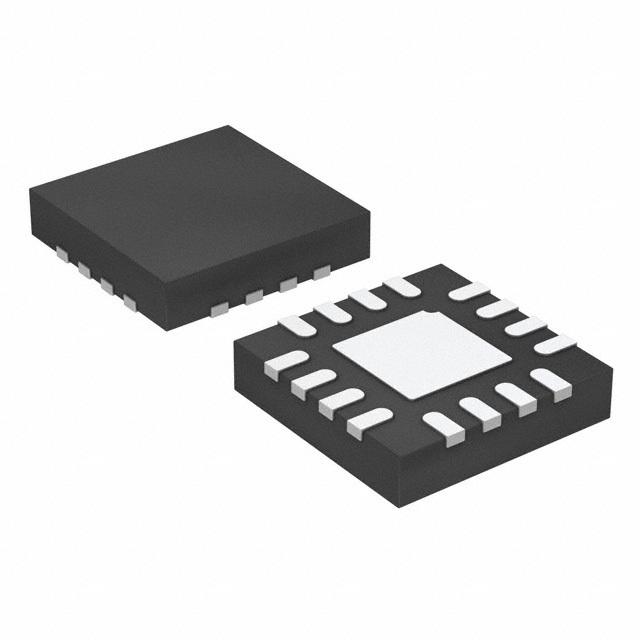

TPS55340RTET
5-A, 40-V, wide VIN boost, flyback, & SEPIC converter
Availability: In Stock
Package Type: WQFN-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPS55340RTET by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
Symbol
No web preview
This Symbol is Available for

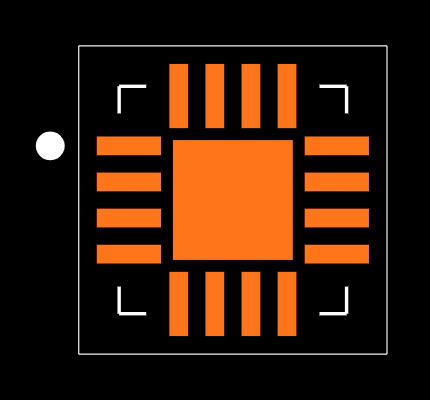

Footprint
No web preview
This Footprint is Available for

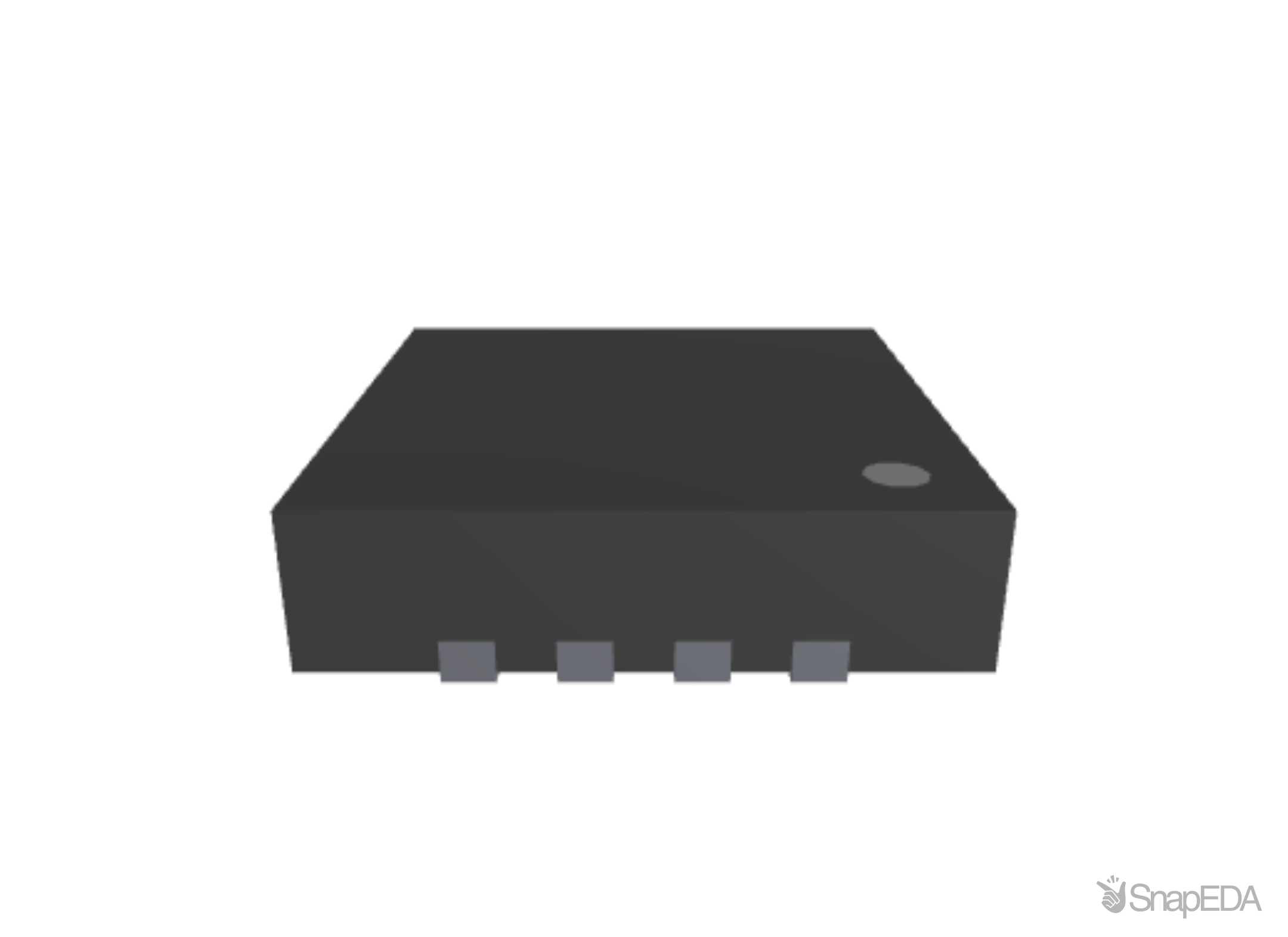

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPS55340RTET
| Part Name | TPS55340RTET |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Converter Type | Step Up |
| Minimum Input Voltage (V) | 2.9 V |
| Dimensions | 3.15 x 3.15 x 0.72 (mm) |
| Mounting Type | Surface Mount |
| Maximum Output Current (A) | 5 (A) |
| Output Type | Adjustable |
| Maximum Switching Frequency | 1480 kHz |
| Width | 3.15 (mm) |
| Length | 3.15 (mm) |
| Package Type | WQFN |
| Switching Regulator | Yes |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage (V) | 3 V |
| Height | 0.72 (mm) |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 16 |
| Maximum Input Voltage (V) | 32 V |
| Maximum Output Voltage (V) | 38 V |
Inventory for the TPS55340RTET by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,221
|
|
Visit Site | |
|
★ Featured
|
38,120
|
780 x $0.39
|
Visit Site | |
| Texas Instruments |
1,777
|
|
Visit Site |
No issues have been reported for the TPS55340RTET
