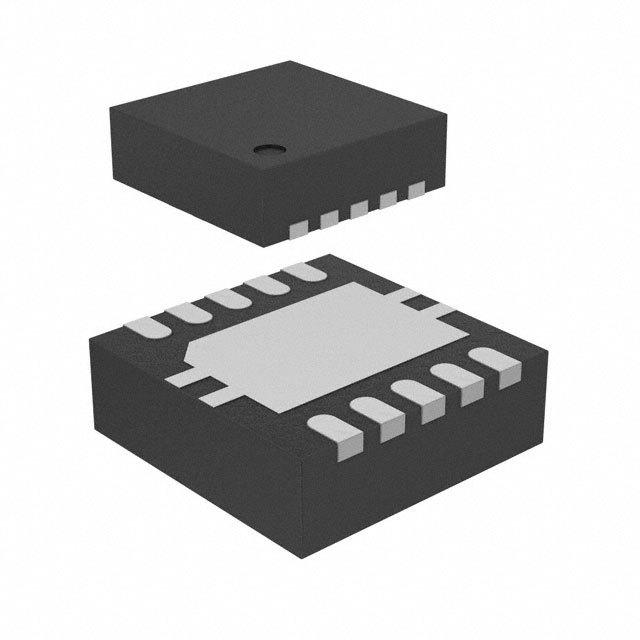

TPS61200DRCT
0.3-V input voltage, adjustable ouput voltage boost converter with 1.3-A switches, 3-mm x 3-mm QFN
Availability: In Stock
Package Type: VSON-10
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPS61200DRCT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPS61200DRCT
| Part Name | TPS61200DRCT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Load Regulation | 0.1 % |
| Dimensions | 3 x 3 x 0.9 (mm) |
| Mounting Type | Surface Mount |
| Maximum Output Current (A) | 600 (mA) |
| Minimum Output Voltage (V) | 1.8 V |
| Line Regulation | 0.1 % |
| Output Type | Adjustable |
| Maximum Switching Frequency | 1650 kHz |
| Switching Regulator | Yes |
| Width | 3 (mm) |
| Length | 3 (mm) |
| Package Type | SON |
| Regulator Function | Step Up |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage (V) | 0.3 V |
| Height | 0.9 (mm) |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 10 |
| Maximum Input Voltage (V) | 5.5 V |
| Maximum Output Voltage (V) | 5.5 V |
Inventory for the TPS61200DRCT by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Texas Instruments |
45,813
|
|
Visit Site |
No issues have been reported for the TPS61200DRCT
