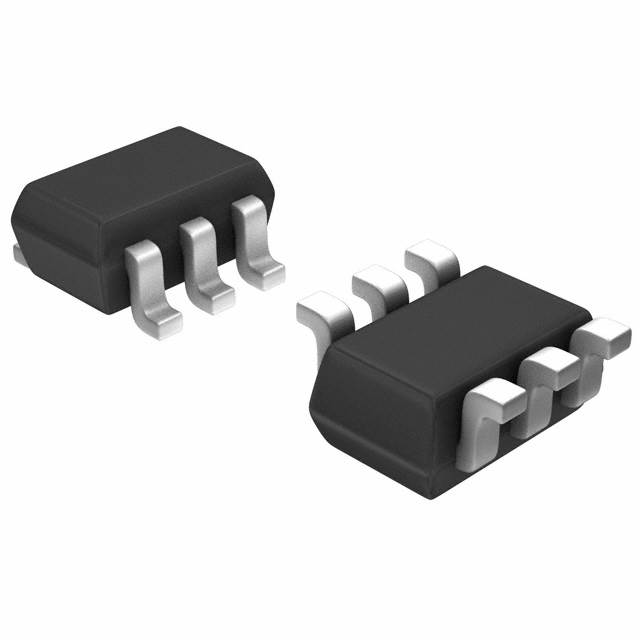

TPS61221DCKT
0.7-VIN, 3.3-V fixed output voltage boost converter with 5.5-μA quiescent current
Availability: In Stock
Package Type: SOT-SC70-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPS61221DCKT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
Symbol
No web preview
This Symbol is Available for

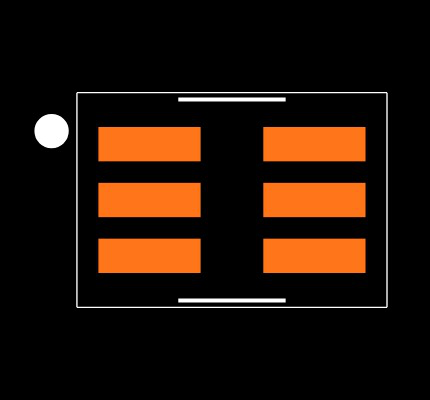

Footprint
No web preview
This Footprint is Available for

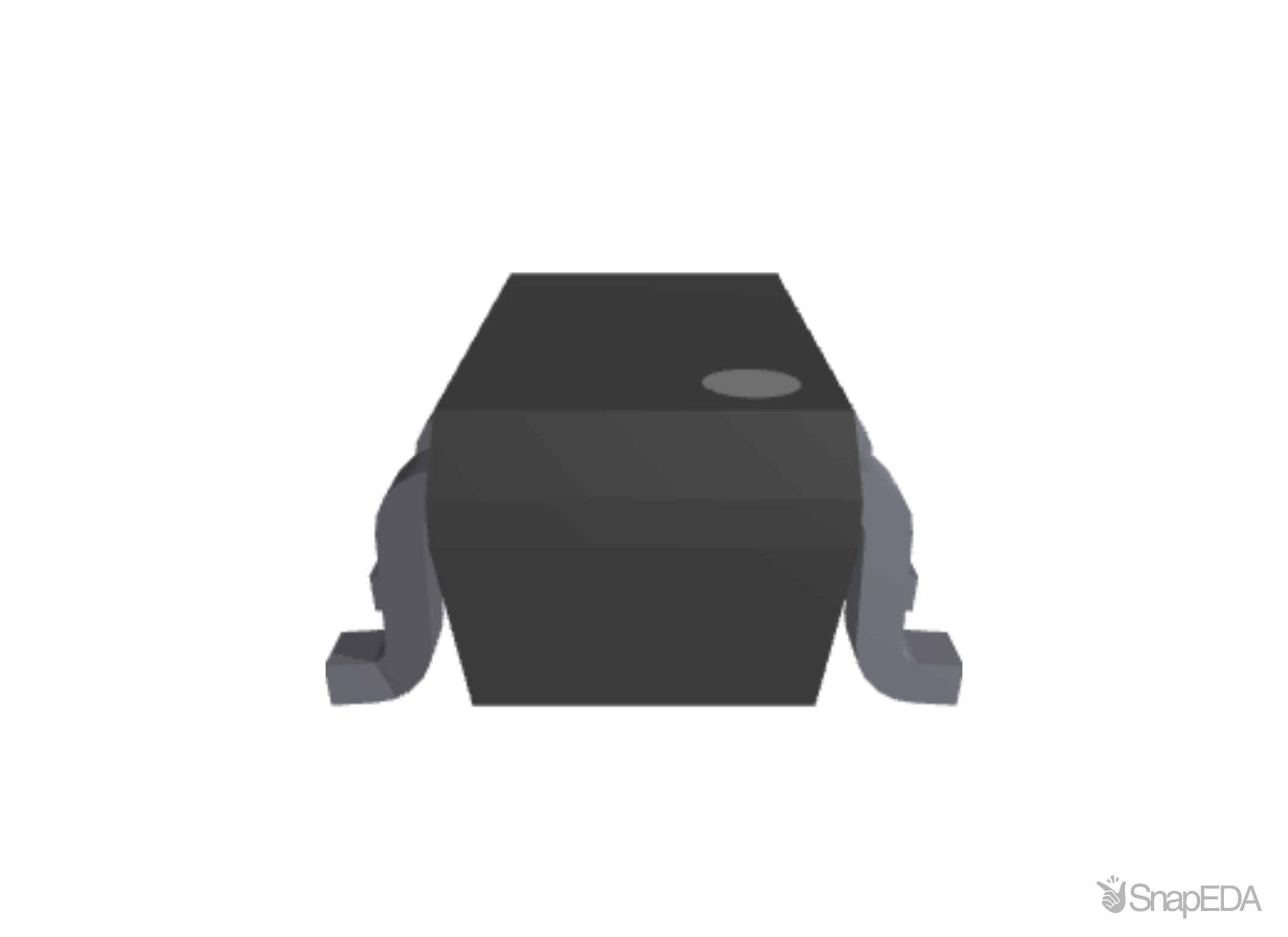

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPS61221DCKT
| Part Name | TPS61221DCKT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 6 |
| Number Of Outputs | 1 |
| Load Regulation | 0.5 % |
| Dimensions | 2.15 x 1.4 x 1 (mm) |
| Mounting Type | Surface Mount |
| Maximum Output Voltage (V) | 3.41 V |
| Maximum Operating Temperature | +85 °C |
| Output Type | Fixed |
| Maximum Switching Frequency | 2000 kHz |
| Width | 1.4 (mm) |
| Length | 2.15 (mm) |
| Height | 1 (mm) |
| Package Type | SC-70 |
| Switching Regulator | Yes |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage (V) | 3.2 V |
| Minimum Input Voltage (V) | 0.7 V |
| Maximum Output Current (A) | 400 (mA) |
| Regulator Function | Step Up |
| Maximum Input Voltage (V) | 5.5 V |
| Line Regulation | 0.5 % |
