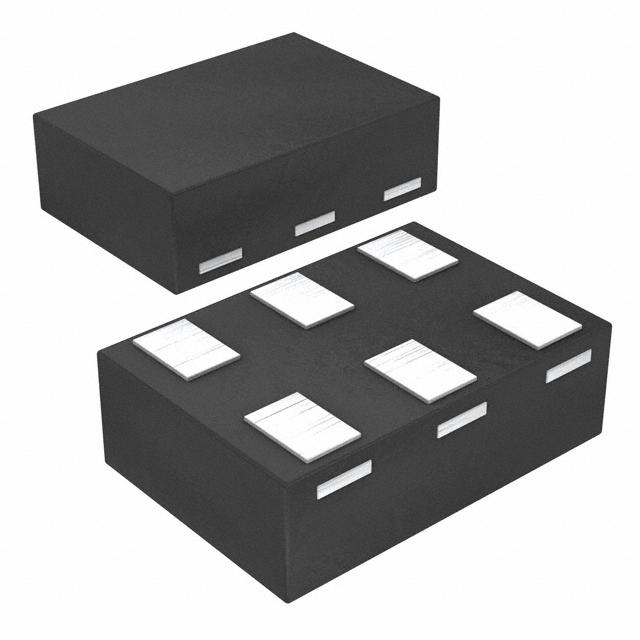

TPS62236DRYT
2 MHz Ultra Small Step Down Converter with DCS-Control in 1x1.5 SON Package
Availability: In Stock
Package Type: USON-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPS62236DRYT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for

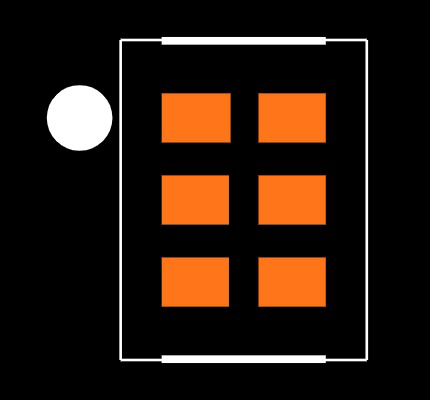

Footprint
No web preview
This Footprint is Available for

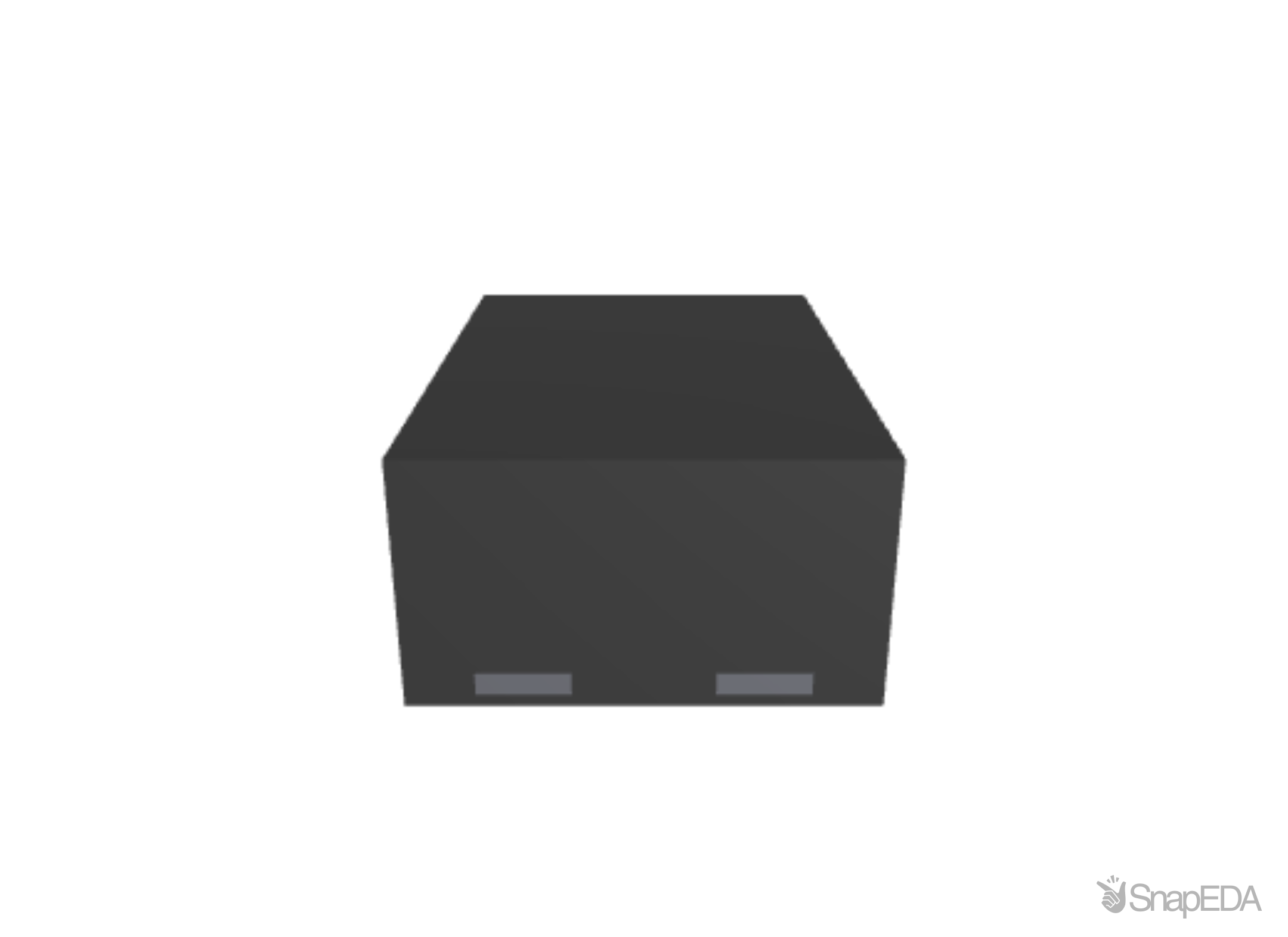

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPS62236DRYT
| Part Name | TPS62236DRYT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 1 |
| Load Regulation | 0.001 %/mA |
| Dimensions | 1.5 x 1.05 x 0.55 (mm) |
| Mounting Type | Surface Mount |
| Width | 1.05 (mm) |
| Maximum Operating Temperature | +85 °C |
| Line Regulation | 0.015 %/V |
| Output Type | Fixed |
| Maximum Switching Frequency | 2 MHz |
| Efficiency | 94 (%) |
| Length | 1.5 (mm) |
| Height | 0.55 (mm) |
| Package Type | SON |
| Maximum Output Voltage (V) | 1.85 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage (V) | 2.05 V |
| Maximum Output Current (A) | 500 (mA) |
| Pin Count | 6 |
| Maximum Input Voltage (V) | 6 V |
| Regulator Function | Buck |
Inventory for the TPS62236DRYT by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,997
|
|
Visit Site | |
|
★ Featured
|
2,468
|
|
Visit Site | |
|
★ Featured
|
150,000
|
435 x $0.80
|
Visit Site | |
| Texas Instruments |
130,255
|
|
Visit Site |
No issues have been reported for the TPS62236DRYT
If you experienced any issues with the symbol or footprint, please report it.
