TPS65218B1RSLT
Power Management IC (PMIC) for ARM Cortex-A8/A9 SoCs and FPGA 48-VQFN -40 to 105
Availability: In Stock
Package Type: VQFN(48)-49
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPS65218B1RSLT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

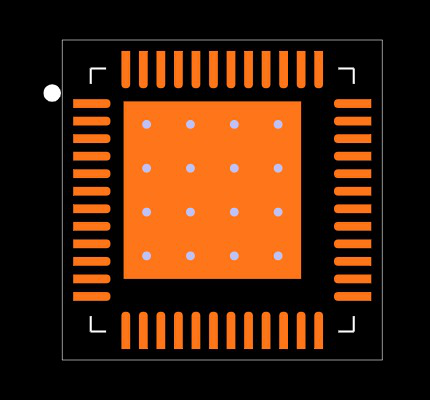

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPS65218B1RSLT
| Part Name | TPS65218B1RSLT |
| Manufacturer | Texas Instruments |
| RoHS | True |
| Life Cycle Status | Not Recommended for New Designs |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Outputs | 6 |
| Minimum Input Voltage (V) | 2.2 V |
| Dimensions | 7.2 x 7.2 x 1.05 (mm) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +105 °C |
| Maximum Switching Frequency | 2400 kHz |
| Width | 7.2 (mm) |
| Length | 7.2 (mm) |
| Package Type | VQFN |
| Maximum Output Voltage (V) | 3.5 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage (V) | 0.85 V |
| Height | 1.05 (mm) |
| Maximum Output Current (A) | 1.8 (A) |
| Pin Count | 48 |
| Maximum Input Voltage (V) | 5.5 V |
