TPS65270RGET

Name: TPS65270RGET
Brand: Texas Instruments

2 Buck Converter with 4.5V to 16V Input Voltage, 2A/3A Output Current

Availability: In Stock

Package Type: QFN-24

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the TPS65270RGET by Texas Instruments and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

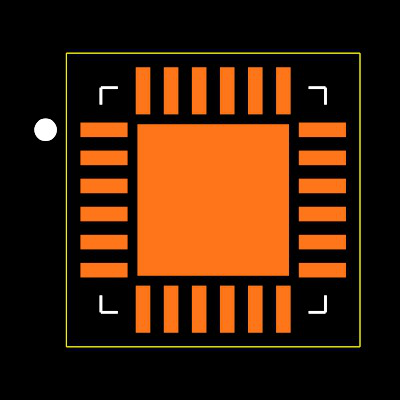

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

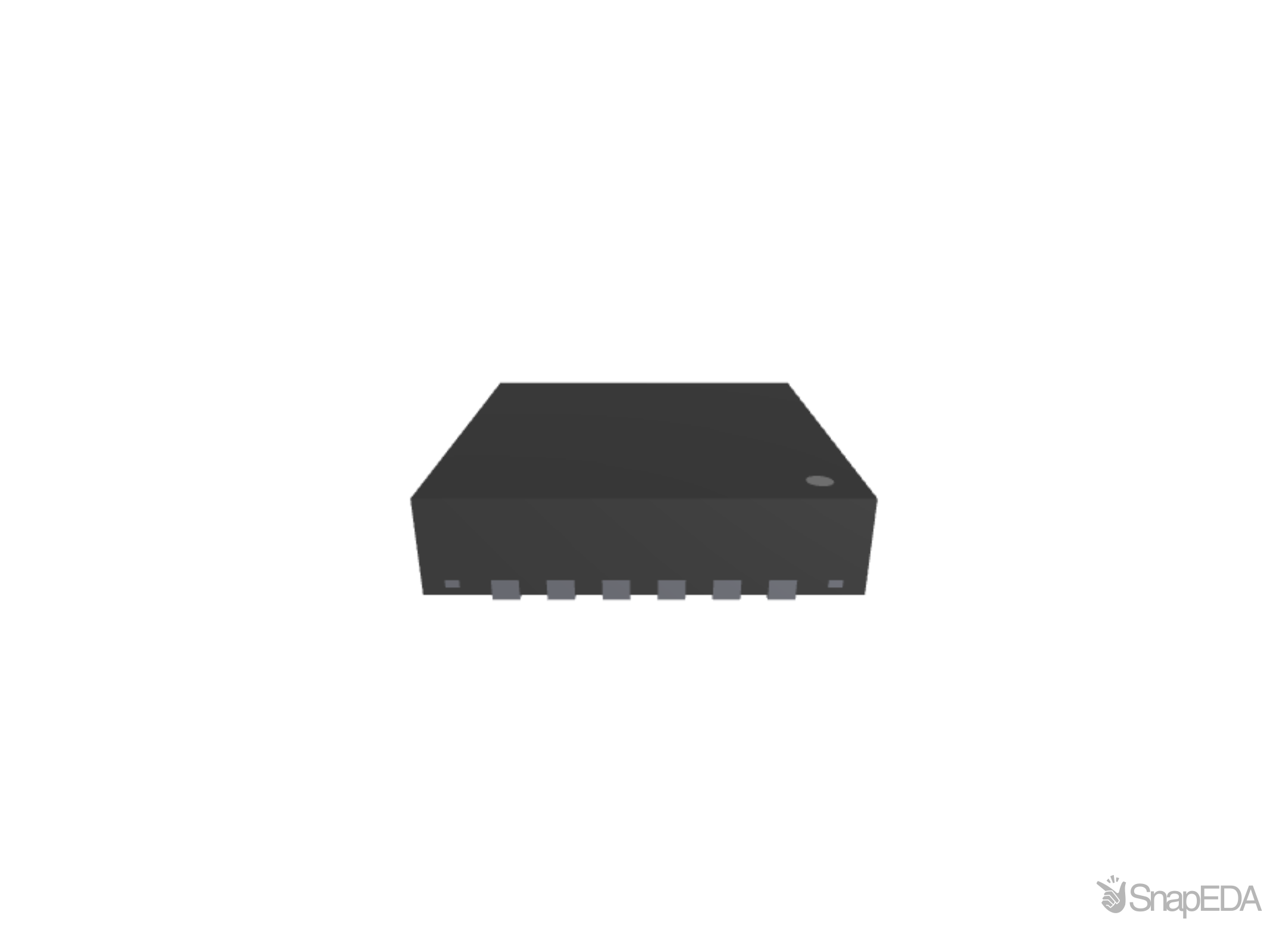

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the TPS65270RGET

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the TPS65270RGET

Part Name	TPS65270RGET
Manufacturer	Texas Instruments
MOQ	1
RoHS	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Polarity	Positive
Dimensions	4.15 x 4.15 x 1 (mm)
Width	4.15 (mm)
Reference Voltage (V)	0.8 (V)
Accuracy	±1 (%)
Number Of Outputs	2
Load Regulation	0.4 %/V
Output Type	Adjustable
Package Type	QFN
Maximum Operating Temperature	+125 °C
Quiescent Current (A)	1 (mA)
Line Regulation	0.5 %/V
Length	4.15 (mm)
Pin Count	24
Mounting Type	Surface Mount
Height	1 (mm)
Output Voltage (V)	0.8 → 15 V
Minimum Operating Temperature	-40 °C
Power Rating	3.07 (W)
Maximum Output Current (A)	3 (A)
Maximum Input Voltage (V)	18 V
Minimum Input Voltage (V)	4.5 V

Inventory for the TPS65270RGET by Texas Instruments from major distributors.

Supplier	Quantity	Price	Purchase
Texas Instruments	13,164			Visit Site
