TPS71501DCKR
50mA 24V ultra-low-IQ low-dropout (LDO) voltage regulator
Availability: In Stock
Package Type: SC70-5
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the TPS71501DCKR by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for

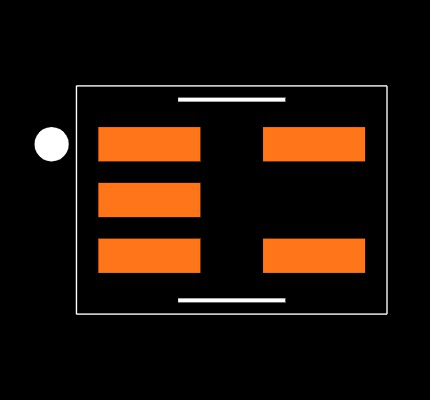

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the TPS71501DCKR
| Part Name | TPS71501DCKR |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Positive |
| Dimensions | 2 x 1.25 x 0.9 (mm) |
| Regulator Type | Low Dropout Voltage |
| Width | 1.25 (mm) |
| Accuracy | ±4 (%) |
| Number Of Outputs | 1 |
| Load Regulation | 22 mV |
| Output Type | Adjustable |
| Package Type | SC-70 |
| Maximum Operating Temperature | +125 °C |
| Quiescent Current (A) | 0.0032 (mA) |
| Line Regulation | 20 mV |
| Length | 2 (mm) |
| Pin Count | 5 |
| Mounting Type | Surface Mount |
| Height | 0.9 (mm) |
| Output Voltage (V) | 1.2 → 15 V |
| Minimum Operating Temperature | -40 °C |
| Power Rating | 0.32 (W) |
| Maximum Output Current (A) | 50 (mA) |
| Maximum Input Voltage (V) | 24 V |
| Minimum Input Voltage (V) | 2.5 V |
